Seco Tools 10001141 | MTH-M8X1.25ISO6HX-BC-S101 M8 Thread Size x 0.320" Diameter x 0.315" Shank x 3.604" OAL 15 Degree Helix Angle 3 Flute ACN Coated HSS-E-PM Spiral Flute Tap

$54.03
Brand:
Seco Tools
Thread Size:
M8
Number of Flutes:
3
Material:
HSS-E-PM
Finish/Coating:
ACN
Overall Length (Inch):
3-29/48"
Overall Length (Decimal Inch):
3.6040"
Overall Length (mm):
91.55mm
interval quantity:
1
SKU:
17993778
Weight:
0.02 LBS
Shipping:
Calculated at Checkout
Seco Tools 10001141 | MTH-M8X1.25ISO6HX-BC-S101 M8 Thread Size x 0.320" Diameter x 0.315" Shank x 3.604" OAL 15 Degree Helix Angle 3 Flute ACN Coated HSS-E-PM Spiral Flute Tap

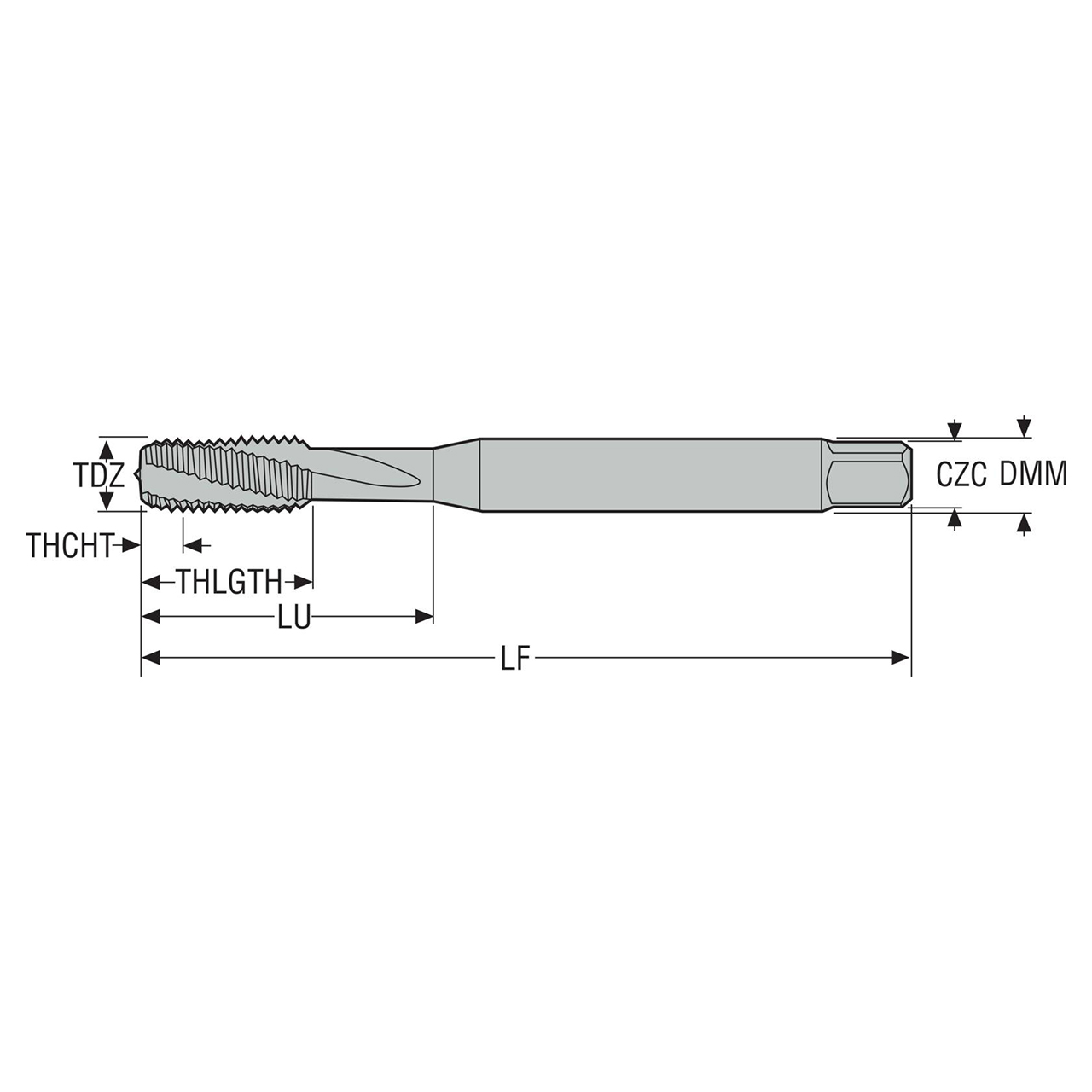

Product Specifications
Manufacturer Part Number10001141
Thread Diameter (Decimal Inch)0.320"
Thread Diameter (mm)8.14mm
Threading Chamfer Length (Decimal Inch)0.138"
Threading Chamfer Length (mm)3.51mm
Tap Chamfer Length (Decimal Inch)0.138"
Tap Chamfer Length (mm)3.51mm
Connection Diameter Machine Side (Decimal Inch)0.315"
Connection Diameter Machine Side (mm)8.00mm
Shank Diameter (Decimal Inch)0.315"
Shank Diameter (mm)8.00mm
Functional Length (Decimal Inch)3.405"
Functional Length (mm)86.49mm
Usable Length (Decimal Inch)1.161"
Usable Length (mm)29.50mm
Overall Length (Decimal Inch)3.604"
Overall Length (mm)91.55mm
Thread Length (Decimal Inch)0.709"
Thread Length (mm)18.00mm
Thread Diameter SizeM8
Recommended Premachined Hole Diameter (Decimal Inch)0.268"
Recommended Premachined Hole Diameter (mm)6.80mm
Connection Size Code8.00X6.20
Connection Size Code Machine Side8.00X6.20
Maximum Premachined Hole Diameter (Decimal Inch)0.272"
Maximum Premachined Hole Diameter (mm)6.91mm
Minimum Thread Pitch (Decimal Inch)0.049"
Minimum Thread Pitch (mm)1.25mm
Maximum Thread Pitch (Decimal Inch)0.049"
Maximum Thread Pitch (mm)1.25mm
Flute Helix Angle (Degree)15 Degree
Number of Flute3
Shank TypeCylindrical
Thread Tolerance Class6HX
Threading Chamfer TypeC
Thread Form TypeM
Cutting DirectionRight Hand
Cutting Geometry TypeISO-S
Cutting Geometry Type TechnicalSpiral
MaterialHSS-E-PM
CoatingACN
Product TypeSpiral Flute Tap
