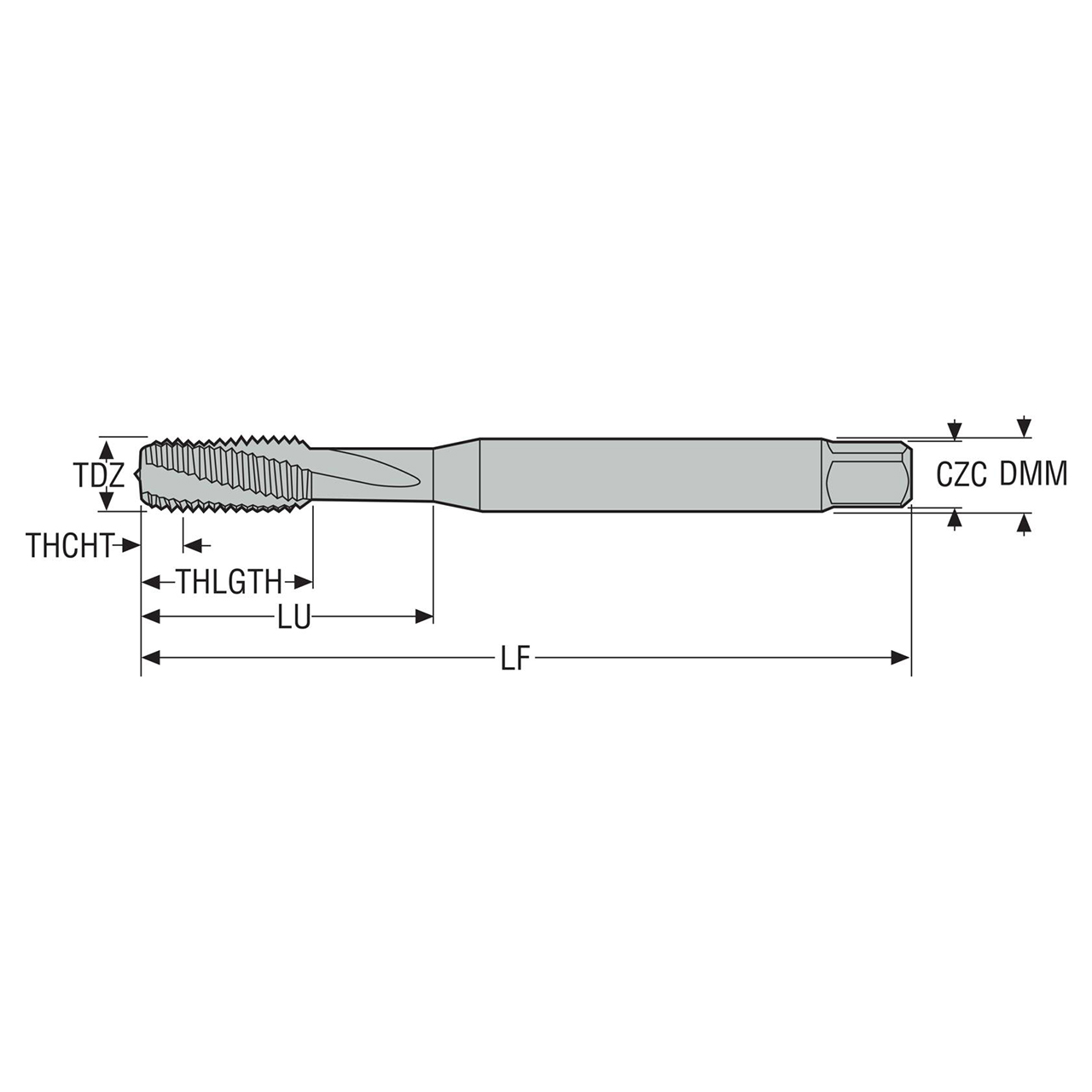

| Manufacturer Part Number | 10001207 |
| Thread Diameter (Decimal Inch) | 0.321" |
| Thread Diameter (mm) | 8.15mm |
| Threading Chamfer Length (Decimal Inch) | 0.138" |
| Threading Chamfer Length (mm) | 3.51mm |
| Tap Chamfer Length (Decimal Inch) | 0.138" |
| Tap Chamfer Length (mm) | 3.51mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.315" |
| Connection Diameter Machine Side (mm) | 8.00mm |
| Shank Diameter (Decimal Inch) | 0.315" |
| Shank Diameter (mm) | 8.00mm |
| Functional Length (Decimal Inch) | 3.405" |
| Functional Length (mm) | 86.49mm |
| Usable Length (Decimal Inch) | 1.161" |
| Usable Length (mm) | 29.50mm |
| Overall Length (Decimal Inch) | 3.604" |
| Overall Length (mm) | 91.55mm |
| Thread Length (Decimal Inch) | 0.709" |
| Thread Length (mm) | 18.00mm |
| Thread Diameter Size | MJ8X1.25 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.272" |
| Recommended Premachined Hole Diameter (mm) | 6.90mm |
| Connection Size Code | 8.00X6.20 |
| Connection Size Code Machine Side | 8.00X6.20 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.275" |
| Maximum Premachined Hole Diameter (mm) | 6.99mm |
| Minimum Thread Pitch (Decimal Inch) | 0.049" |
| Minimum Thread Pitch (mm) | 1.25mm |
| Maximum Thread Pitch (Decimal Inch) | 0.049" |
| Maximum Thread Pitch (mm) | 1.25mm |
| Flute Helix Angle (Degree) | 15 Degree |
| Number of Flute | 3 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 4H |
| Threading Chamfer Type | C |
| Thread Form Type | MJ |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | ISO-S |
| Cutting Geometry Type Technical | Spiral |
| Material | HSS-E-PM |
| Coating | ACN |

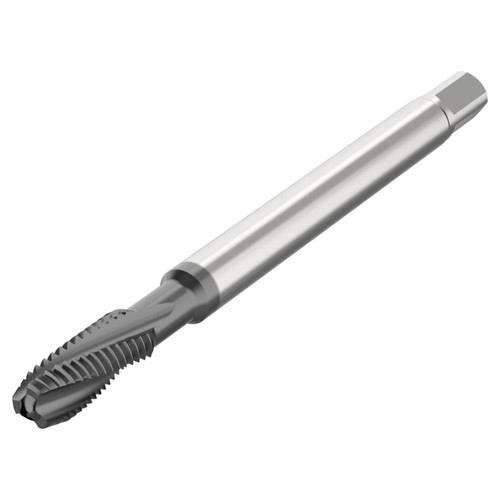

| Product Type | Spiral Flute Tap |
