Product Specifications
| Manufacturer Part Number | 10070169 |
| Minimum Cutting Diameter Internal (Decimal Inch) | 3.937" |
| Minimum Cutting Diameter Internal (mm) | 100.00mm |
| Minimum Cutting Diameter Internal 3 (Decimal Inch) | 3.937" |
| Minimum Cutting Diameter Internal 3 (mm) | 100.00mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 1.575" |
| Contact Surface Diameter Machine Side (mm) | 40.00mm |
| Functional Length (Decimal Inch) | 2.165" |
| Functional Length (mm) | 55.00mm |
| Head Length (Decimal Inch) | 1.378" |
| Head Length (mm) | 35.00mm |
| Maximum Radial Cutting Depth (Decimal Inch) | 0.055" |
| Maximum Radial Cutting Depth (mm) | 1.40mm |
| Maximum Cutting Depth (Decimal Inch) | 0.325" |
| Maximum Cutting Depth (mm) | 8.25mm |
| Tool Cutting Edge Angle (Degree) | 93 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 121.6 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 93 Degree |
| Inclination Angle (Degree) | -6 Degree |
| Rake Radial Angle (Degree) | -6.3 Degree |
| Rake Orthogonal Angle (Degree) | -6 Degree |
| Maximum Ramping Angle (Degree) | 31.6 Degree |
| Cutting Direction | Right Hand |
| Coolant Entry Style Code | 1 |
| Coolant Pressure | Bar |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 10 |
| Data Chip Provision | 1 |
| Insert Clamping System | D |
| Shank Type | Seco-Capto |
| Insert Shape Code | D |

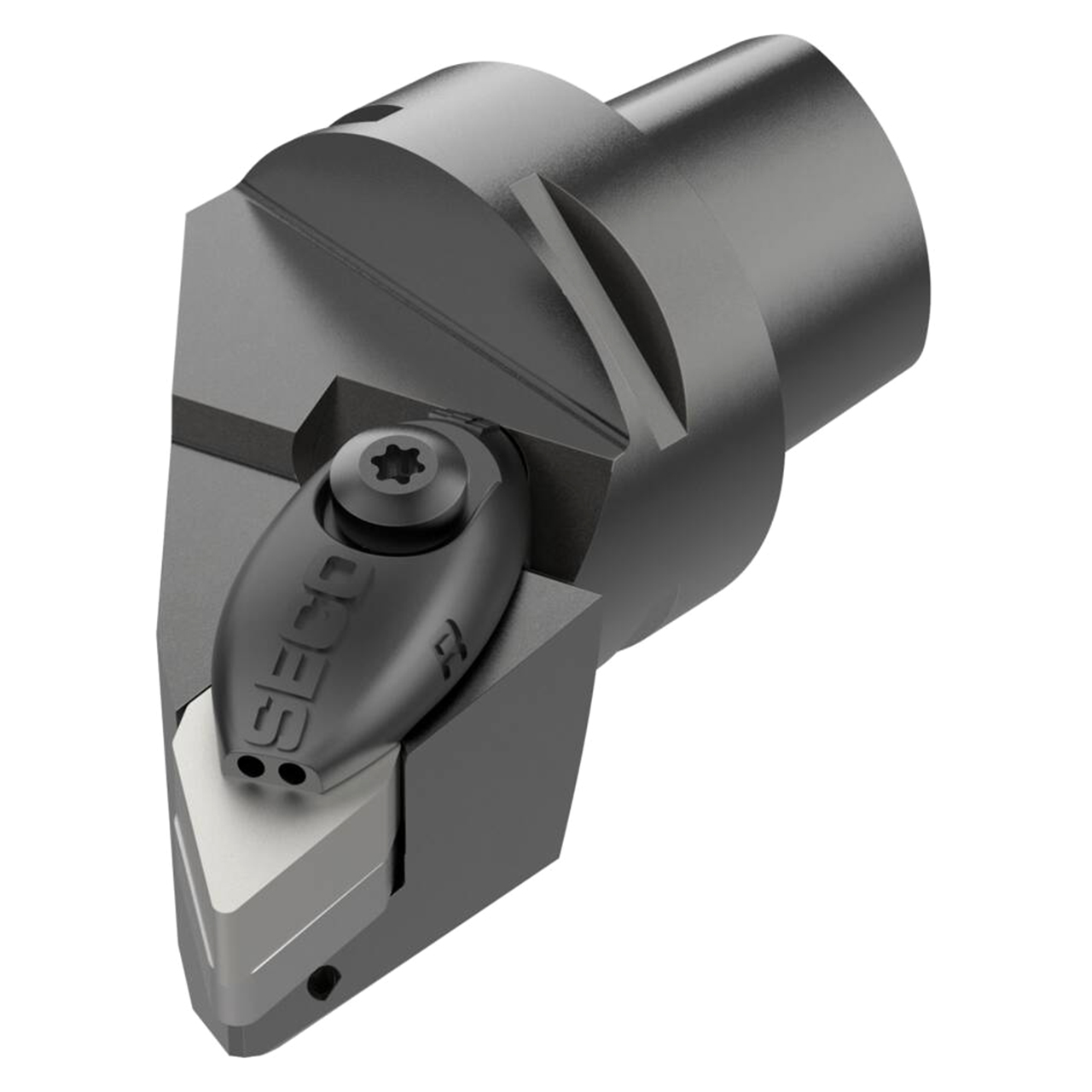

| Product Type | Modular Turning Head |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Cutting Direction:
Right Hand
Head Length (Inch):
1-3/8"
Head Length (Decimal Inch):
1.3780"
Head Length (mm):
35.00mm
