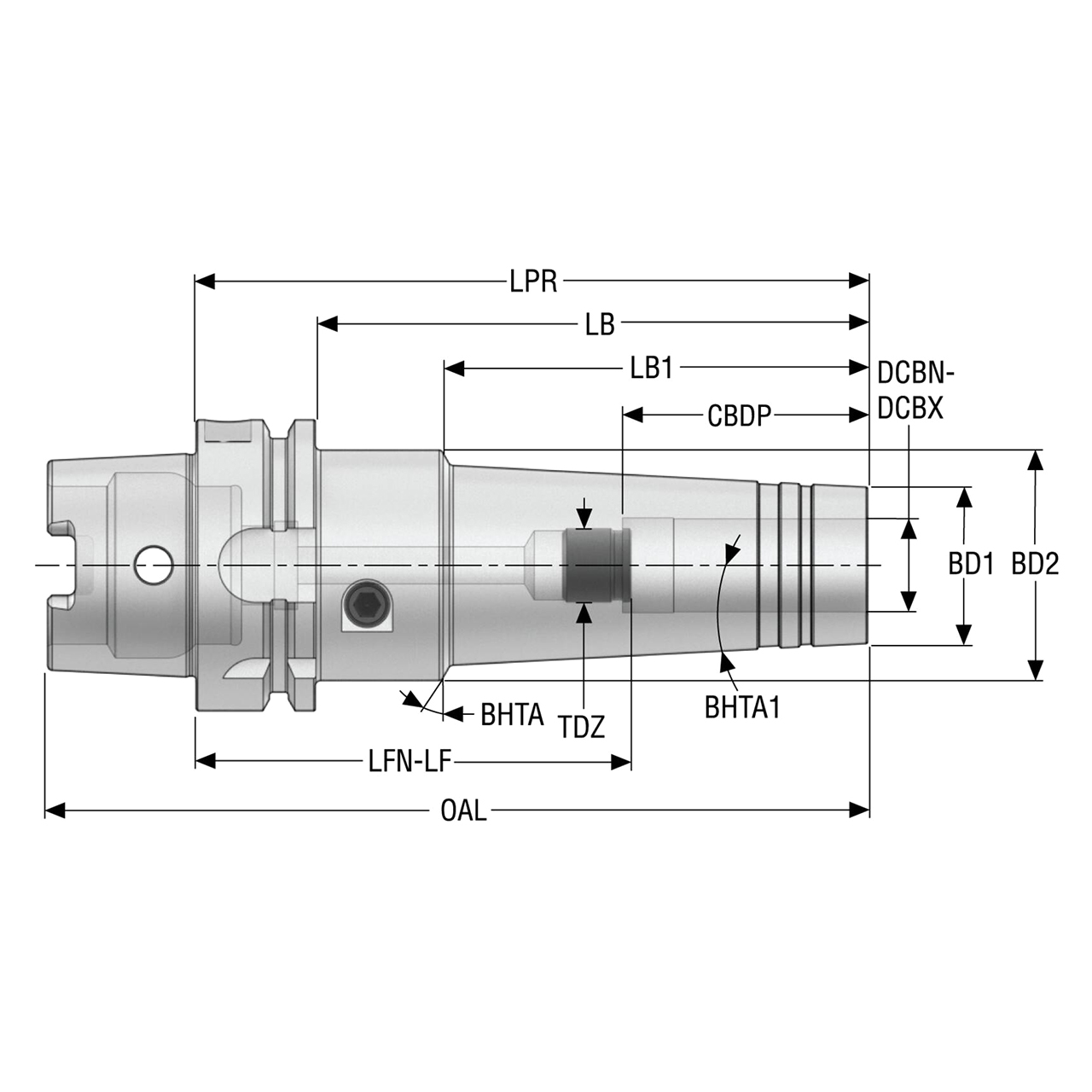

Product Specifications
| Manufacturer Part Number | 10137328 |
| Connection Bore Diameter (Decimal Inch) | 0.236" |
| Connection Bore Diameter (mm) | 6.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.236" |
| Minimum Connection Bore Diameter (mm) | 6.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.236" |
| Maximum Connection Bore Diameter (mm) | 6.00mm |
| Body Diameter 1 (Decimal Inch) | 0.787" |
| Body Diameter 1 (mm) | 20.00mm |
| Body Diameter 2 (Decimal Inch) | 1.969" |
| Body Diameter 2 (mm) | 50.00mm |
| Thread Diameter Size | M5x0.8 |
| Connection Bore Depth (Decimal Inch) | 0 |
| Connection Bore Depth (mm) | 37.00mm |
| Body Length (Decimal Inch) | 4.685" |
| Body Length (mm) | 119.00mm |
| Body Length 1 (Decimal Inch) | 3.543" |
| Body Length 1 (mm) | 90.00mm |
| Functional Length (Decimal Inch) | 4.646" |
| Functional Length (mm) | 118.00mm |
| Minimum Functional Length (Decimal Inch) | 4.252" |
| Minimum Functional Length (mm) | 108.00mm |
| Protruding Length (Decimal Inch) | 5.709" |
| Protruding Length (mm) | 145.00mm |
| Overall Length (Decimal Inch) | 6.969" |
| Overall Length (mm) | 177.00mm |
| Body Half Taper Angle Degree) | 30 Degree |
| Data Chip Provision | 1 |
| Machine Side Group | HSK-A & HSK-T/A |

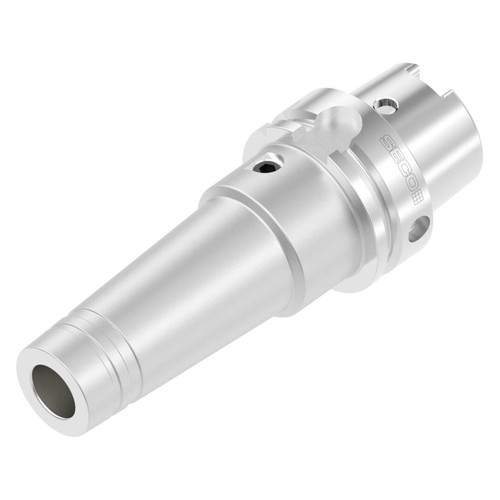

| Product Type | Hydraulic Chuck |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Body Diameter (Inch):
48/61"
Body Diameter (Decimal Inch):
0.7870"
Body Diameter (mm):
20.00mm
Overall Length (Inch):
6-94/97"
Overall Length (Decimal Inch):
6.9690"
Overall Length (mm):
177.00mm
