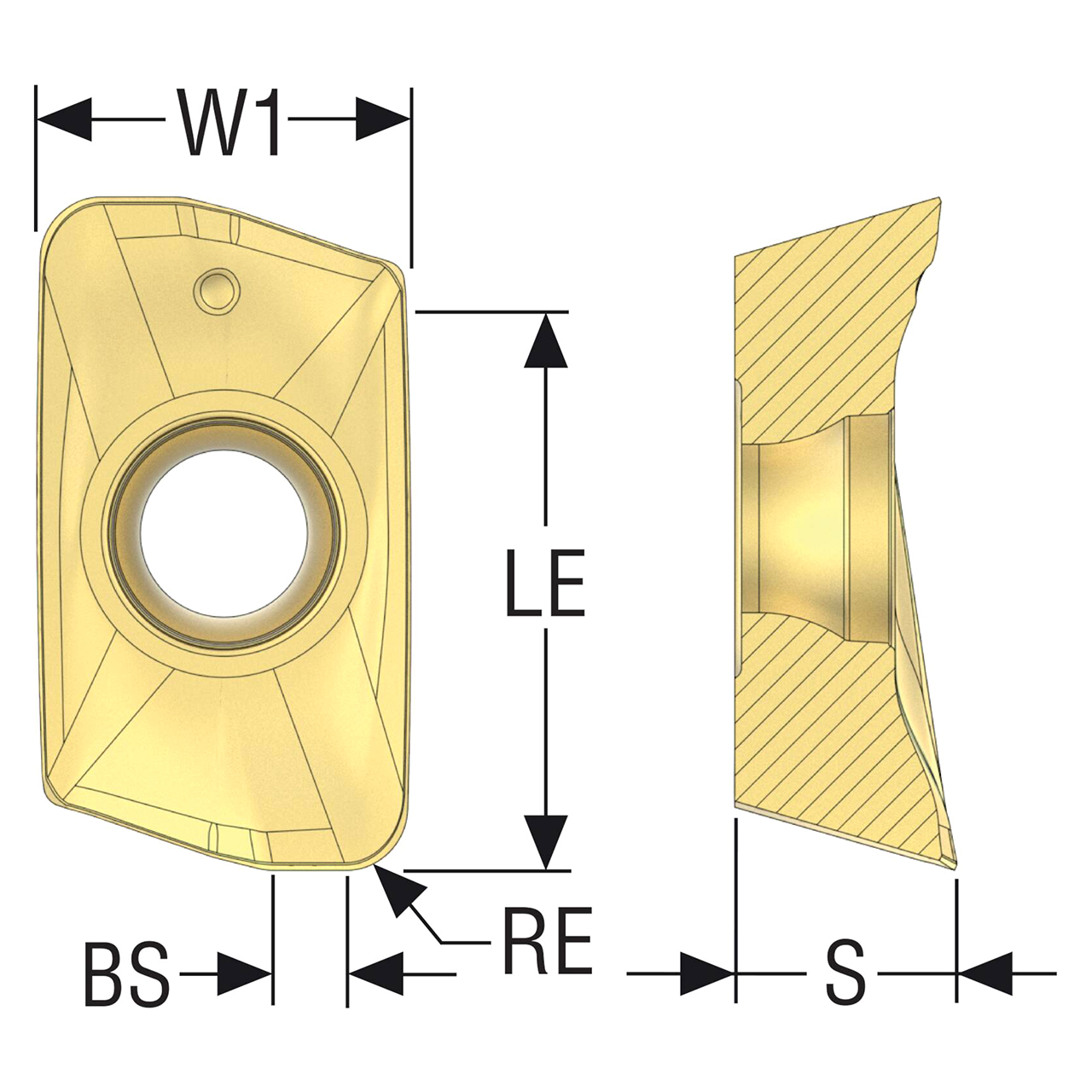

Seco Tools 10198802 | XOMX180612TR-M14 1.20mm Corner Radius x 6.40mm Thickness 2 Cutting Edge Carbide Milling Insert

$26.03
Brand:
Seco Tools
Material:
Carbide
Width (Inch):
41/93"
Width (Decimal Inch):
0.4409"
Width (mm):
11.20mm
Thickness (Inch):
1/4"
Thickness (Decimal Inch):
0.2520"
Thickness (mm):
6.40mm
interval quantity:
1
SKU:
23295153
Weight:
0.02 LBS
Shipping:
Calculated at Checkout
Seco Tools 10198802 | XOMX180612TR-M14 1.20mm Corner Radius x 6.40mm Thickness 2 Cutting Edge Carbide Milling Insert

Product Specifications
Manufacturer Part Number10198802
Fixing Hole Diameter (mm)5.00mm
Cutting Edge Effective Length (mm)17.00mm
Wiper Edge Length (mm)2.40mm
Corner Radius (mm)1.20mm
Insert Thickness (mm)6.40mm
Cutting Edge Count2
Clearance Angle Major (Degree)15 Degree
Insert Rake Angle (Degree)15.5 Degree
Insert HandRight Hand
Cutting Geometry TypeM
Cutting Geometry Type TechnicalM14
Pocket Seat Code of The CutterXO.X1806
Insert Size And ShapeXOMX1806
MaterialCarbide
Product TypeMilling Insert
