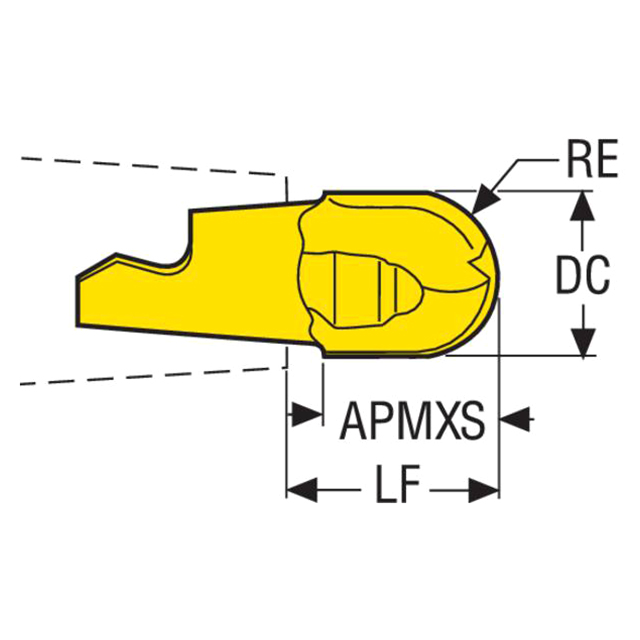

Product Specifications
Manufacturer Part Number | 74052645 |
Cutting Diameter (Decimal Inch) | 0.375" |
Cutting Diameter (mm) | 9.53mm |
Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 0.406" |
Minimum Helical Interpolation Hole Diameter (mm) | 10.30mm |
Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 0.705" |
Maximum Helical Interpolation Hole Diameter (mm) | 17.90mm |
Cutting Edge Effective Length (Decimal Inch) | 0.344" |
Cutting Edge Effective Length (mm) | 8.73mm |
Functional Length (Decimal Inch) | 0.462" |
Functional Length (mm) | 11.74mm |
Maximum Depth of Cut (Decimal Inch) | 0.343" |
Maximum Depth of Cut (mm) | 8.70mm |
Corner Radius (Decimal Inch) | 0.188" |
Corner Radius (mm) | 4.76mm |
Cutting Edge Count | 1 |
Tool Cutting Edge Angle (Degree) | 90 Degree |
Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
Maximum Ramping Angle (Degree) | 15 Degree |
Sphere Angle (Degree) | 180 Degree |
Material | Carbide |
Coating | AlTiN |
Product Type | Profile Milling Tip Insert |

Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Material:
Carbide
Cutting Diameter (Inch):
3/8"
Cutting Diameter (Decimal Inch):
0.3752"
Cutting Diameter (mm):
9.53mm
Maximum Depth of Cut (Inch):
25/73"
Maximum Depth of Cut (Decimal Inch):
0.3425"
Maximum Depth of Cut (mm):
8.70mm
interval quantity:
1
