| Manufacturer Part Number | 00093753 |

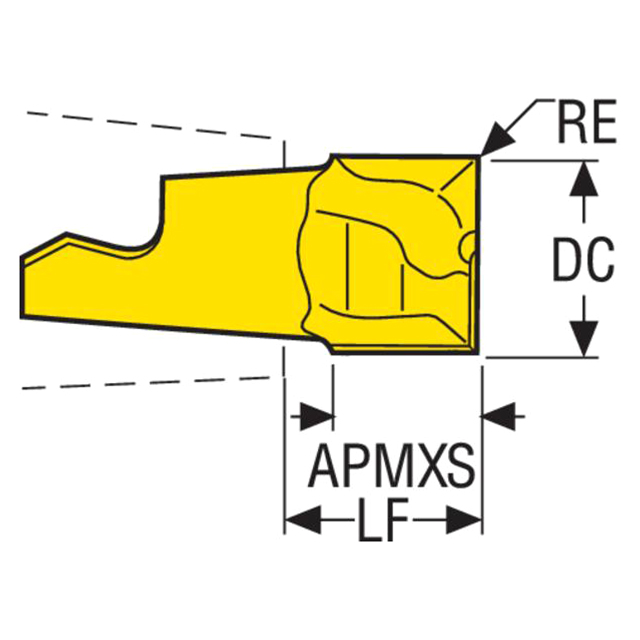

| Cutting Diameter (Decimal Inch) | 0.375" |
| Cutting Diameter (mm) | 9.53mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 0.457" |
| Minimum Helical Interpolation Hole Diameter (mm) | 11.60mm |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 0.677" |
| Maximum Helical Interpolation Hole Diameter (mm) | 17.20mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.260" |
| Cutting Edge Effective Length (mm) | 6.60mm |
| Functional Length (Decimal Inch) | 0.330" |
| Functional Length (mm) | 8.37mm |
| Maximum Depth of Cut (Decimal Inch) | 0.260" |
| Maximum Depth of Cut (mm) | 6.60mm |
| Corner Radius (Decimal Inch) | 0.032" |
| Corner Radius (mm) | 0.80mm |
| Cutting Edge Count | 1 |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Flute Helix Angle (Degree) | 8 Degree |
| Rake Radial Angle (Degree) | 16 Degree |
| Maximum Ramping Angle (Degree) | 15 Degree |
| Material | Carbide |
| Product Type | Slotting Milling Tip Insert |
