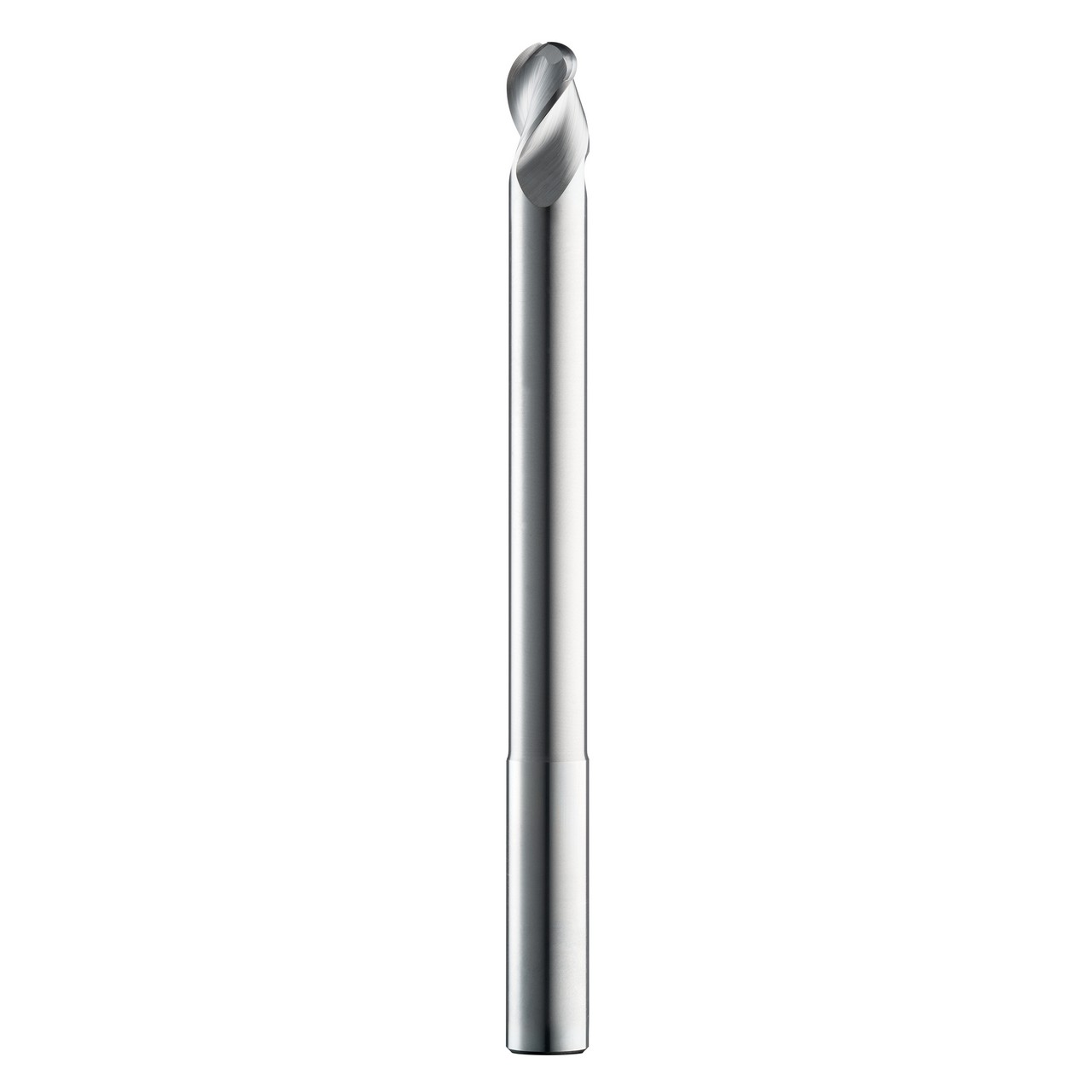

SGS 44615 | 6.0mm Diameter x 6.0mm Shank x 10.0mm LOC x 100mm OAL 2 Flute TiB2 Coated Ball End Mill

$57.72
Brand:
SGS
Number of Flutes:
2
Length of Cut (Inch):
25/64"
Length of Cut (Decimal Inch):
0.3937"
Length of Cut (mm):
10.00mm
Overall Length (Inch):
3-15/16"
Overall Length (Decimal Inch):
3.9370"
Overall Length (mm):
100mm
Shank Diameter (Inch):
15/64"
Shank Diameter (Decimal Inch):
0.2362"
Shank Diameter (mm):
6.00mm
Finish/Coating:
TB
Cutting Direction:
RHC
Helix Angle (Degree):
35 Degree
SKU:
25198988
Weight:
0.09 LBS
Shipping:
Calculated at Checkout

Features:

  • Circular land reduces edge aggressiveness for varied speed and feed rates
  • 2 Flutes effectively manage the large size and volume of chips produced during the aggressive machining process
  • Excellent balance at high speeds and aggressive plunging capability
  • Necked design with blended diameter transitions provide clearance to reach
  • Ball nose design ideal for finishing operations in complex workpieces
  • Recommended for materials ≤ 150 BHN (≤ 7 HRC)

Product Specifications
Cutting Diameter (mm)6.0mm
Shank Diameter (mm)6.0mm
Length of Cut (mm)10.0mm
Overall Length (mm)100mm
Shank Length (mm)90.0mm
Cut of DirectionRHC
Flute TypeSpiral
Reach (mm)54.1mm
Corner Radius (mm)3 mm
Helix Angle35 Degree
CoatingTiB2
Number of Flutes2
