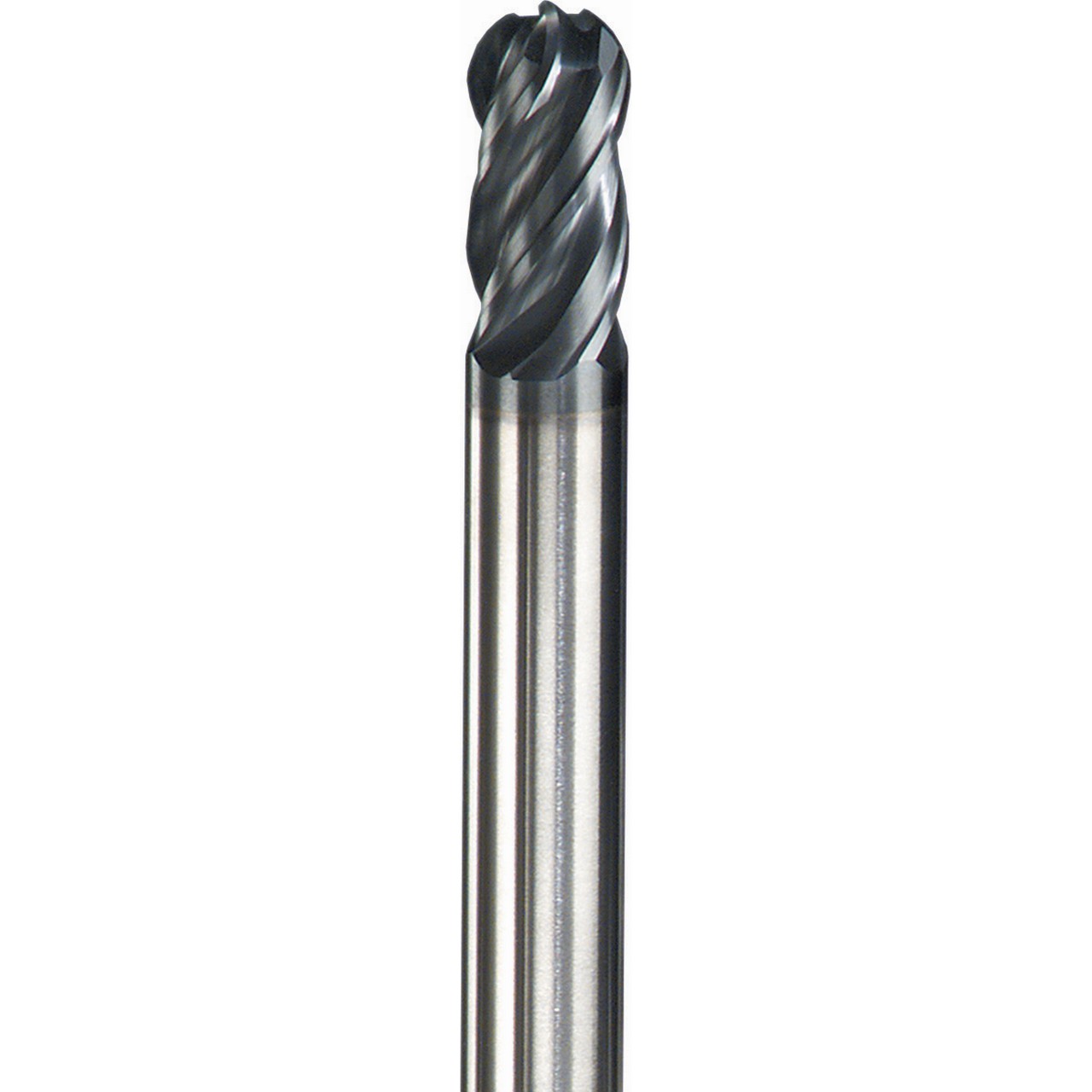

SGS 46345 | 10.0mm Diameter x 10.0mm Shank x 22.0mm LOC x 72.0mm OAL 4 Flute TX Coated Ball End Mill

$50.82
Brand:
SGS
Number of Flutes:
4
Length of Cut (Inch):
55/64"
Length of Cut (Decimal Inch):
0.8661"
Length of Cut (mm):
22mm
Overall Length (Inch):
2-53/64"
Overall Length (Decimal Inch):
2.8346"
Overall Length (mm):
72mm
Shank Diameter (Inch):
25/64"
Shank Diameter (Decimal Inch):
0.3937"
Shank Diameter (mm):
10.00mm
Finish/Coating:
TX
Cutting Direction:
RHC
Helix Angle (Degree):
35-38 Degree
SKU:
25199521
UPC:
691781463452
Weight:
0.16 LBS
Shipping:
Calculated at Checkout

Features:

  • Unequal helix design reduces damaging harmonics by changing the angle at which each cutting edge enters and exits the material
  • Unequal flute spacing helps to disrupt the rhythmic pattern created by the cutting edge helping to suppress damaging harmonics
  • Optimal material removal rates through increased feed and depths of cut
  • Ball nose design ideal for finishing operations in complex workpieces
  • Recommended for materials ≤ 45 HRC (≤ 420 BHN)

Product Specifications
Cutting Diameter (mm)10.0mm
Shank Diameter (mm)10.0mm
Length of Cut (mm)22.0mm
Overall Length (mm)72.0mm
Shank Length (mm)49.9mm
Cut of DirectionRHC
Flute TypeSpiral
Helix Angle35-38 Degree
CoatingTX
Number of Flutes4

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
SGS
Number of Flutes:
4
Length of Cut (Inch):
55/64"
Length of Cut (Decimal Inch):
0.8661"
Length of Cut (mm):
22mm
Overall Length (Inch):
2-53/64"
Overall Length (Decimal Inch):
2.8346"
Overall Length (mm):
72mm
Shank Diameter (Inch):
25/64"
Shank Diameter (Decimal Inch):
0.3937"
Shank Diameter (mm):
10.00mm
Finish/Coating:
TX
Cutting Direction:
RHC
Helix Angle (Degree):
35-38 Degree
