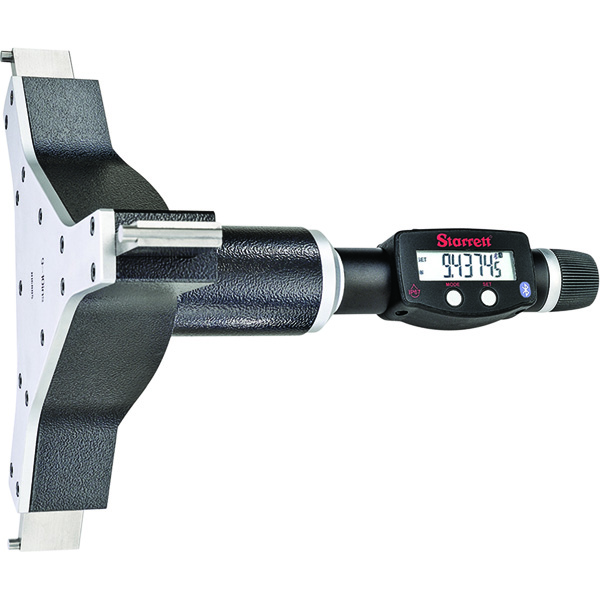

Starrett 770BXTZ-10 | 9.0000"-10.0000" Range Digital Internal Micrometer 0.0005" Resolution

$3,344.00
Ships:
From Manufacturer
Brand:
Starrett
Type:
Internal Micrometer
Minimum Measurement (Inch):
9"
Minimum Measurement (Decimal Inch):
9.0000"
Minimum Measurement (mm):
225mm
Maximum Measurement (Inch):
10"
Maximum Measurement (Decimal Inch):
10.0000"
Maximum Measurement (mm):
250mm
Gage Depth (Inch):
4-5/8"
Gage Depth (Decimal Inch):
4.6250"
Gage Depth (mm):
118mm
Resolution (Inch):
0"
Resolution (Decimal Inch):
0.0005"
Resolution (mm):
0.001mm
Ships:
From Manufacturer
SKU:
30025864
UPC:
049659725735
Weight:
0.11 LBS
Shipping:
Free Shipping
Starrett 770BXTZ-10 | 9.0000"-10.0000" Range Digital Internal Micrometer 0.0005" Resolution
Features
  • Wide measurement range without changing anvils
  • Carbide measuring faces on sizes above 1/2" (12.5mm) diameter
  • Extensions available for deep holes
  • Precision ratchet stop provides correct contact pressure for accurate readings
  • Each micrometer bore gage with head comes with a wooden case, complete with setting ring, contacts, adjusting wrench, spare battery, and instructions
  • IP65 level of protection against coolant, water, dirt and dust
  • Large high-contrast LCD digital readout is easy to read and reduces error
  • RS232 output
  • Includes instant inch/millimeter conversion and preset + and - functions
  • Proximity output with optional built-in Bluetooth
  • Bi-directional communication
Product Specifications
Range (in) 9 - 10"
Range (mm) 225-250mm
Resolution (in) .00005"
Resolution (mm) 0.001mm
SPC Output SPC Output
Approximate Measuring Depth (in) 4-5/8"
Approximate Measuring Depth (mm) 118mm
Accuracy (in) .00030"
Accuracy (mm) .007mm

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Starrett
Type:
Internal Micrometer
Minimum Measurement (Inch):
9"
Minimum Measurement (Decimal Inch):
9.0000"
Minimum Measurement (mm):
225mm
Maximum Measurement (Inch):
10"
Maximum Measurement (Decimal Inch):
10.0000"
Maximum Measurement (mm):
250mm
Gage Depth (Inch):
4-5/8"
Gage Depth (Decimal Inch):
4.6250"
Gage Depth (mm):
118mm
Resolution (Inch):
0"
Resolution (Decimal Inch):
0.0005"
Resolution (mm):
0.001mm
Ships:
From Manufacturer
