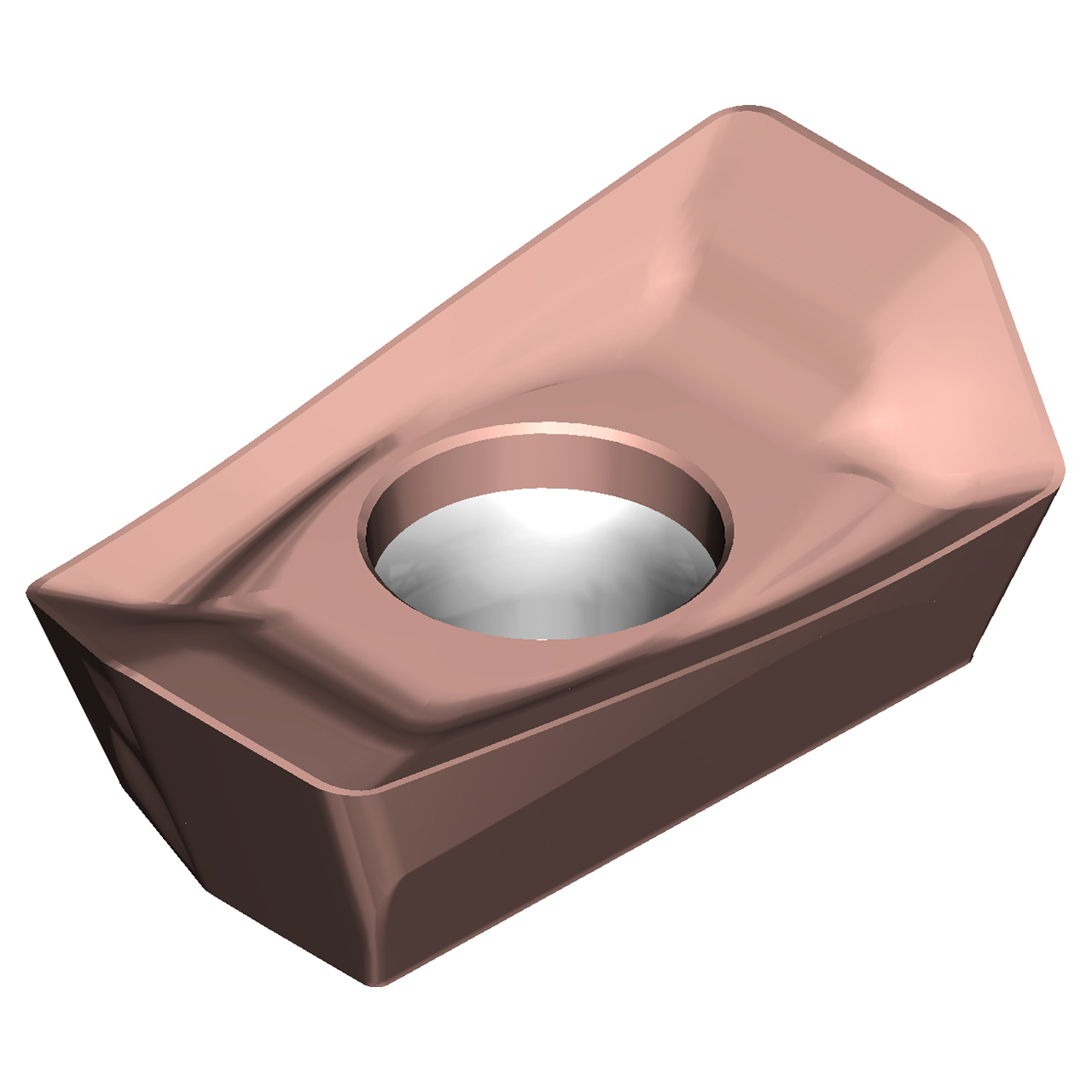

Product Specifications
EDP Number | 14U2ARV |
Product Code-ANSI | AOET170520PEER-F-ACU2500 |
Manufacturer Grade Identification | ACU2500 |
Series | WEZ |
Maximum Depth of Cut (mm) | 15.00mm |
Cutting Edge Length (Decimal Length) | 0.7677" |
Cutting Edge Length (mm) | 19.50mm |
Nose Radius (Decimal Inch) | 0.0787" |
Nose Radius (mm) | 2.00mm |
Insert Thickness (Decimal Inch) | 0.2165" |
Insert Thickness (mm) | 5.50mm |
Coating | ACU2500 |
Coating Process | PVD |
Insert Style | AOET |
Insert Side | Single |
Insert Size | 1705 |
Chip Breaker | F |
Tolerance Class | E |
Insert Hand | R |
Insert Material | Carbide |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Sumitomo
Insert Style:
AOET
Insert Size:
1705
Material:
Carbide
Manufacturer's Grade:
ACU2500
Coating:
ACU2500
Width (Inch):
3/4"
Width (Decimal Inch):
0.7677"
Width (mm):
19.50mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.2165"
Thickness (mm):
5.50mm
interval quantity:
10
Ships:
From California in 1-2 Days
