Product Specifications

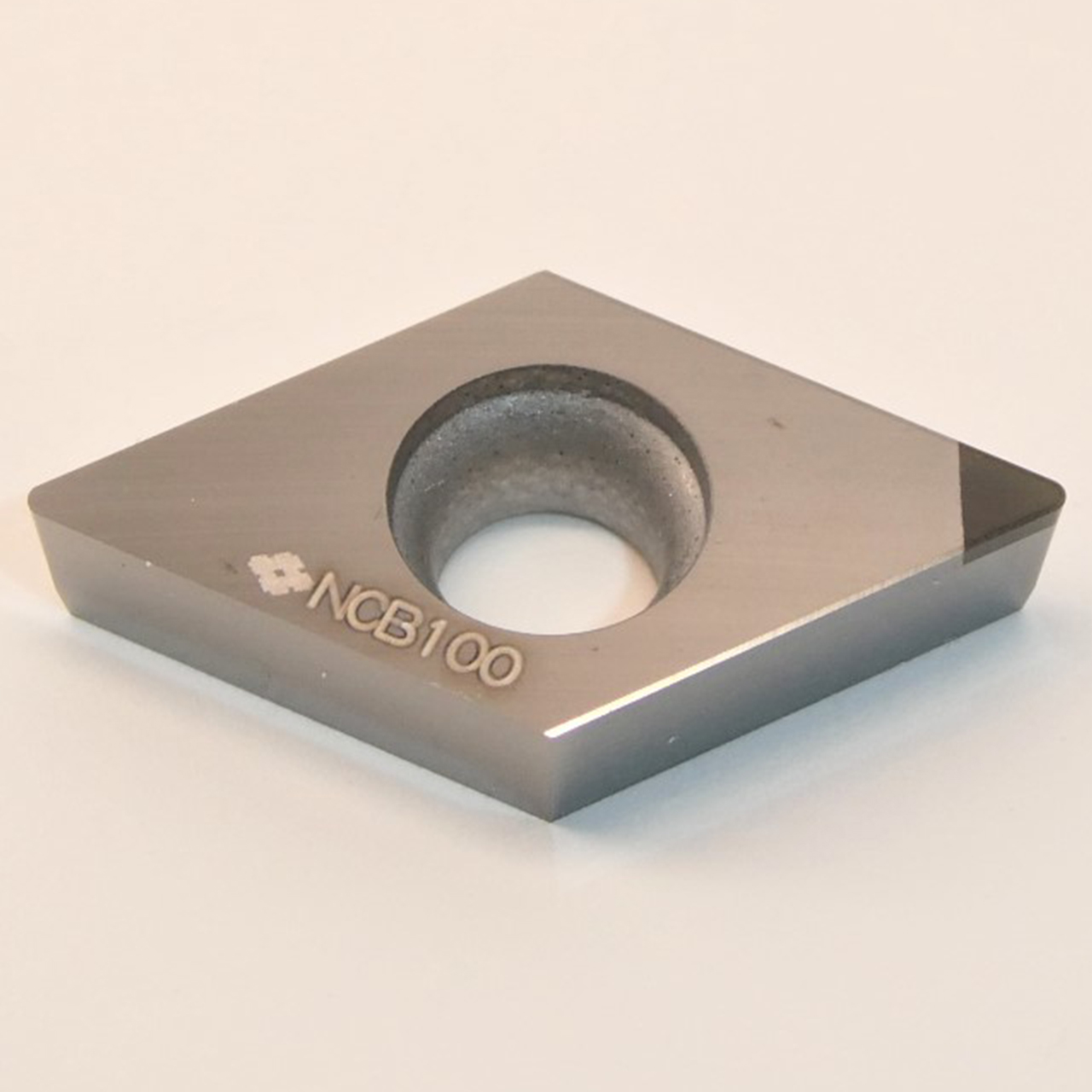

| EDP Number | 16P5FDM |
| Product Code-ANSI | NUDCGA21.51-NCB100 |
| Product Code-ISO | NU-DCGW070204 |
| Manufacturer Grade Identification | NCB100 |
| Series | NCB100 |
| Effective Length (Inch) | 0.0984" |
| Effective Length (mm) | 2.50mm |
| Nose Radius (Inch) | 0.0157" |
| Nose Radius (mm) | 0.40mm |
| Inscribed Circle Diameter (Inch) | 0.2500" |
| Inscribed Circle Diameter (mm) | 6.35mm |
| Hole Diameter (mm) | 2.80mm |
| Insert Thickness (Inch) | 0.0937" |
| Insert Thickness (mm) | 2.38mm |
| Insert Size | 21.51 |
| Corner Angle | 55 Degree |
| Relief Angle | 7 Degree |
| Rake Angle | Positive |
| Insert Material | CBN |
| Insert Style | DCGW |
| Tolerance Class | G |
| Coating | Uncoated Binderless CBN |
| Insert Holding Method | Pin & Clamp |
| Standard Designation of the Grade, Main Application | Exotic Alloy |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Sumitomo
Insert Style:
DCGW
Insert Size:
21.51
Material:
CBN
Inscribed Circle (Inch):
1/4"
Inscribed Circle (Decimal Inch):
0.2500"
Inscribed Circle (mm):
6.35mm
Thickness (Inch):
3/32"
Thickness (Decimal Inch):
0.0937"
Thickness (mm):
2.38mm
Corner Radius (Inch):
1/32"
Corner Radius (Decimal Inch):
0.0157"
Corner Radius (mm):
0.40mm
Manufacturer's Grade:
NCB100
interval quantity:
1
Ships:
From California in 1-2 Days
