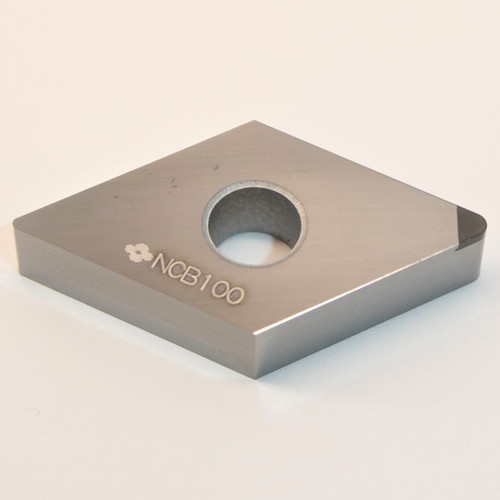

Sumitomo 16P5FDA | NUCNGA431-NCB100 0.5000" Circle Diameter x 5.16mm Hole Diameter x 0.0157" Radius Uncoated CBN Turning Insert

$167.71 $138.96
(You save $28.75)
Ships:
From California in 1-2 Days
Brand:
Sumitomo
Insert Style:
CNGA
Insert Size:
431
Material:
CBN
Inscribed Circle (Decimal Inch):
0.5000"
Inscribed Circle (mm):
12.70mm
Thickness (Decimal Inch):
0.1874"
Thickness (mm):
4.76mm
Corner Radius (Decimal Inch):
0.0157"
Corner Radius (mm):
0.40mm
Manufacturer's Grade:
NCB100
interval quantity:
1
Ships:
From California in 1-2 Days
SKU:
23171376
UPC:
Weight:
0.02 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Sumitomo 16P5FDA | NUCNGA431-NCB100 0.5000" Circle Diameter x 5.16mm Hole Diameter x 0.0157" Radius Uncoated CBN Turning Insert

Product Specifications
EDP Number16P5FDA
Product Code-ANSINUCNGA431-NCB100
Product Code-ISONU-CNGA120404
Manufacturer Grade IdentificationNCB100
SeriesNCB100
Effective Length (Inch)0.0984"
Effective Length (mm)2.50mm
Nose Radius (Inch)0.0157"
Nose Radius (mm)0.40mm
Inscribed Circle Diameter (Inch)0.5000"
Inscribed Circle Diameter (mm)12.70mm
Hole Diameter (mm)5.16mm
Insert Thickness (Inch)0.1874"
Insert Thickness (mm)4.76mm
Insert Size431
Corner Angle80 Degree
Relief Angle0 Degree
Rake AngleNegative
Insert MaterialCBN
Insert StyleCNGA
Tolerance ClassG
CoatingUncoated Binderless CBN
Insert Holding MethodPin & Clamp
Standard Designation of the Grade, Main ApplicationExotic Alloy
