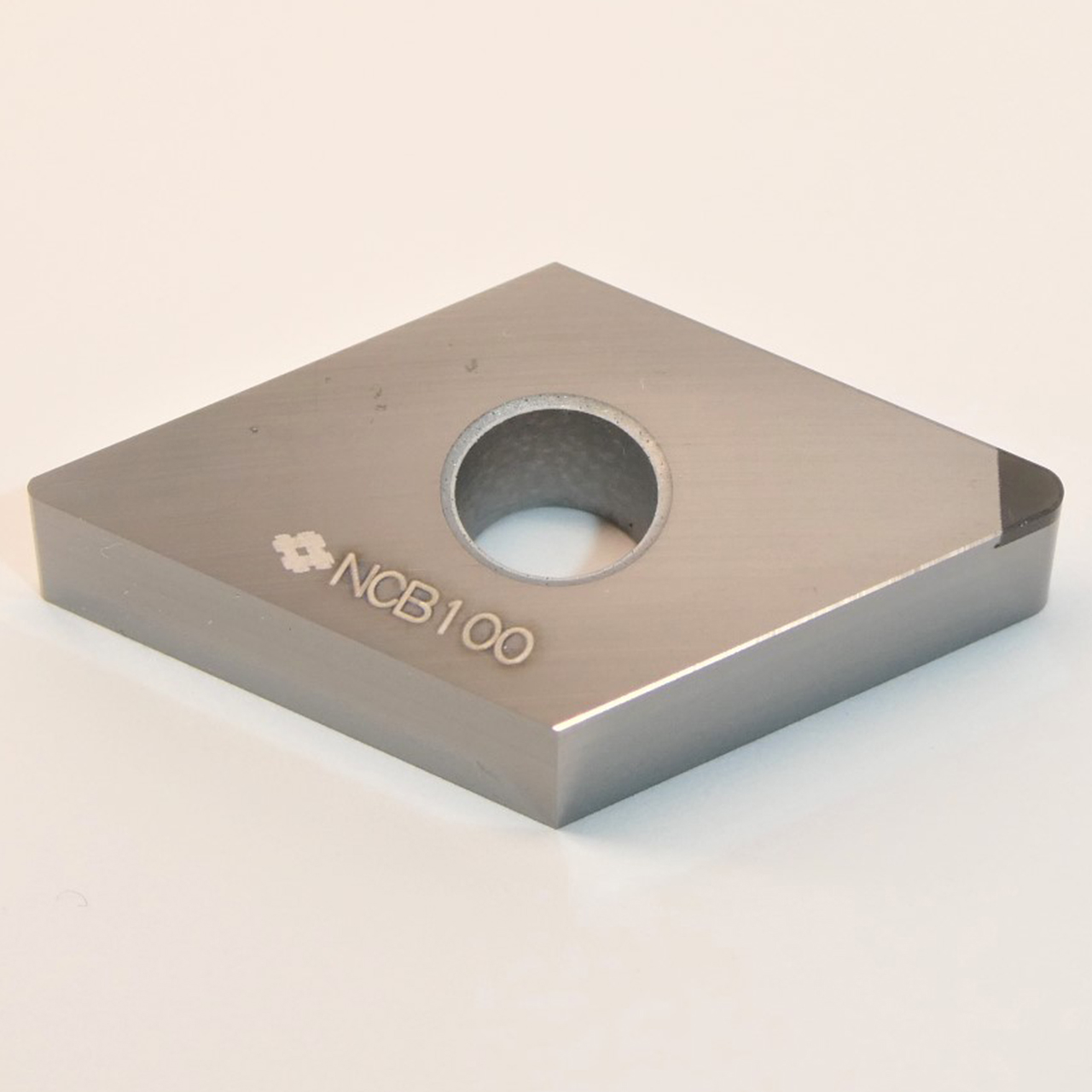

| EDP Number | 16P5FDF |
| Product Code-ANSI | NUDNGA433-NCB100 |
| Product Code-ISO | NU-DNGA150412 |
| Manufacturer Grade Identification | NCB100 |
| Series | NCB100 |
| Effective Length (Inch) | 0.0787" |
| Effective Length (mm) | 2.00mm |
| Nose Radius (Inch) | 0.0472" |
| Nose Radius (mm) | 1.20mm |
| Inscribed Circle Diameter (Inch) | 0.5000" |
| Inscribed Circle Diameter (mm) | 12.70mm |
| Hole Diameter (mm) | 5.16mm |
| Insert Thickness (Inch) | 0.1874" |
| Insert Thickness (mm) | 4.76mm |
| Insert Size | 433 |
| Corner Angle | 55 Degree |
| Relief Angle | 0 Degree |
| Rake Angle | Negative |
| Insert Material | CBN |
| Insert Style | DNGA |
| Tolerance Class | G |
| Coating | Uncoated Binderless CBN |
| Insert Holding Method | Pin & Clamp |
| Standard Designation of the Grade, Main Application | Exotic Alloy |
