Product Specifications
| Manufacturer Part Number | CD68209 |
| Drill Diameter (Inch) | 13/64" |
| Drill Diameter (Decimal Inch) | 0.203" |
| Shank Diameter (Inch) | 13/64" |
| Shank Diameter (Decimal Inch) | 0.203" |
| Overall Length (Inch) | 3-5/8" |
| Overall Length (Decimal Inch) | 3.625" |
| Flute Length (Inch) | 2-7/16" |
| Flute Length (Decimal Inch) | 2.438" |
| Number of Flute | 2 |
| Point Angle (Degree) | 118 Degree |
| Substrate | High Speed Steel |
| Coating | Bright |

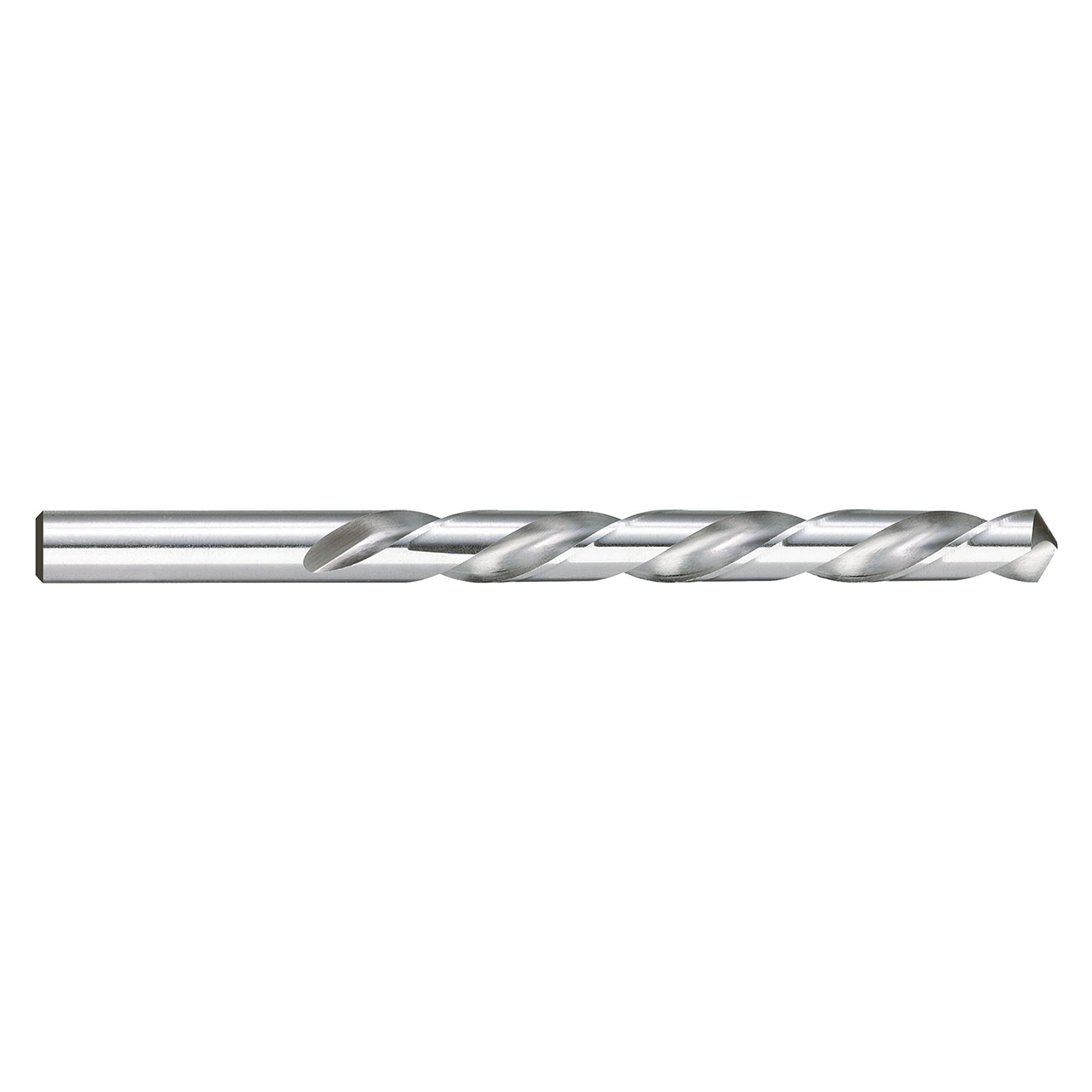

| Product Type | Jobber Length Drill Bit |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Titan USA
Drill Diameter (Inch):
13/64"
Drill Diameter (Decimal Inch):
0.2030"
Drill Diameter (mm):
5.16mm
Shank Diameter (Inch):
13/64"
Shank Diameter (Decimal Inch):
0.2030"
Shank Diameter (mm):
5.16mm
Overall Length (Inch):
3-5/8"
Overall Length (Decimal Inch):
3.6250"
Overall Length (mm):
92.08mm
Drill Point Angle:
118 Degree
Number of Flutes:
2
Material:
High Speed Steel
Finish/Coating:
Bright
interval quantity:
1
