Features:
- Optimized for spotting applications to improve drilling accuracy
- A point angle equal to or larger than a drill's point angle is recommended for optimal results
- Also effective in chamfering top of drilled holes
- AlTiN coating offers increased wear and heat resistance
- Solid carbide
- CNC ground in the USA
Product Specifications

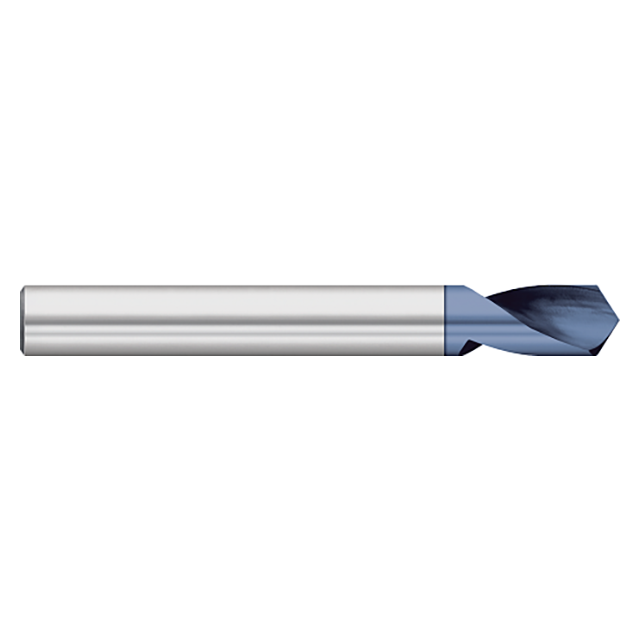

| Manufacturer Part Number | TC28816 |
| Drill Diameter | 0.2500" (1/4) |
| Shank Diameter | 0.2500" (1/4) |
| Overall Length (Inch) | 3.0000" (3) |
| Flute Length (Inch) | 0.3750" (3/8) |
| Point Angle (Degree) | 120 Degree |
| Angle per Side | 6 |
| Number of Flutes | 2 |
| Coating | ALTIN |
| Substrate | Carbide |
| Product Type | Spotting Drill |
