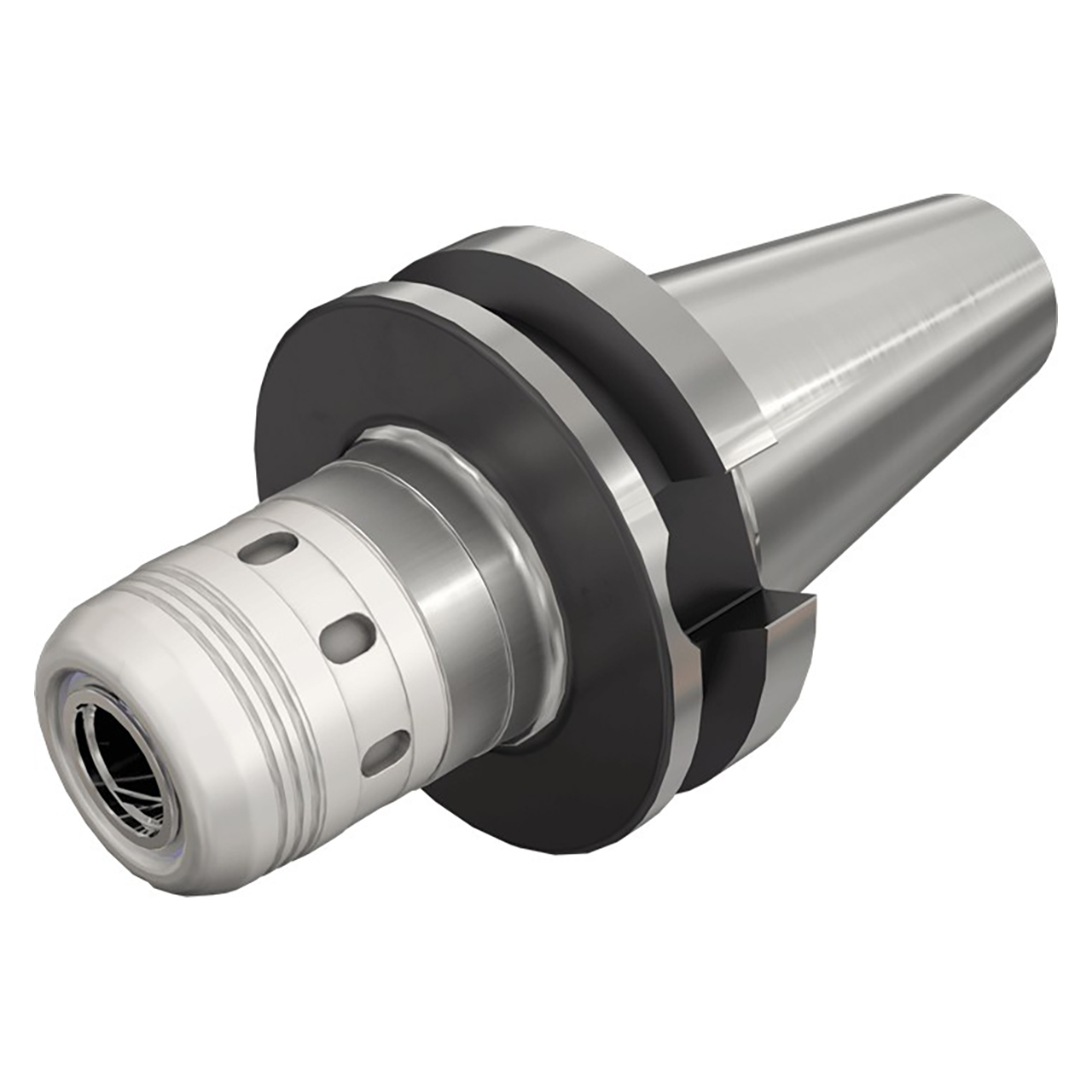

TungMax endmill chuck holders with BT shank.
Product Specifications
| Manufacturer Part Number | 4504482 |
| Body Diameter (mm) | 51.00mm |
| Body Length (mm) | 67.00mm |
| Connection Diameter Workpiece Side (mm) | 20.00mm |
| Connection Diameter Maximum Workpiece Side (mm) | 20.00mm |
| Connection Diameter Minimum Workpiece Side (mm) | 6.00mm |
| Overall Length (mm) | 105.00mm |
| Connection Retention Knob Thread Size | M24 |
| Shank Size | 50 |
| Thread Designation Inside | M16 |
| Body Material | Steel |
| Application | Tapered Shape Interface |
| Tool Type | BT |
