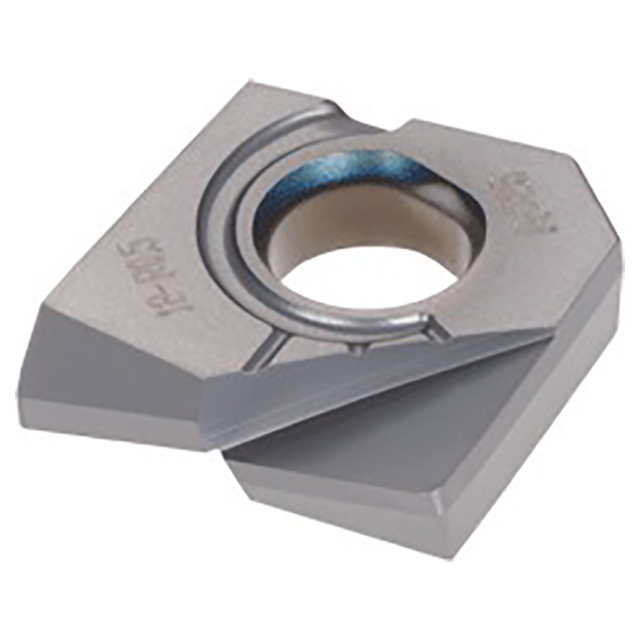

Radius type inserts with MJ chipbreaker for general purpose. Suitable for finishing of die & mold.
Product Specifications
| # MFG | 6725944 |
| Cutting Edge Effective Length (Inch) | 1/2" |
| Corner Radius (Inch) | 0.031" |
| Depth of Cut Maximum (Inch) | 0.078" |
| Insert Thickness (Inch) | 0.134" |
| Number of Cutting Edges | 1 |
| Application | Profile Milling, Shoulder Milling |
| Coating | TiAlN |
| Body Material | Carbide |
| Grade | AH725 |
| Cutting Edge Material | Carbide |
| Applicable Material | Steel, Stainless Steel, Cast Iron, Hi Temp Alloys |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
AH725
Finish/Coating:
TiAlN
Thickness (Inch):
9/64"
Thickness (Decimal Inch):
0.1340"
Thickness (mm):
3.40mm
interval quantity:
5
