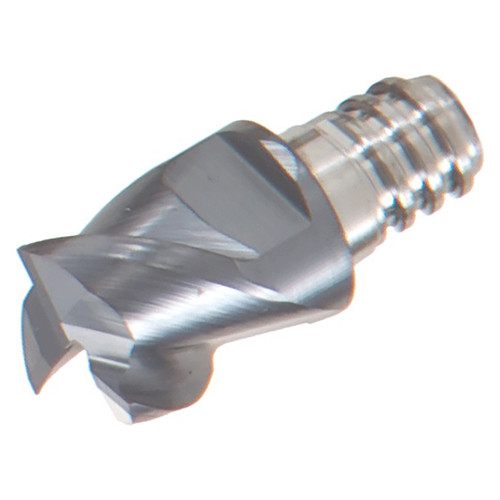

Square, 3 flutes, roughing-finishing, general, for key way.
Product Specifications
| Manufacturer Part Number | 6840477 |
| Cutting Diameter Maximum (mm) | 11.7mm |
| Cutting Diameter (mm) | 11.7mm |
| Depth of Cut Maximum (mm) | 7mm |
| Functional Length (mm) | 16.5mm |
| Corner Radius (mm) | 0.3mm |
| Maximum Feed per Tooth (fz) | 0.13mm/tooth |
| Grade | AH715 |
| Flute Helix Angle (Degree) | 38 Degree |
| Number of Flutes | 3 |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Body Material | Carbide |
| Tool Type | Solid Carbide Center Cutting Endmills 90 |
| Application | Shoulder Milling |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Mill Diameter (Inch):
29/64"
Mill Diameter (Decimal Inch):
0.4600"
Mill Diameter (mm):
11.70mm
Number of Flutes:
3
Material:
Carbide
Application:
Shoulder Milling
Helix Angle:
38 Degree
interval quantity:
2
