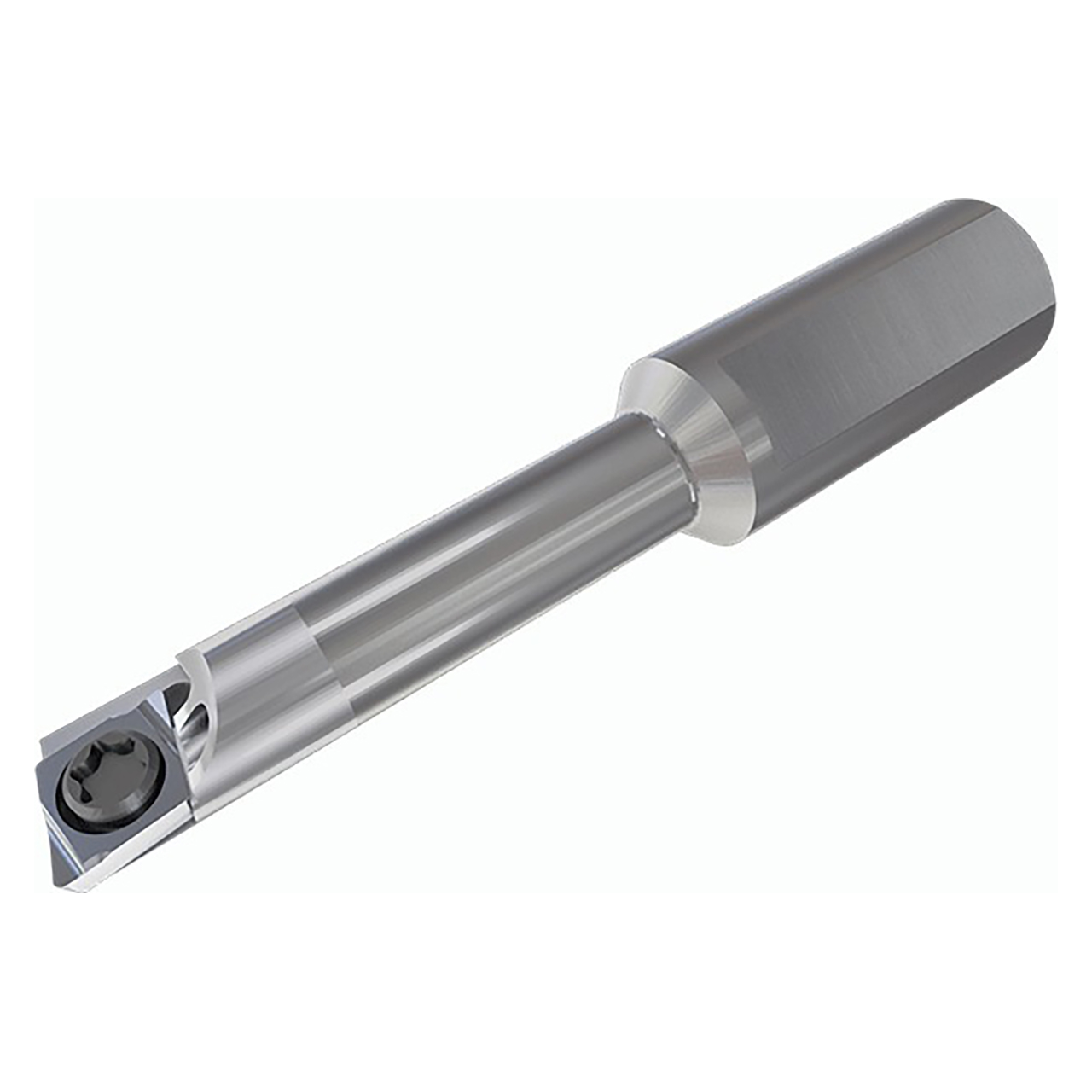

TinyMiniTurn screw-on boring bar, for positive 75 degree rhombic insert.
Product Specifications
| # MFG | 6901714 |
| Connection Diameter Machine Side (Inch) | 0.276" |
| Functional Length (Inch) | 1.811" |
| Functional Width (Inch) | 0.122" |
| Head Length (Inch) | 1.181" |
| Minimum Bore Diameter (Inch) | 0.236" |
| Body Material | Carbide |
| Application | For 75 Degree Rhombic Insert, For Miniature Machining |
| Rake Angle Axial (Degree) | 0 Degree |
| Rake Angle Radial (Degree) | -12 Degree |
