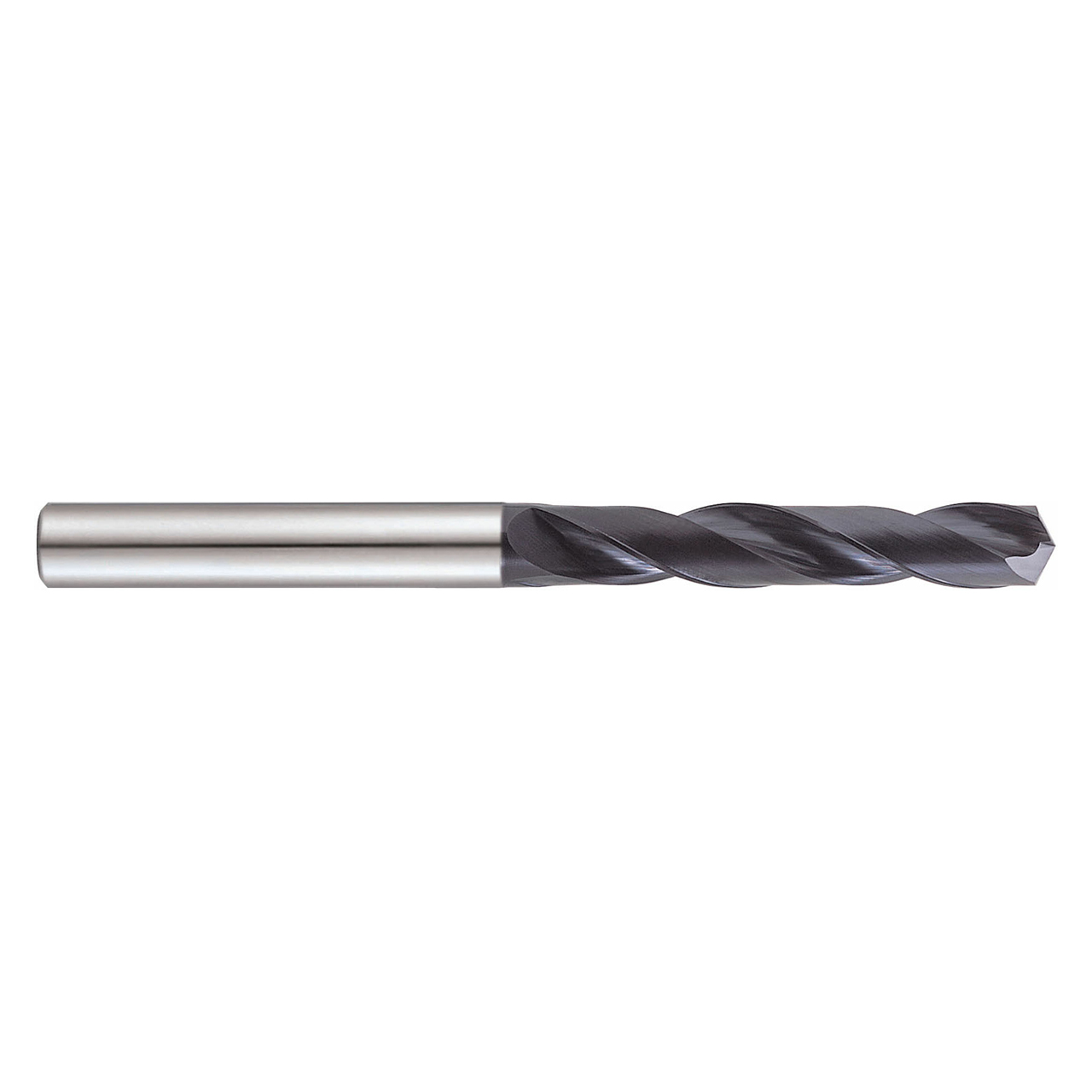

YG1 0081ATF | 0.1300" Diameter x 0.1250" Shank x 1.9219" OAL 2 Flute TiAlN Coated Carbide Dream Drill Bit

$20.12 $14.49
(You save $5.63)
Brand:
YG1
Drill Bit Size (Inch):
1/8"
Drill Bit Size (Decimal Inch):
0.1300"
Drill Bit Size (mm):
3.18mm
Flute Length (Inch):
45/64"
Flute Length (Decimal Inch):
0.7031"
Flute Length (mm):
48.82mm
Overall Length (Inch):
1-59/64"
Overall Length (Decimal Inch):
1.9219"
Overall Length (mm):
48.82mm
Material:
Carbide
Finish/Coating:
TiAlN
Cutting Direction:
Right
interval quantity:
1
SKU:
10026770
UPC:
Weight:
0.02 LBS
Shipping:
Calculated at Checkout

Product Specifications
ETP Number0081ATF
Diameter (Decimal Inch)0.1300"
Diameter (Inch)1/8"
Diameter (mm)3.18mm
Shank Diameter (Decimal Inch)0.1250"
Shank Diameter (Inch)1/8"
Shank Diameter (mm)3.18mm
Flute Length (Decimal Inch)0.7031"
Flute Length (Inch)45/64"
Flute Length (mm)17.86mm
Overall Length (Decimal Inch)1.9219"
Overall Length (Inch)1-59/64"
Overall Length (mm)48.82mm
Point Length (Decimal Inch)0.0227"
Point Length (mm)0.58mm
Point Angle (Degree)140 Degree
Helix Angle (Degree)30 Degree
Length/Diameter3
Shank Toleranceh6
Coolant ThroughNo
Hole Tolerance+0-.00087
CoatingTiAlN
MaterialCarbide
Cutting DirectionRight
ApplicationP
TypeDream Drill Bit
