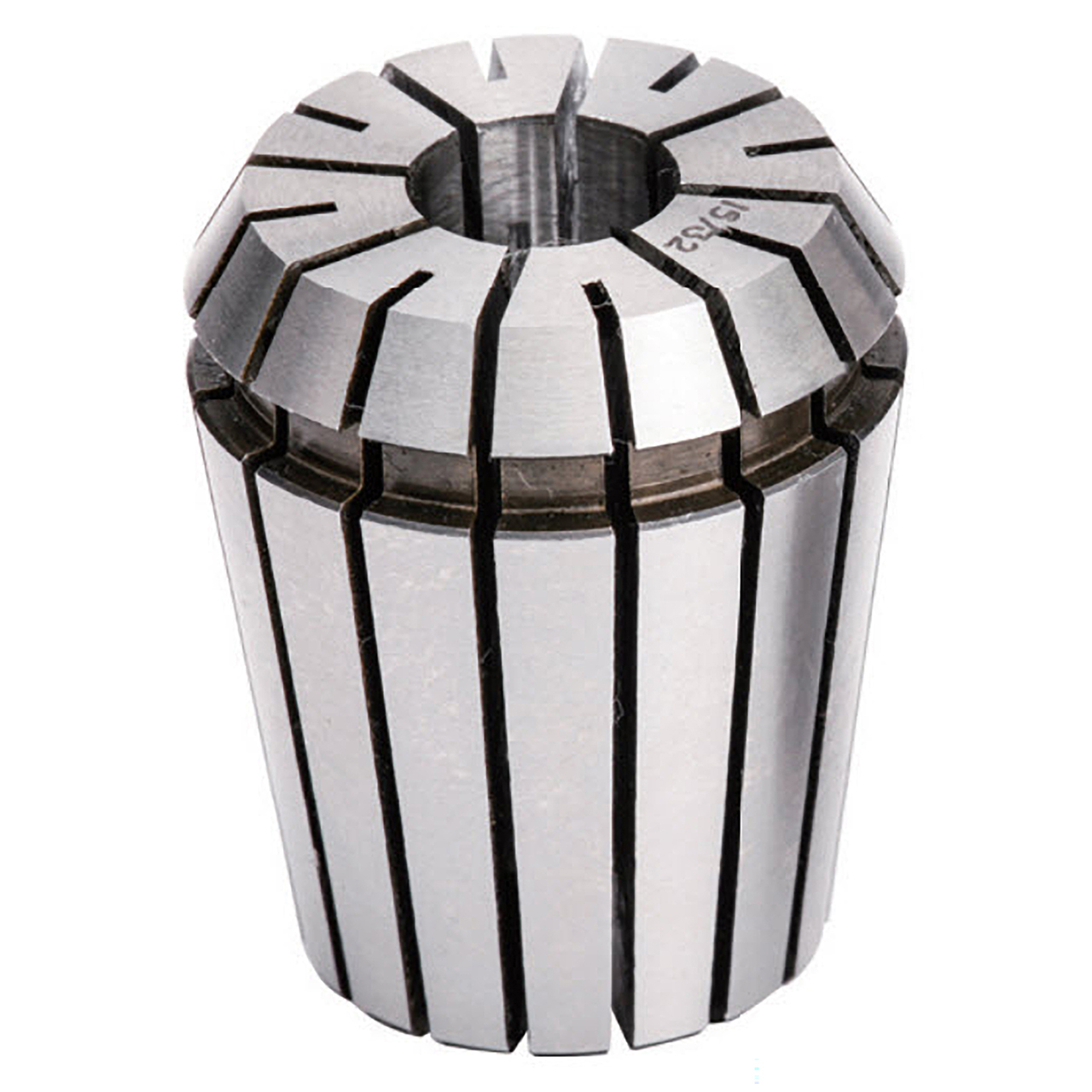

YG1 320516S | 0.3125" Shank Size x 1.2990" Diameter x 1.5750" Clamping Length ER32 Rubber Sealed Collet

$55.92 $44.74
(You save $11.18)
Brand:
YG1
Type:
Sealed Precision Spring Collet
Collet Series:
ER32S
Size (Inch):
5/16"
Size (Decimal Inch):
0.3125"
Overall Length (Decimal Inch):
1.5750"
interval quantity:
1
SKU:
55007684
UPC:
Weight:
0.38 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Product Specifications
EDP Number320516S
Shank Size (fractional)5/16"
Shank Size (Inch)0.3125"
Collapse Range (Inch)0.274-0.3125"
Diameter (Inch)1.2990"
Diameter (mm)33.00mm
Overall Length (Inch)1.5750"
Overall Length (mm)40.00mm
Clamping Length (Inch)1.5750"
Clamping Length (mm)40.00mm
StyleSingle Angle
SeriesER32S
TypeSealed Precision Spring Collet
