Product Specifications
| EDP Number | 58584 |
| Diameter (Decimal Inch) | 0.3800" |
| Diameter (Inch) | 3/8" |
| Diameter (mm) | 9.53mm |
| Shank Diameter (Decimal Inch) | 0.3750" |
| Shank Diameter (Inch) | 3/8" |
| Shank Diameter (mm) | 9.53mm |
| Length of Cut (Decimal Inch) | 1.5000" |
| Length of Cut (Inch) | 1-1/2" |
| Length of Cut (mm) | 38.10mm |
| Overall Length (Decimal Inch) | 4.0000" |
| Overall-Length-(Inch) | 4" |
| Overall Length (mm) | 101.60mm |
| Helix Angle (Degree) | 45 Degree |
| Number of Flutes | 5 |
| Cutting Direction | Right |
| Application | P,M |
| Shank Style | Plain |
| Series | E5068 |
| Coating | Bright |
| Material | Carbide |
| Cut Type | Center |
| Length Type | Medium & Long |
| End Type | Single End |

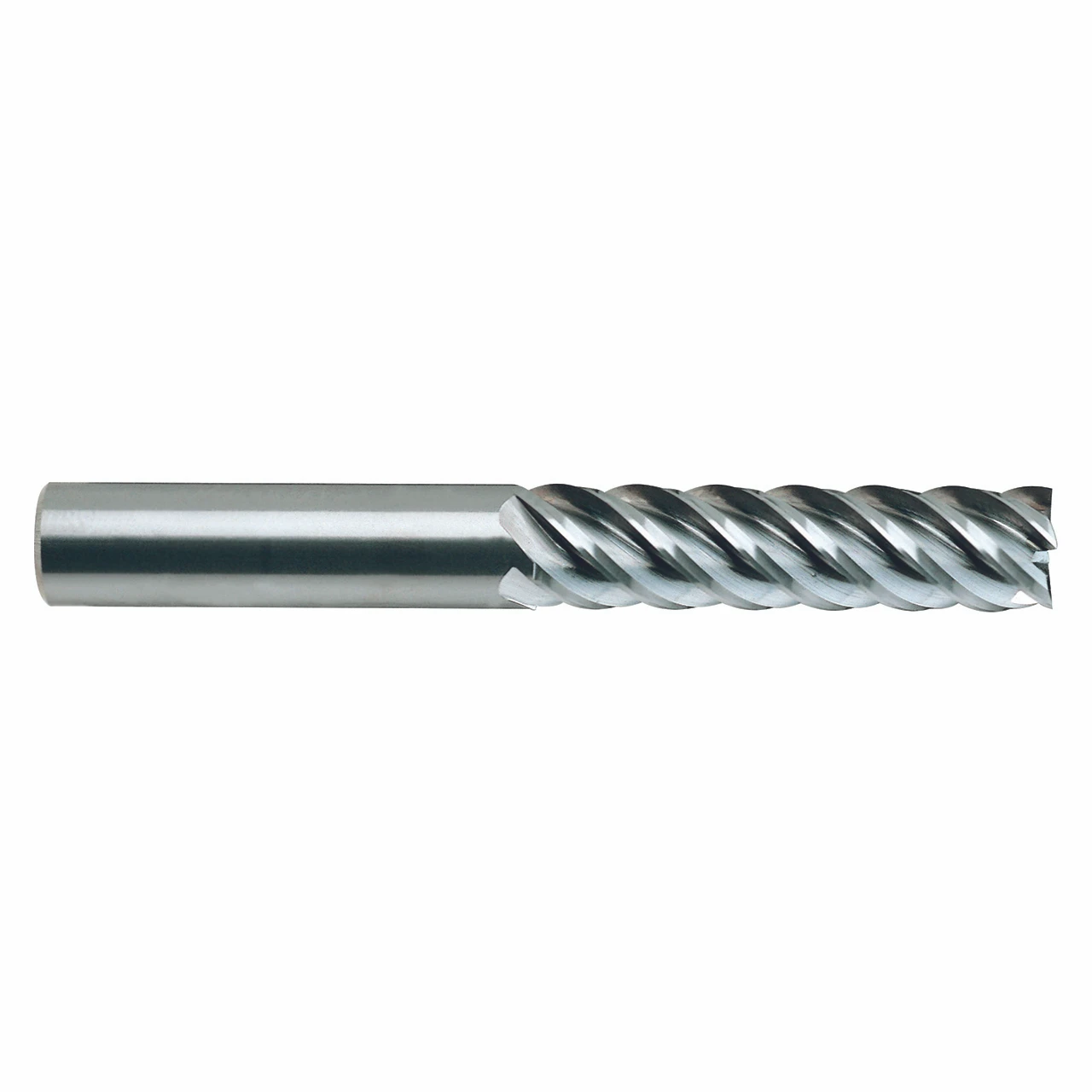

| Product Type | Square End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Mill Diameter (Inch):
3/8"
Mill Diameter (Decimal Inch):
0.3800"
Mill Diameter (mm):
9.53mm
Number of Flutes:
5
Length of Cut (Inch):
1-1/2"
Length of Cut (Decimal Inch):
1.5000"
Length of Cut (mm):
38.10mm
Material:
Carbide
Finish/Coating:
Bright
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Shank Diameter (mm):
9.53mm
Application:
P,M
Single or Double End:
Single
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4.0000"
Overall Length (mm):
101.60mm
Helix Angle:
45 Degree
