Product Specifications
| # Manufacturer Number | 93265 |
| Diameter (Decimal Inch) | 0.3750" |
| Diameter (Inch) | 3/8" |
| Diameter (mm) | 9.53mm |
| Shank Diameter (Decimal Inch) | 0.3750" |
| Shank Diameter (Inch) | 3/8" |
| Overall Length (Decimal Inch) | 2.5000" |
| Overall Length (Inch) | 2-1/2" |
| Overall Length (mm) | 63.50mm |
| Ball Nose Radius (Decimal Inch) | 0.1875" |
| Ball Nose Radius (Inch) | 3/16" |
| Ball Nose Radius (mm) | 4.76mm |
| Number of Flute | 3 |
| Helix Angle (Degree) | 30 Degree |
| Coating | ALTiN |
| Material | Carbide |
| Cut Type | Center Cut |
| Shank Style | Plain |
| Cutting Direction | Right |
| Series | EM662 |

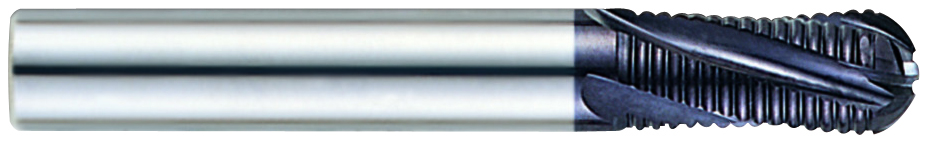

| Product Type | Roughing Ball Nose End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Mill Diameter (Inch):
3/8"
Mill Diameter (Decimal Inch):
0.3750"
Mill Diameter (mm):
9.53mm
Number of Flutes:
3
Length of Cut (Inch):
7/8"
Length of Cut (Decimal Inch):
0.8750"
Length of Cut (mm):
22.23mm
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Shank Diameter (mm):
9.53mm
Material:
Carbide
Finish/Coating:
AlTiN
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Center Cutting (yes/no):
Center Cut
