Product Specifications

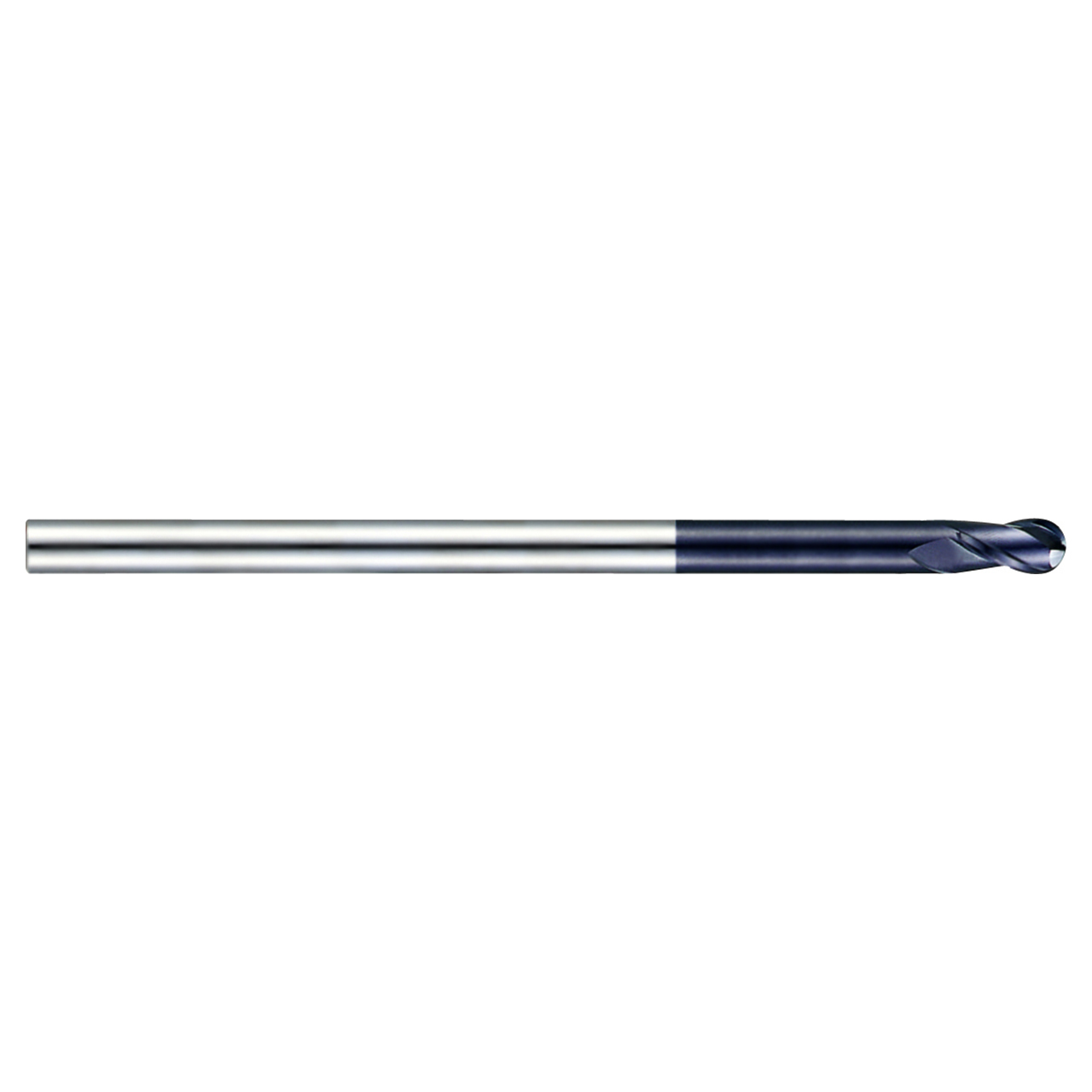

| Manufacturer Part Number | 93586 |
| Cutting Diameter (Inch) | 3/4" |
| Cutting Diameter (Decimal Inch) | 0.750" |
| Cutting Diameter (mm) | 19.05mm |
| Shank Diameter (Inch) | 3/4" |
| Shank Diameter (Decimal Inch) | 0.750" |
| Shank Diameter (mm) | 19.05mm |
| Length of Cut (Inch) | 1-1/2" |
| Length of Cut (Decimal Inch) | 1.083" |
| Length of Cut (mm) | 27.52mm |
| Overal Length (Inch) | 10" |
| Overal Length (Decimal Inch) | 10.00" |
| Overal Length (mm) | 254.00mm |
| Ball Nose Radius (Inch) | 3/8" |
| Ball Nose Radius (Decimal Inch) | 0.375" |
| Shank Style | Plain |
| Helix Angle (Degree) | 30 Degree |
| Cutting Direction | Right Hand |
| Material | Carbide |
| Coating | AlTiN |
| Product Type | Ball Nose End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Cutting Diameter (Inch):
3/4"
Cutting Diameter (Decimal Inch):
0.7500"
Cutting Diameter (mm):
19.05mm
Shank Diameter (Inch):
3/4"
Shank Diameter (Decimal Inch):
0.7500"
Shank Diameter (mm):
19.05mm
Length of Cut (Inch):
1-1/2"
Length of Cut (Decimal Inch):
1.0830"
Length of Cut (mm):
27.52mm
Overall Length (Inch):
10"
Overall Length (Decimal Inch):
10.000"
Overall Length (mm):
254.00mm
Number of Flutes:
2
Shank Style:
Plain
Material:
Carbide
Cutting Direction:
Right Hand
Finish/Coating:
AlTiN
interval quantity:
1
