Product Specifications
| EDP Number | DGN506133 |
| Diameter (Decimal Inch) | 0.5236" |
| Diameter (Inch) | 11/21" |
| Diameter (mm) | 13.30mm |
| Shank Diameter (Decimal Inch) | 0.5512" |
| Shank Diameter (Inch) | 43/78" |
| Shank Diameter (mm) | 14.00mm |
| Flute Length (Decimal Inch) | 2.3622" |
| Flute Length (Inch) | 2-25/69" |
| Flute Length (mm) | 60.00mm |
| Overall Length (Decimal Inch) | 4.2126" |
| Overall Length (Inch) | 4-10/47" |
| Overall Length (mm) | 107.00mm |
| Point Length (Decimal Inch) | 0.0953" |
| Point Length (mm) | 2.42mm |
| Series | DGN506 |
| Number of Flutes | 2 |
| Shank Tolerance | h6 |
| Hole Tolerance | m7 |
| Point Angle (Degree) | 140 Degree |
| Length/Diameter | 3XD |
| Coating | Z-Coated |
| Material | Carbide |
| Coolant Pressure | 20 Bar |
| Blank Standard | DIN6537 |
| Coolant Through | Yes |
| Application | P, K |
| Cutting Direction | Right Hand |

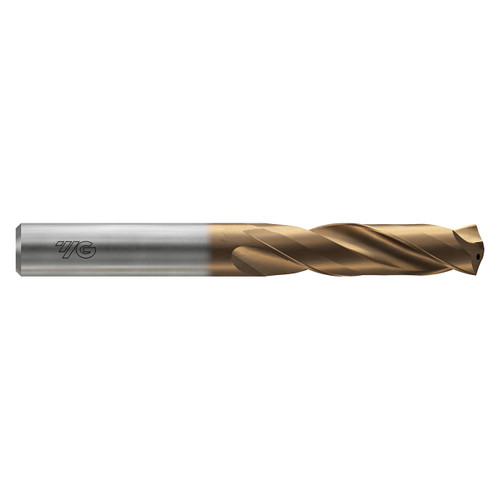

| Type | Dream Drill Pro with Coolant Holes (3xD Short) |
| Product Type | Coolant Fed Drill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Drill Size (Inch):
11/21"
Drill Size (Decimal Inch):
0.5236"
Drill Size (mm):
13.30mm
Drill Point Angle:
140 Degree
Finish/Coating:
Z-Coated
Material:
Carbide
Coolant Through:
Yes
interval quantity:
1
