Product Specifications

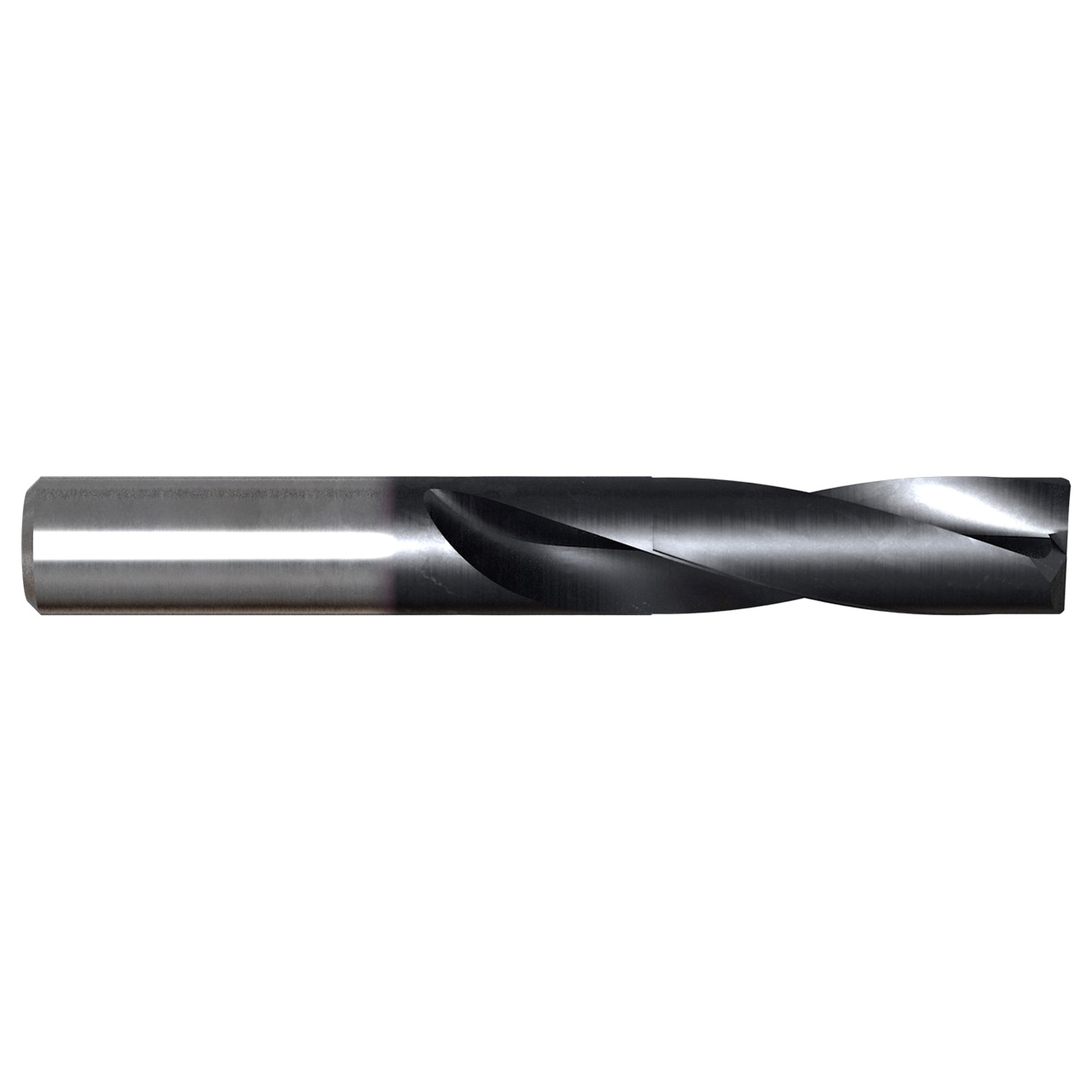

| Manufacturer Part Number | DPP447100 |
| Diameter (Inch) | 37/94" |
| Diameter (Decimal Inch) | 0.3937" |
| Diameter (mm) | 10.00mm |
| Shank Diameter (Inch) | 37/94" |
| Shank Diameter (Decimal Inch) | 0.3937" |
| Shank Diameter (mm) | 10.00mm |
| Flute Length (Inch) | 1-71/92" |
| Flute Length (Decimal Inch) | 1.7717" |
| Flute Length (mm) | 45.00mm |
| Overall Length (Inch) | 3-3/20" |
| Overall Length (Decimal Inch) | 3.1496" |
| Overall Length (mm) | 80.00mm |
| Number of Flutes | 2 |
| Point Angle | 180 Degree |
| Helix Angle | 20 Degree |
| Length/Diameter | 2 |
| Series | DPP447 |
| Shank Tolerance | h6 |
| Coolant Through | No |
| Coating | X-Coated |
| Material | Carbide |
| Hole Tolerance | h7 |
| Application | P,K |
| Cutting Direction | Right |
