Product Specifications
| Manufacturer Part Number | E5I01014 |
| Mill Diameter (Inch) | 7/32" |
| Mill Diameter (Decimal Inch) | 0.218" |
| Mill Diameter (mm) | 5.56mm |
| Shank Diameter (Inch) | 1/4" |
| Shank Diameter (Decimal Inch) | 0.250" |
| Shank Diameter (mm) | 6.35mm |
| Length of Cut (Inch) | 7/16" |
| Length of Cut (Decimal Inch) | 0.437" |
| Length of Cut (mm) | 11.11mm |
| Overall Length (Inch) | 2" |
| Overall Length (Decimal Inch) | 2.000" |
| Overall Length (mm) | 50.80mm |
| Ball Nose Radius (Inch) | 7/64" |
| Ball Nose Radius (Decimal Inch) | 0.109" |
| Ball Nose Radius (mm) | 2.78mm |
| Number of Flutes | 4 |
| Helix Angle (Degree) | 30 Degree |
| Coating | Bright Coated |
| Material | Carbide |

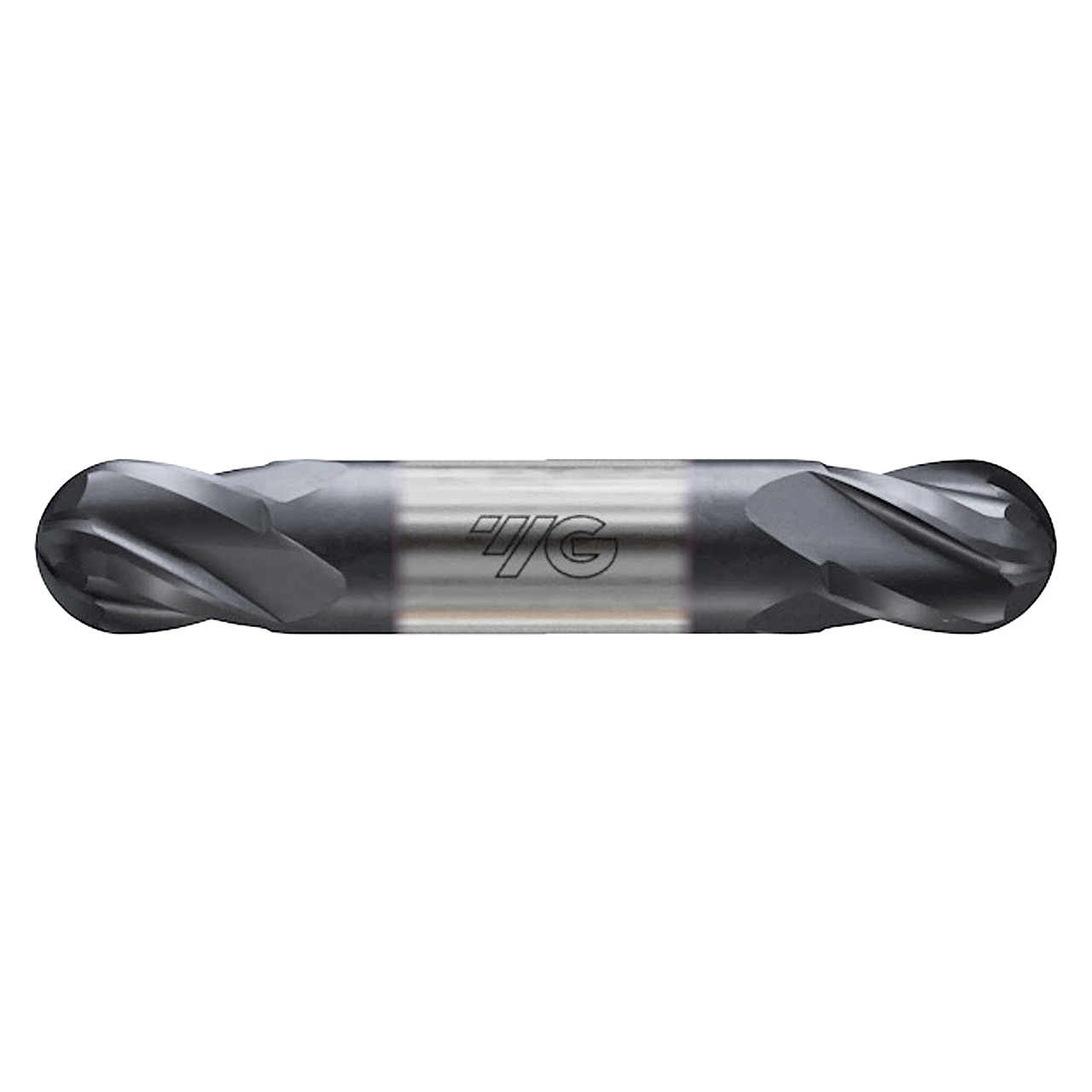

| Product Type | Double Ended Ball End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Cutting Diameter (Inch):
7/32"
Cutting Diameter (Decimal Inch):
0.2180"
Cutting Diameter (mm):
5.56mm
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Length of Cut (Inch):
7/16"
Length of Cut (Decimal Inch):
0.4370"
Length of Cut (mm):
11.11mm
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.0000"
Overall Length (mm):
50.80mm
Number of Flutes:
4
Helix Angle:
30 Degree
Finish/Coating:
Bright Coated
Material:
Carbide
interval quantity:
1
