Product Specifications
| # Manufacturer Number | E9986064TF |
| Diameter (Decimal Inch) | 1.0000" |
| Diameter (Inch) | 1" |
| Diameter (mm) | 25.40mm |
| Shank Diameter (Decimal Inch) | 1.0000" |
| Shank Diameter (Inch) | 1" |
| Shank Diameter (mm) | 25.40mm |
| Overall Length (Decimal Inch) | 6.3750" |
| Overall Length (Inch) | 6-3/8" |
| Overall Length (mm) | 161.93mm |
| Length of Cut (Decimal Inch) | 1.8750" |
| Length of Cut (Inch) | 1-7/8" |
| Length of Cut (mm) | 47.63mm |
| Helix Angle (Degree) | 30 Degree |
| Number of Flute | 4 |
| Coating | TiAlN |
| Material | Premium HSS-PM |
| Cut Type | Center Cut |
| Shank Style | Flat |
| Series | E9986 |
| Cutting Direction | Right |

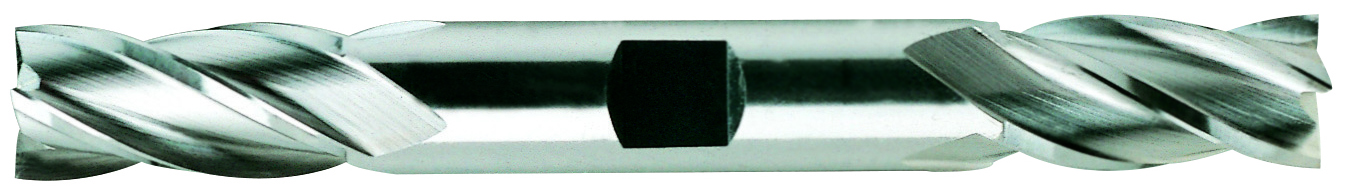

| Product Type | Square Double End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Mill Diameter (Inch):
1"
Mill Diameter (Decimal Inch):
1.0000"
Mill Diameter (mm):
25.40mm
Number of Flutes:
4
Length of Cut (Inch):
1-7/8"
Length of Cut (Decimal Inch):
1.8750"
Length of Cut (mm):
47.63mm
Shank Type:
Flat
Material:
Premium HSS-PM
Finish/Coating:
TiAlN
Shank Diameter (Inch):
1"
Shank Diameter (Decimal Inch):
1.0000"
Shank Diameter (mm):
25.40mm
Application:
P, M, K
Overall Length (Inch):
6-3/8"
Overall Length (Decimal Inch):
6.3750"
Overall Length (mm):
161.93mm
Helix Angle:
30 Degree
Center Cutting (yes/no):
Yes
Cutting Direction:
Right
