Product Specifications
| # Manufacturer Number | E9992048 |
| Diameter (Decimal Inch) | 0.7500" |
| Diameter (Inch) | 3/4" |
| Diameter (mm) | 19.05mm |
| Shank Diameter (Decimal Inch) | 0.7500" |
| Shank Diameter (Inch) | 3/4" |
| Shank Diameter (mm) | 19.05mm |
| Overall Length (Decimal Inch) | 3.4375" |
| Overall Length (Inch) | 3-7/16" |
| Overall Length (mm) | 87.31mm |
| Length of Cut (Decimal Inch) | 1.3125" |
| Length of Cut (Inch) | 1-5/16" |
| Length of Cut (mm) | 33.34mm |
| Ball Nose Radius (Decimal Inch) | 0.3750" |
| Ball Nose Radius (Inch) | 3/8" |
| Ball Nose Radius (mm) | 9.53mm |
| Helix Angle (Degree) | 30 Degree |
| Number of Flute | 2 |
| Coating | Bright |
| Material | Premium HSS-PM |
| Cut Type | Center Cut |
| Shank Style | Flat |
| Series | E9992 |
| Cutting Direction | Right |

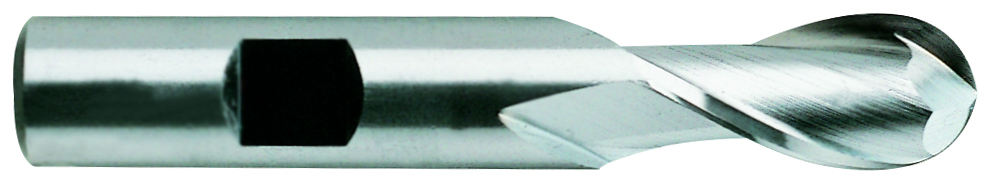

| Product Type | Ball Nose End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Mill Diameter (Inch):
3/4"
Mill Diameter (Decimal Inch):
0.7500"
Mill Diameter (mm):
19.05mm
Number of Flutes:
2
Length of Cut (Inch):
1-5/16"
Length of Cut (Decimal Inch):
1.3125"
Length of Cut (mm):
19.05mm
Material:
Premium HSS-PM
Shank Type:
Flat
Overall Length (Inch):
3-7/16"
Overall Length (Decimal Inch):
3.4375"
Overall Length (mm):
87.31mm
Shank Diameter (Inch):
3/4"
Shank Diameter (Decimal Inch):
0.7500"
Shank Diameter (mm):
19.05mm
Finish/Coating:
Bright
Cutting Direction:
Right
Helix Angle (Degree):
30 Degree
Center Cutting (yes/no):
Yes
Application:
P, M, K
