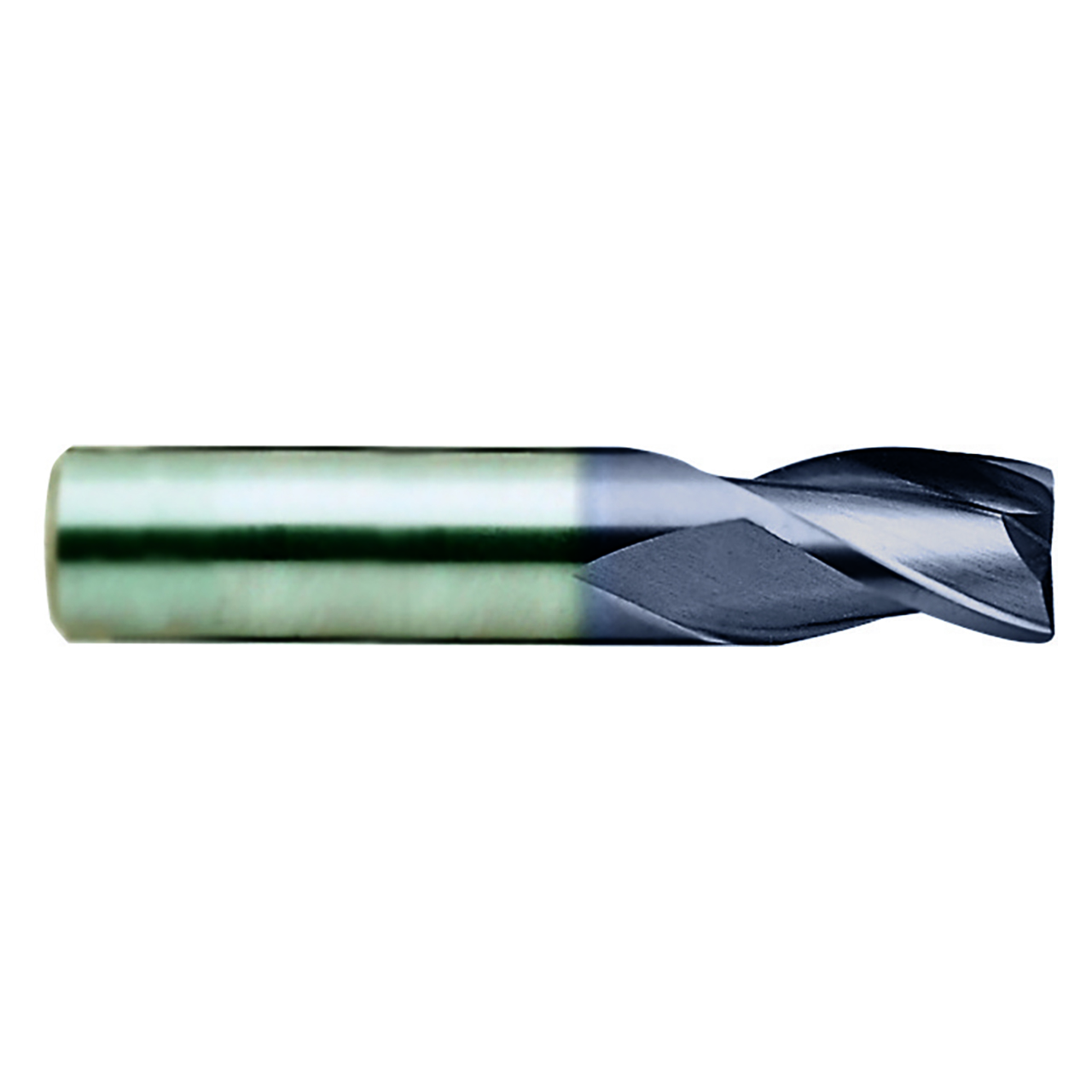

Product Specifications
| EDP Number | EH882080 |
| Diameter (Decimal Inch) | 0.3100" |
| Diameter (Inch) | 23/73" |
| Diameter (mm) | 8.00mm |
| Shank Diameter (Decimal Inch) | 0.3150" |
| Shank Diameter (Inch) | 23/73" |
| Shank Diameter (mm) | 8.00mm |
| Length of Cut (Decimal Inch) | 0.3543" |
| Length of Cut (Inch) | 28/79" |
| Length of Cut (mm) | 9.00mm |
| Overall Length (Decimal Inch) | 2.2835" |
| Overall-Length-(Inch) | 2-17/60" |
| Overall Length (mm) | 58.00mm |
| Corner Radius (Inch) | 0.40~0.50mm |
| Helix Angle (Degree) | 35 Degree |
| Number of Flutes | 3 |
| Cutting Direction | Right |
| Application | P,N |
| Shank Style | Plain |
| Series | EH882 |
| Coating | YG-Tylon F |
| Material | Carbide |
| Cut Type | Center |
| End Type | Single End |
| Product Type | Corner Radius End Mill |
