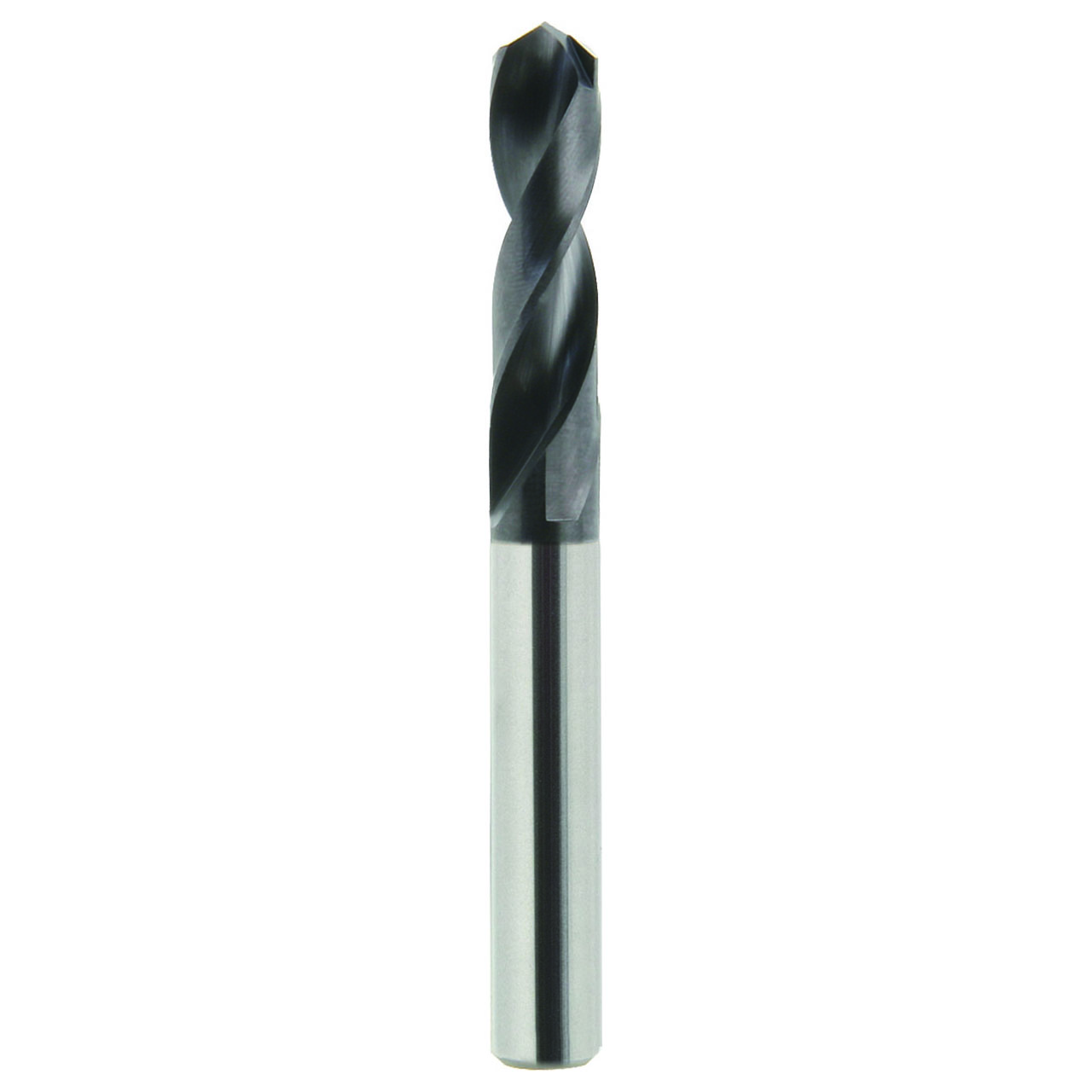

Product Specifications
| Manufacturer Part Number | M16039 |
| Diameter (Wire) | #39 |
| Diameter (Inch) | 1/10" |
| Diameter (Decimal Inch) | 0.0995" |
| Diameter (mm) | 2.53mm |
| Shank Diameter (Inch) | 1/8" |
| Shank Diameter (Decimal Inch) | 0.1250" |
| Shank Diameter (mm) | 3.18mm |
| Flute Length (Inch) | 13/16" |
| Flute Length (Decimal Inch) | 0.8125" |
| Flute Length (mm) | 20.64mm |
| Overall Length (Inch) | 2-1/4" |
| Overall Length (Decimal Inch) | 2.2500" |
| Overall Length (mm) | 57.15mm |
| Point Length (Decimal Inch) | 0.0206" |
| Point Length (mm) | 0.52mm |
| Number of Flutes | 2 |
| Point Angle | 135 Degree |
| Helix Angle | 30 Degree |
| Series | CDRA06 |
| Shank Tolerance | h6 |
| Coolant Through | No |
| Coating | TiAlN |
| Material | Premium HSS-PM |
| Hole Tolerance | h7 |
| Application | P,S |
| Cutting Direction | Right |
| Length Type | Stub Length |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Drill Bit Size (Inch):
1/10"
Drill Bit Size (Decimal Inch):
0.0995"
Drill Bit Size (mm):
2.53mm
Drill Bit Size (Wire):
#39
Flute Length (Inch):
13/16"
Flute Length (Decimal Inch):
0.8125"
Flute Length (mm):
20.64mm
Drill Point Angle:
135 Degree
Material:
Premium HSS-PM
Finish/Coating:
TiAlN
Coolant Through:
No
