Product Specifications

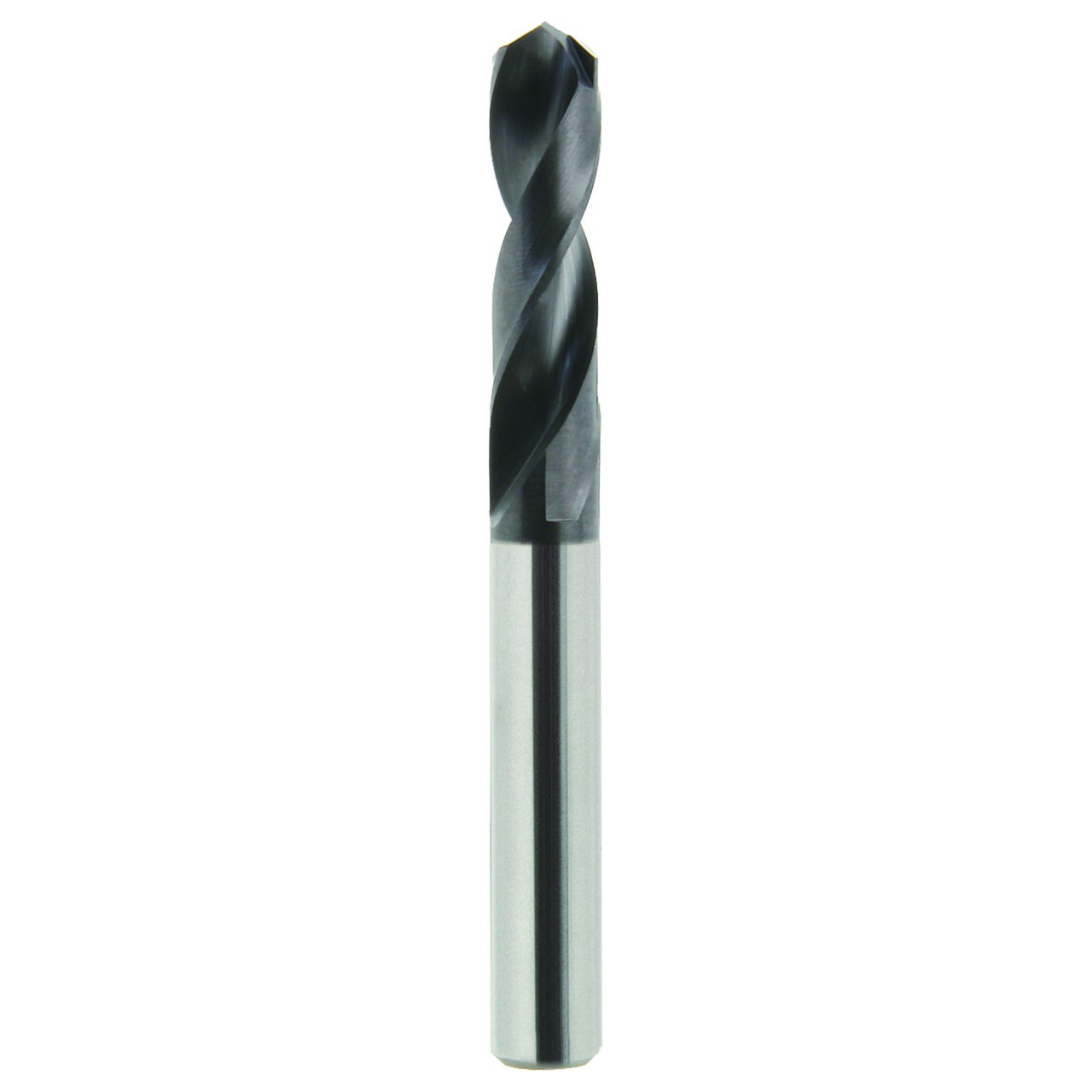

| Manufacturer Part Number | M16042 |
| Diameter (Wire) | #42 |
| Diameter (Inch) | 3/32" |
| Diameter (Decimal Inch) | 0.0935" |
| Diameter (mm) | 2.37mm |
| Shank Diameter (Inch) | 1/8" |
| Shank Diameter (Decimal Inch) | 0.1250" |
| Shank Diameter (mm) | 3.18mm |
| Flute Length (Inch) | 3/4" |
| Flute Length (Decimal Inch) | 0.7500" |
| Flute Length (mm) | 19.05mm |
| Overall Length (Inch) | 2" |
| Overall Length (Decimal Inch) | 2.0000" |
| Overall Length (mm) | 50.80mm |
| Point Length (Decimal Inch) | 0.0194" |
| Point Length (mm) | 0.49mm |
| Number of Flutes | 2 |
| Point Angle | 135 Degree |
| Helix Angle | 30 Degree |
| Series | CDRA06 |
| Shank Tolerance | h6 |
| Coolant Through | No |
| Coating | TiAlN |
| Material | Premium HSS-PM |
| Hole Tolerance | h7 |
| Application | P,S |
| Cutting Direction | Right |
| Length Type | Stub Length |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Drill Bit Size (Inch):
3/32"
Drill Bit Size (Decimal Inch):
0.0935"
Drill Bit Size (mm):
2.37mm
Drill Bit Size (Wire):
#42
Flute Length (Inch):
3/4"
Flute Length (Decimal Inch):
0.7500"
Flute Length (mm):
19.05mm
Drill Point Angle:
135 Degree
Material:
Premium HSS-PM
Finish/Coating:
TiAlN
Coolant Through:
No
interval quantity:
1
