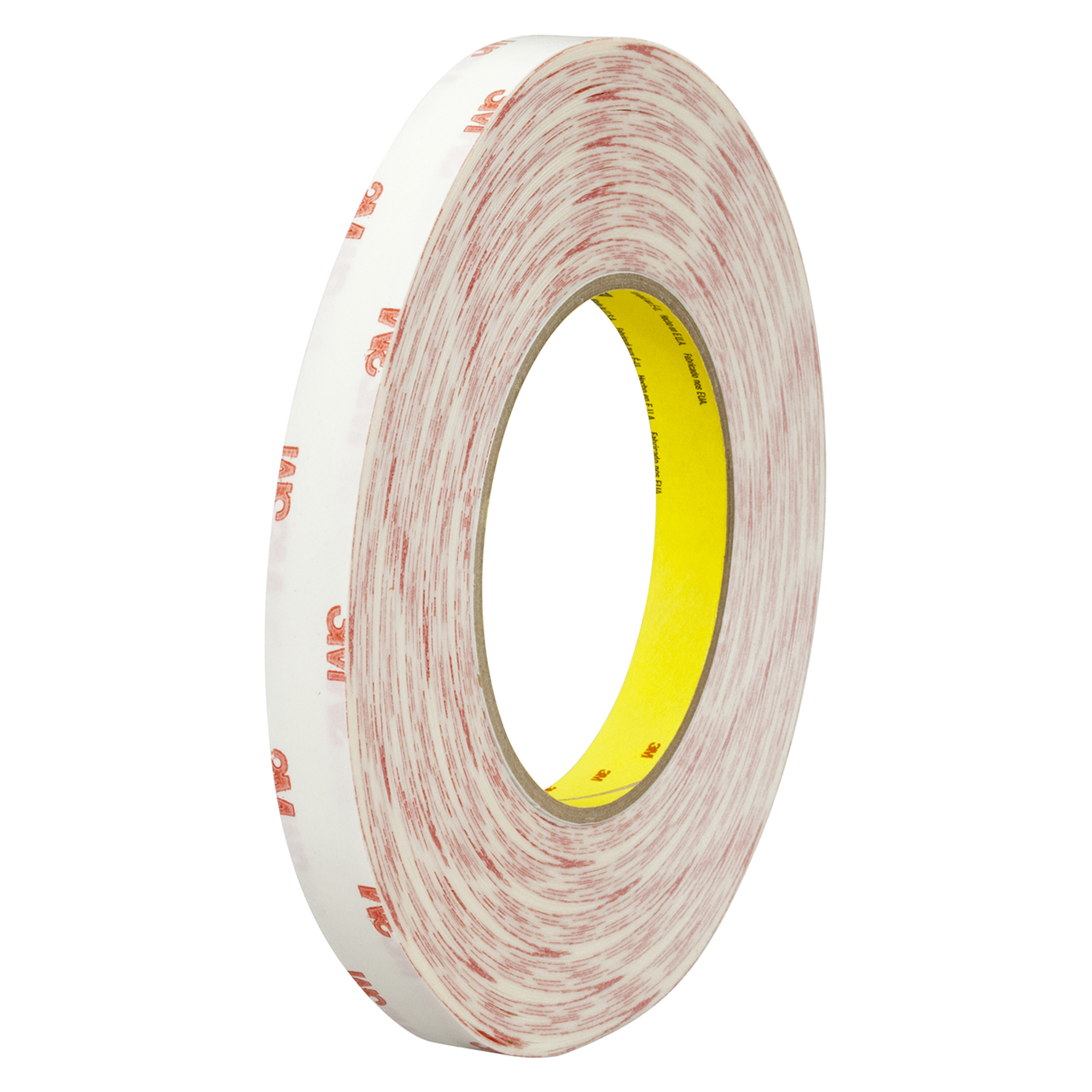

3M double coated tissue tape 9456 is a high tack acrylic adhesive with good adhesion to many plastics and other high surface energy (HSE) materials. It can be used for end-tabbing, bonding fabric to rigid cardboard, attaching foam to plastics and closing chipboard mailers.
Light Carrier, High Tack- The 3M Double coated tissue tape 9456 is a 5.0 mil tape with a 340 high tack acrylic adhesive that delivers a good bond for attaching foam to plastics and other substrates. This tape also has a tissue carrier for dimensional stability and improved handling, while still maintaining the flexibility of a free film adhesive. The tissue carrier is on a 3.2 mil 55-lb. densified Kraft DK paper liner. Use this tape in a variety of applications, especially those requiring adhesion to high surface energy (HSE) materials.
- This product uses Adhesive 340, which delivers a combination of high initial adhesion, good shear strength and holding power when applied to a wide variety of materials, including plastics and foams. Additionally, the 340 adhesive in 3M double coated tissue tape 9456 provides excellent chemical and thermal resistance and can be used in a wide range of temperatures and demanding work conditions. Use this tape in temperatures ranging from -40°F (-40°C) to 150°F (66°C). Collectively, these features make this tape an excellent option for a number of applications across many industries, including: paper, converter solutions, automotive, medical, general industrial, retail, print, point of purchase and packaging.
- End-tabbing
- Bonding fabric to rigid cardboard
- Attaching foam to plastics
- Closing chipboard mailers
- Joining and bonding in general industrial applications
- 5 mil double coated tape with tissue carrier adds dimensional stability for handling
- Good adhesion to high surface energy (HSE) materials
- Good temperature, chemical and humidity resistance
- Range of uses-joining and bonding in general industrial applications
- 55# densified kraft (DK) paper liner is compatible with rotary die cutting
Product Specifications
Manufacturer Part Number | 7000123780 |
Adhesive Type | Adhesive 340 |
Indoor/Outdoor | Indoor/Outdoor |
Overall Length | 72.000yd |
Overall Width (Decimal Inch) | 1.000" |
Primary Liner | 55# Densified Kraft Paper (DK) |
Primary Liner Thickness (mm) | 0.09mm |
Product Color | Transparent |
Product Number | 9456 |
Product Type | Double Sided Tape |

Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
3M
Adhesive Type:
Adhesive 340
Color:
Transparent
Primary Liner Thickness (mm):
0.09mm
Overall Width (Inch):
1"
Overall Width (Decimal Inch):
1.0000"
Overall Width (mm):
25.40mm
Overall Length (yd):
72.000yd
Overall Length (mm):
65.83mm
