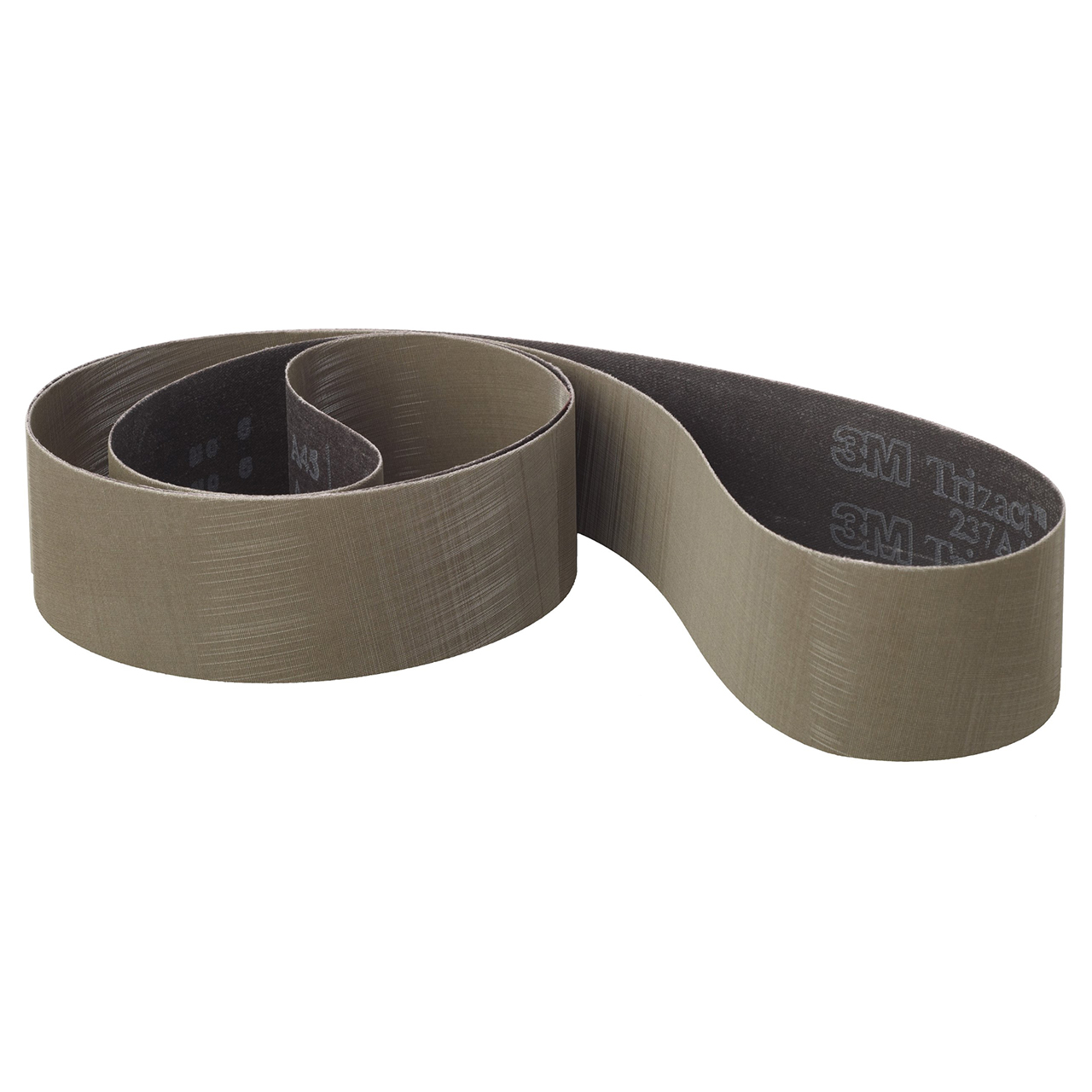

3M 7010536189 | 237AA x Non Pertinent Grit x 273.000" OAL Aluminum Oxide Cloth Belt

$80.34
Ships:
From Manufacturer
Brand:
3M
Material:
Aluminum Oxide
Belt Width (Inch):
4"
Belt Width (Decimal Inch):
4.0000"
Belt Width (mm):
101.60mm
Overall Length (Inch):
273"
Overall Length (Decimal Inch):
273.0000"
Overall Length (mm):
6934.20mm
interval quantity:
50
Ships:
From Manufacturer
SKU:
45032052
UPC:
51119203325
Weight:
0.12 LBS
Minimum Purchase:
50 units
Shipping:
Free Shipping

3M Trizact cloth belt 237AA uses proprietary microreplication technology by 3M where micron-graded aluminum oxide particles are formed into tiny pyramids of abrasive mineral and then coated on an X-weight cloth backing. As these pyramids wear, fresh, sharp mineral is continually exposed to produce a consistent cut and a predictable, fine finish.

Built For Dimensioning and Scratch Refinement
  • The abrasive and resin structure for the 3M Trizact cloth belt 237AA is formulated to break down under medium pressure and keep fresh, sharp mineral cutting to provide consistent finishes on hard metals such as carbon and stainless steel. This belt also features a grinding aid that helps prevent heat buildup, warping and discoloration. The belt is constructed on an X-weight, durable cloth backing that helps provide control, conformability, and effective medium-pressure grinding. The resin bonded abrasive gives you greater heat resistance and helps prevent delamination.
Runs Smooth, Finishes Consistently
  • The belt uses a film media splice, a strong secure bond joining the belt ends, consisting of a thin film-joining media that minimizes "chatter marks," ensures a smooth running belt, and consistent finishing results. When compared to conventional abrasive products, proprietary Trizact abrasives produce a finer finish, achieve results faster, and last longer.
Ideal for Robotic Finishing and Polishing
  • Robotic metal polishing demands the most consistent, refined cut and long abrasive life. 3M Trizact abrasives can consistently deliver near-mirror finishes while also delivering the abrasive life that helps reduce changeouts and downtime in robotic cells. This helps maximize the efficiency of the cell, allowing you to produce more parts per belt.
The Science of Flawless Finishes
  • Unlike conventional abrasives, 3M Trizact belts start sharp and stay sharp, resulting in more predictable finishes and improved, consistent quality. 3M Trizact belts can last up to five times longer than conventional belts and provide precise finish control such that operators can reduce grade sequences, requiring fewer process steps and fewer abrasive products. Three-dimensional structures uniformly distributed over the entire surface of 3M Trizact abrasives ensure consistent performance and eliminate part to part variation.

Features:

  • Self-sharpening pyramids start sharp, stay sharp, and run cooler than conventional abrasives
  • Flexible backing for consistent finish over contours
  • Three-dimensional design enables very consistent finishes throughout the abrasive life in robotic applications
  • For intermediate finishing and fine polishing prior to plating or buffing
  • Ideal for intermediate finishing and fine polishing prior to plating or buffing
  • Produces finer finishes than conventional electrostatically coated abrasives

Product Specifications
Manufacturer Part Number7010536189
Overall Length (Inch)273.0"
Overall Length (mm)6934.2mm
Overall Width (Inch)4.0"
Overall Width (mm)101.6mm
Abrasive MaterialAluminum Oxide
ApplicationGrinding, Finishing, Sanding, Polishing
Backing WeightX Weight
Coat TypeClosed Coat
Color FamilyGray
Micron GradeA100
Splice TypeFilm-Lok
Product FormBelt
Product Number237AA
