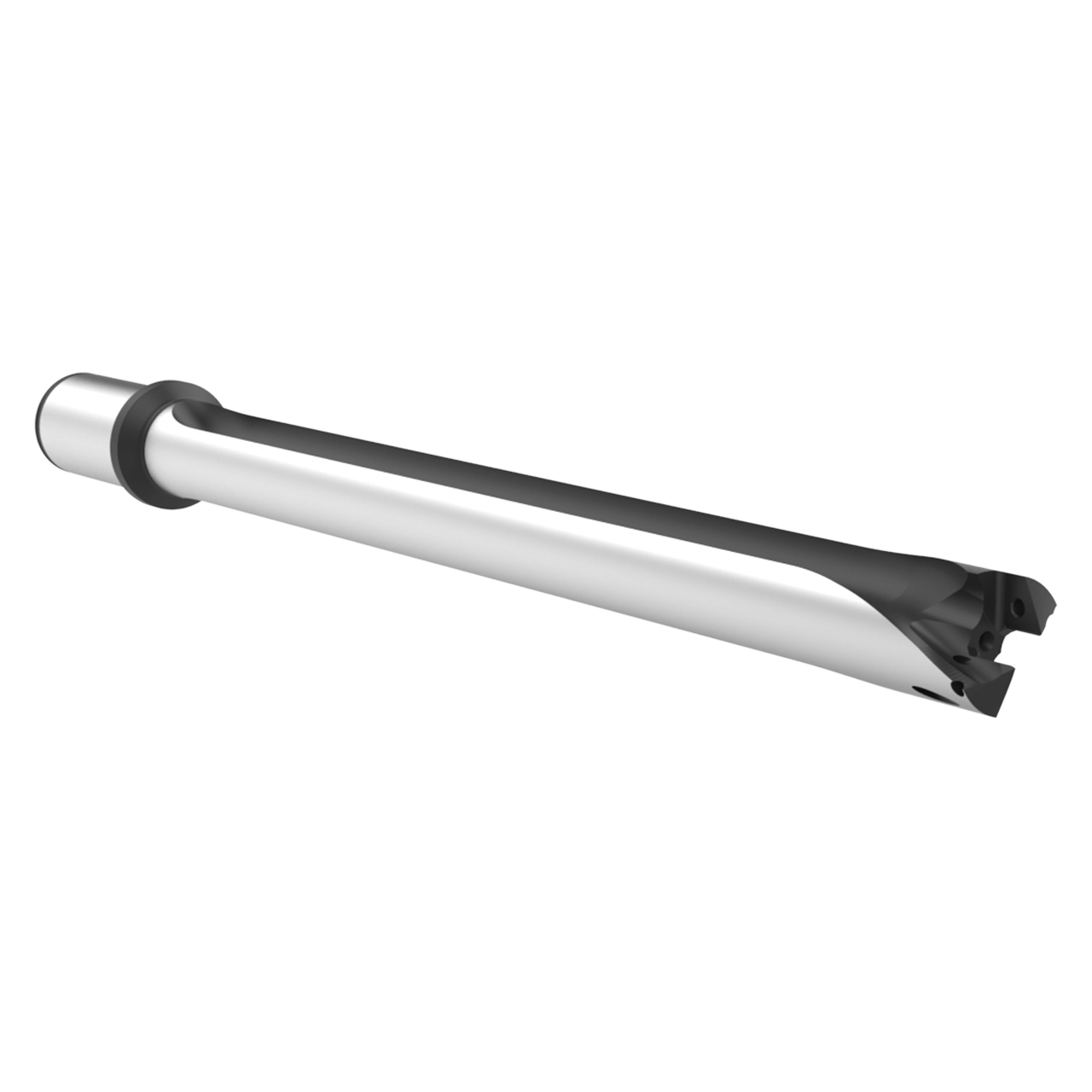

The XT Pro holders have been redesigned to provide enhanced productivity and increased effectiveness of the XT Pro inserts.
Features:
- The XT Pro holder features an increased flute area for chip evacuation
- The holder also has additional coolant to the cutting zone to increase insert life and drill stability
Product Specifications
| # MFG | HXT1029S-125C |
| Body Length (Inch) | 14.199" |
| Coolant Inlet Style Rear | TSC |
| Deep Hole | Yes |
| Drill Depth (Inch) | 12 - 19/32" |
| Flat | No |
| Length Type | 10xD |
| Maximum Diameter (Inch) | 1.2597" |
| Maximum Diameter (mm) | 31.99mm |
| Minimum Diameter (Inch) | 1.1417" |
| Minimum Diameter (mm) | 29mm |
| Overall Length (Inch) | 16 - 19/32" |
| Series | 29 |
| Shank Diameter (Inch) | 1-1/4" |
| Shank Length (Inch) | 2-9/32" |
| Shank type | Flanged |
| Tool Reference Length (Decimal Inch) | 14-5/16" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Allied Machine and Engineering
Series:
29
Minimum Drill Diameter (Inch):
1-9/64"
Minimum Drill Diameter (Decimal Inch):
1.1417"
Minimum Drill Diameter (mm):
29.00mm
Maximum Drill Diameter (Inch):
1-17/64"
Maximum Drill Diameter (Decimal Inch):
1.2597"
Maximum Drill Diameter (mm):
31.99mm
Shank Type:
Flanged
Shank Diameter (Inch):
1-1/4"
Shank Diameter (Decimal Inch):
1.2500"
Shank Diameter (mm):
31.75mm
Overall Length (Inch):
16-19/32"
Overall Length (Decimal Inch):
16.5900"
Overall Length (mm):
421.38mm
Flute Type:
Straight
interval quantity:
1
