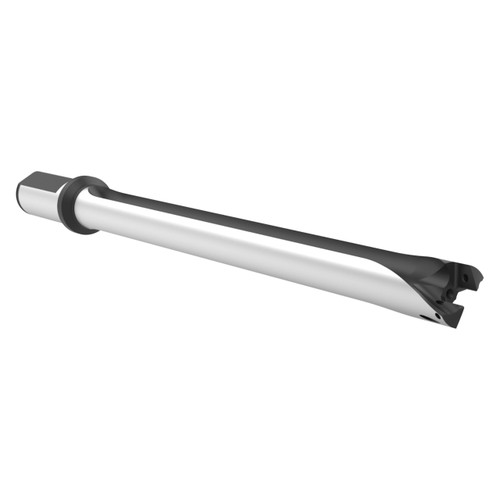

Allied Machine and Engineering HXT1029S-125F | 29.00mm Diameter x 1-1/4" Shank 10xD Flanged 29 Series Indexable Spade Drill

Allied Machine and Engineering HXT1029S-125F | 29.00mm Diameter x 1-1/4" Shank 10xD Flanged 29 Series Indexable Spade Drill

Name: Allied Machine and Engineering HXT1029S-125F | 29.00mm Diameter x 1-1/4" Shank 10xD Flanged 29 Series Indexable Spade Drill
Brand: Allied Machine and Engineering
SKU: 23035664
Price: 611.0 USD
Availability: InStock

SKU: 23035664 Weight: 3.34 LBS Minimum Purchase: 1 unit

UPC:

$650.00 $611.00

(You save $39.00)

Total Price: $611.00

Quantity:

Shipping: Free Shipping

About This Item

The XT Pro holders have been redesigned to provide enhanced productivity and increased effectiveness of the XT Pro inserts.

Features:

The XT Pro holder features an increased flute area for chip evacuation
The holder also has additional coolant to the cutting zone to increase insert life and drill stability

Product Specifications

# MFG	HXT1029S-125F
Body Length (Inch)	14.199"
Coolant Inlet Style Rear	TSC
Deep Hole	Yes
Drill Depth (Inch)	12 - 19/32"
Flat	Yes
Length Type	10xD
Maximum Diameter (Inch)	1.2597"
Maximum Diameter (mm)	31.99mm
Minimum Diameter (Inch)	1.1417"
Minimum Diameter (mm)	29mm
Overall Length (Inch)	16 - 19/32"
Series	29
Shank Diameter (Inch)	1-1/4"
Shank Length (Inch)	2-9/32"
Shank type	Flanged
Tool Reference Length (Decimal Inch)	14-5/16"
