The XT Pro holders have been redesigned to provide enhanced productivity and increased effectiveness of the XT Pro inserts.
Features:

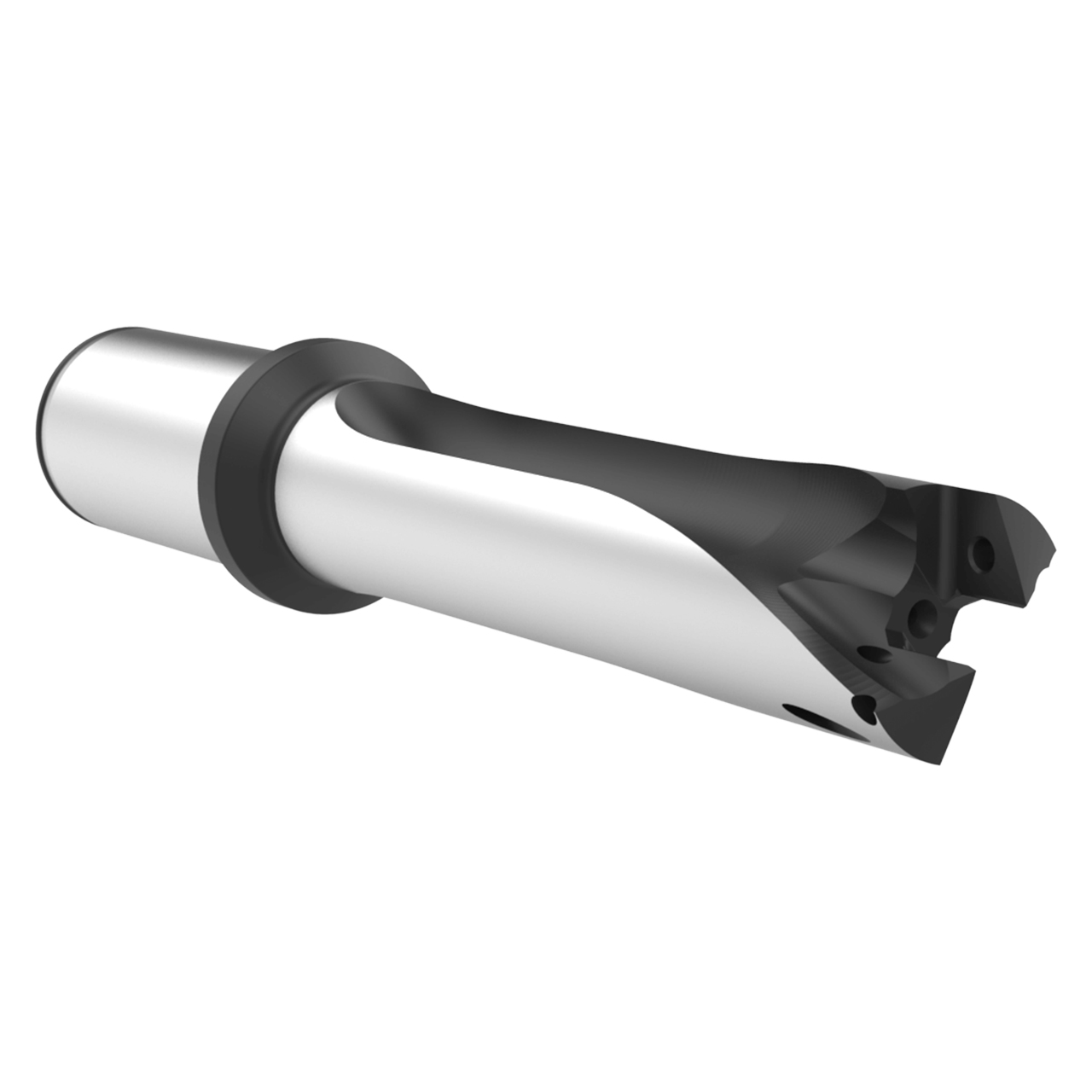

| # MFG | HXT0329S-125C |
| Body Length (Inch) | 5.382" |
| Coolant Inlet Style Rear | TSC |
| Deep Hole | No |
| Drill Depth (Inch) | 3-25/32" |
| Flat | No |
| Length Type | 3xD |
| Maximum Diameter (Inch) | 1.2597" |
| Maximum Diameter (mm) | 31.99mm |
| Minimum Diameter (Inch) | 1.1417" |
| Minimum Diameter (mm) | 29mm |
| Overall Length (Inch) | 7 - 25/32" |
| Series | 29 |
| Shank Diameter (Inch) | 1-1/4" |
| Shank Length (Inch) | 2-9/32" |
| Shank type | Flanged |
| Tool Reference Length (Decimal Inch) | 5-1/2" |
