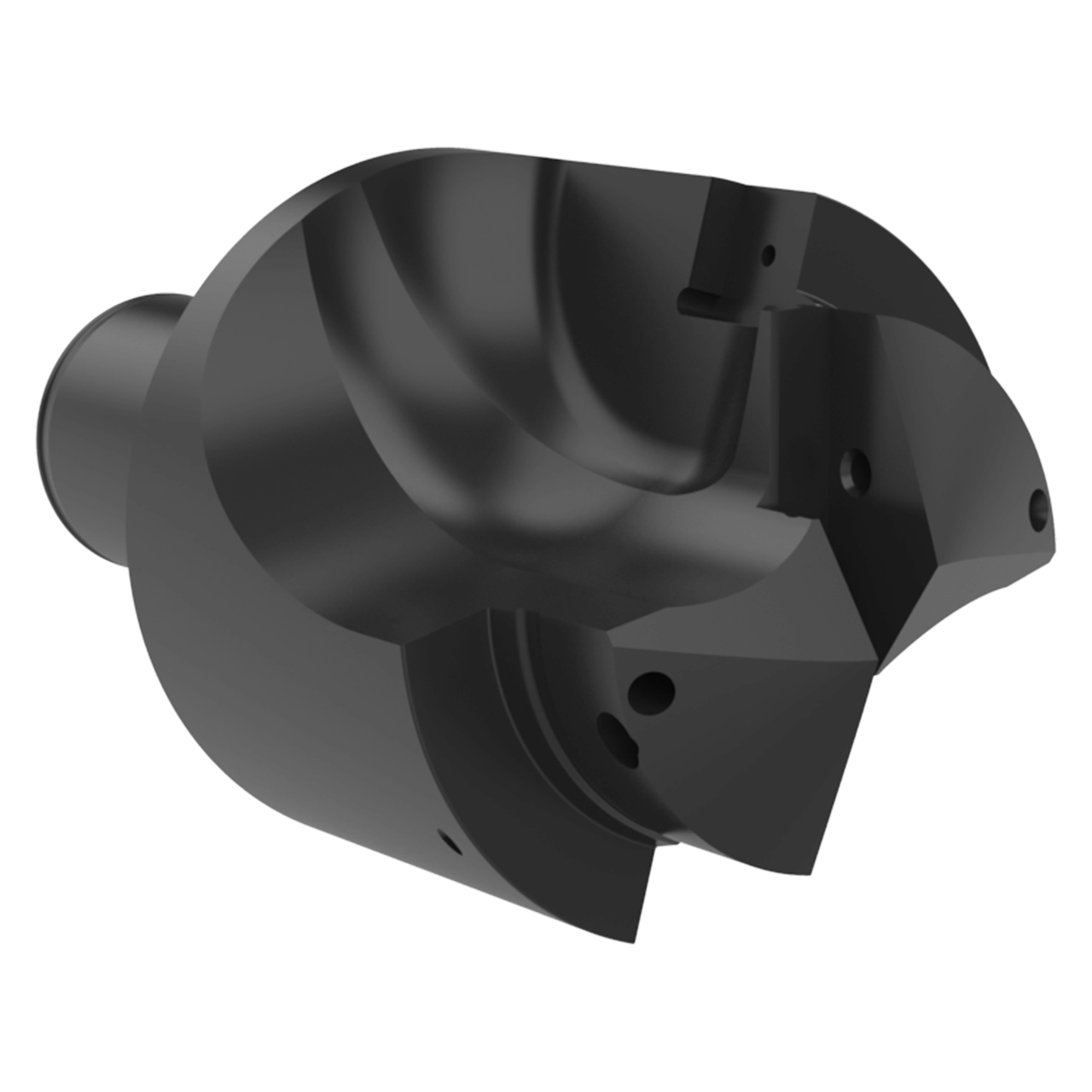

Single Operation Port Hole Drilling Solutions. Allied's revolutionary port hole drilling system combines two manufacturing functions. The patent-pending design provides excellent repeatability and surface finish while eliminating lost production time due.
Features:
- Produced to strict manufacturing tolerances
- Drill and finish forms port in one operation
Product Specifications
| # MFG | J1926-324-32FM |
| Pilot Diameter (Inch) | 2.421" |
| Pilot Diameter (mm) | 61.5mm |
| Spotface Diameter (Inch) | 3.47" |
| Spotface Diameter (mm) | 88.1mm |
| Shank Diameter (Inch) | 1.26" |
| Shank Diameter (mm) | 32mm |
| Seal Angle Diameter (Inch) | 2.589" |
| Seal Angle Diameter (mm) | 65.8mm |
| Overall Length (Inch) | 6.39" |
| Overall Length (mm) | 162.3mm |
| Seal Angle Length (Inch) | 0.138" |
| Seal Angle Length (mm) | 3.5mm |
| Pilot Length (Inch) | 0.906" |
| Pilot Length (mm) | 23mm |
| Shank Length (Inch) | 2.58" |
| Shank Length (mm) | 65.5mm |
| Spotface to Shoulder Length (Inch) | 2.393" |
| Spotface to Shoulder Length (mm) | 60.8mm |
| Seal Angle | 15 Degree |
| Series | 4 |
| Tube Size | -32 |
| Port Standard | SAE J-1926 |
| Port Thread Size | 2 1/2-12 UN-2B |
| Shank Type | Cylindrical |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Allied Machine and Engineering
Port Standard Designation:
SAE J-1926
Port Thread Size:
2 1/2-12 UN-2B
Tube Dash Number:
-32
Pilot Diameter (Inch):
2-27/64"
Pilot Diameter (Decimal Inch):
2.4210"
Pilot Diameter (mm):
61.50mm
Spotface Diameter (Inch):
3-15/32"
Spotface Diameter (Decimal Inch):
3.4700"
Spotface Diameter (mm):
88.10mm
Pilot Length (Inch):
29/32"
Pilot Length (Decimal Inch):
0.9060"
Pilot Length (mm):
23.00mm
