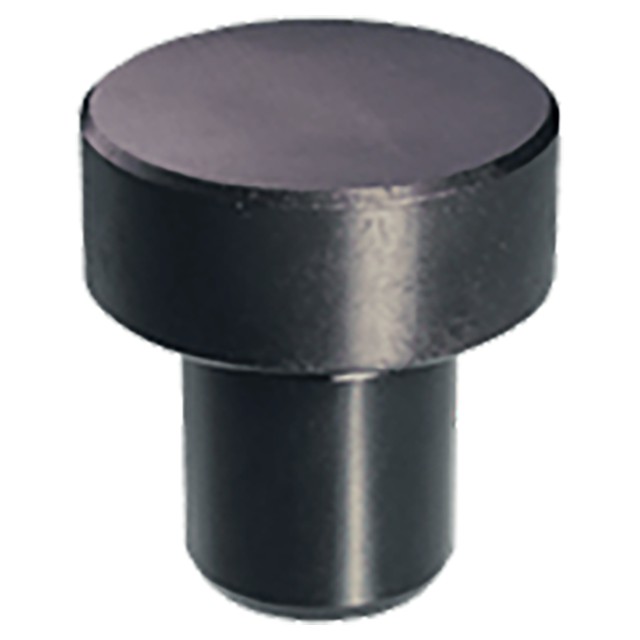

Rest Buttons
Precision height locator with a close-tolerance shank for installation in a reamed hole. Rest Buttons are extremely useful as supports, side locator pads, and jig feet. Made in USA.
Application Information
Material
| Steel | |||||
| Material | Heat Treat | Finish | DFARS | RoHS | |
| 1144 Steel | Heat Treated Rc 40-45 | Black Oxide | Yes | Yes | |
Parts Specification
| A Diameter Nominal (Inch) | A Diameter Actual (Inch) | B (Inch) | C Nominal (Inch) | C Actual (Inch) | D Diameter (Inch) |
| 5/8" | 0.6260" | 3/4" | 3/4" | 0.7500" | 1" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Diameter (Inch):
5/8"
Diameter (Decimal Inch):
0.6250"
Diameter (mm):
15.88mm
