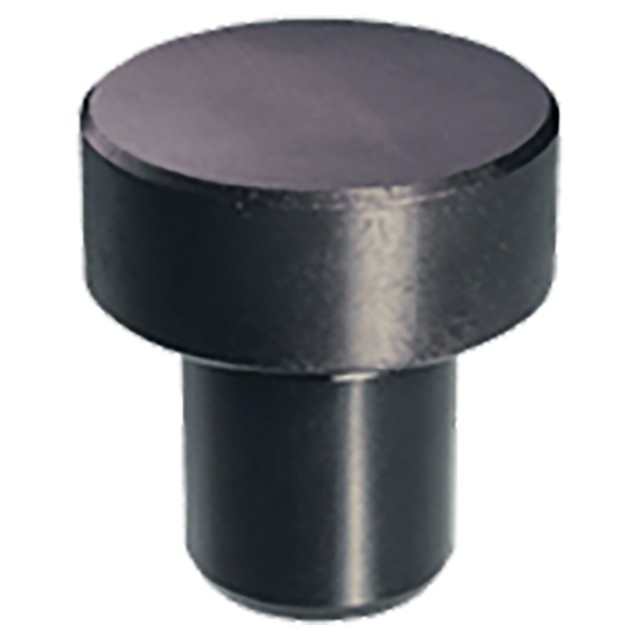

Precision height locator with a close-tolerance shank for installation in a reamed hole. Rest Buttons are extremely useful as supports, side locator pads, and jig feet. Made in USA.
| Steel | |||||
| Material | Heat Treat | Finish | DFARS | RoHS | |
| 1144 Steel | Heat Treated Rc 40-45 | Black Oxide | Yes | Yes | |
| A Diameter Nominal (Inch) | A Diameter Actual (Inch) | B (Inch) | C Nominal (Inch) | C Actual (Inch) | D Diameter (Inch) |
| 5/8" | 0.6260" | 3/4" | 3/8" | 0.3750" | 1" |
