Carr Lane CL-23-PFK-PACKOF2 | #10-32 Thread x 1-3/8" Diameter Fluted Knob - Tapped (Phenolic)

$5.78
Brand:
Carr Lane
Thread Size:
#10-32
Diameter (Inch):
1-3/8"
Diameter (Decimal Inch):
1.3800"
Diameter (mm):
34.93mm
SKU:
50035014
Weight:
1.23 LBS
Shipping:
Calculated at Checkout
Carr Lane CL-23-PFK-PACKOF2 | #10-32 Thread x 1-3/8" Diameter Fluted Knob - Tapped (Phenolic)

Product Information

Large easy-grip phenolic knob that is excellent for either fine-adjustment or high-torque applications. Molded-in brass insert provides superior thread strength. Choice of four knob sizes, with tapped-hole sizes from #10-32 to 5/8-11 (M6 to M12 in metric). Non-standard thread sizes, reamed holes, or molded-in studs, are available in quantities of 500 and above. Made in USA.

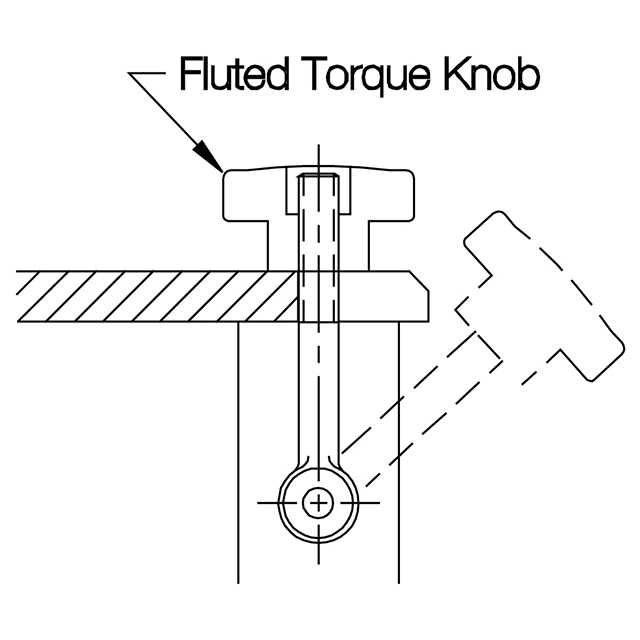

Application Information

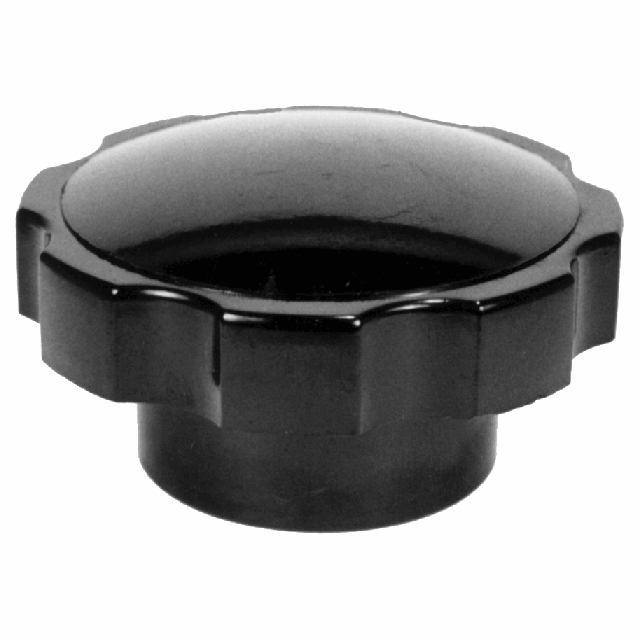

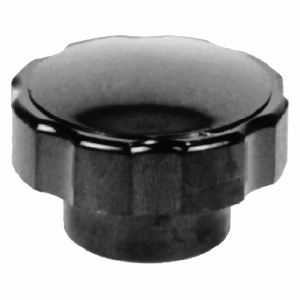

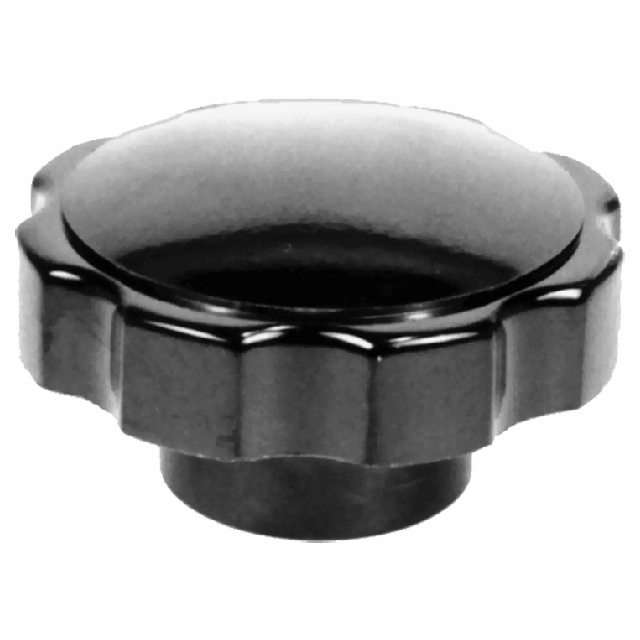

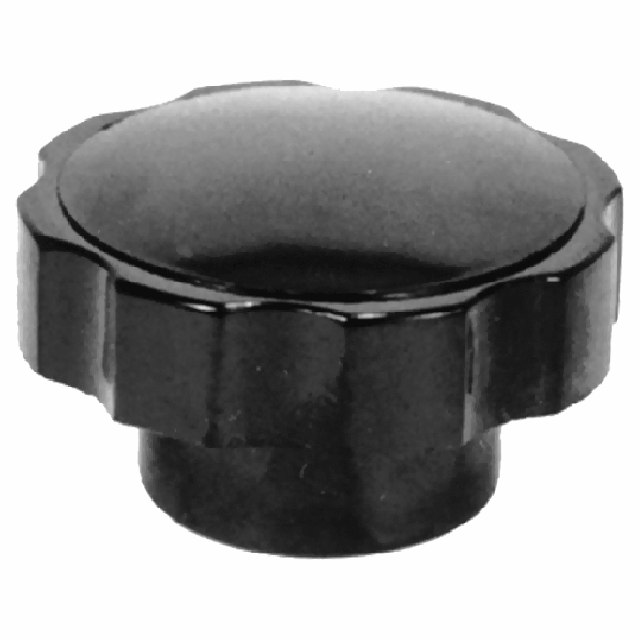

Available Sizes

1/2-135/8-11 3/8-161/2-13M12 1/4-205/16-183/8-16M8M10 #10-321/4-205/16-18M6

Material

ITEMMATERIALHEAT TREATFINISHDFARSRoHS
Fluted Knobs -Tapped (Phenolic)Black phenolic plastic (glossy smooth finish, extremely hard, electrical insulator, operating temperatures to 300 Degree, resistant to oils and most common chemicals)-Molded-in Brass Insert✔✔

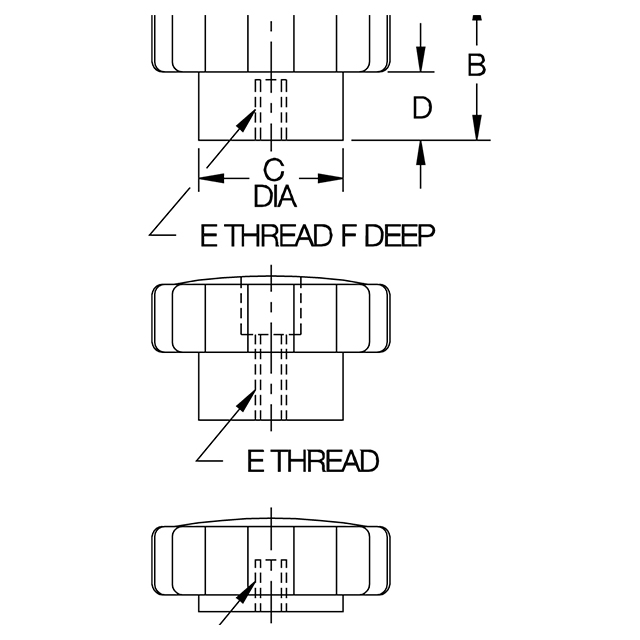

Parts Specification

Part NumberA DIABC DIADE THREADF THREAD DEPTH
CL-23-PFK-PACKOF21-3/827/3227/3225/64#10-325/16
