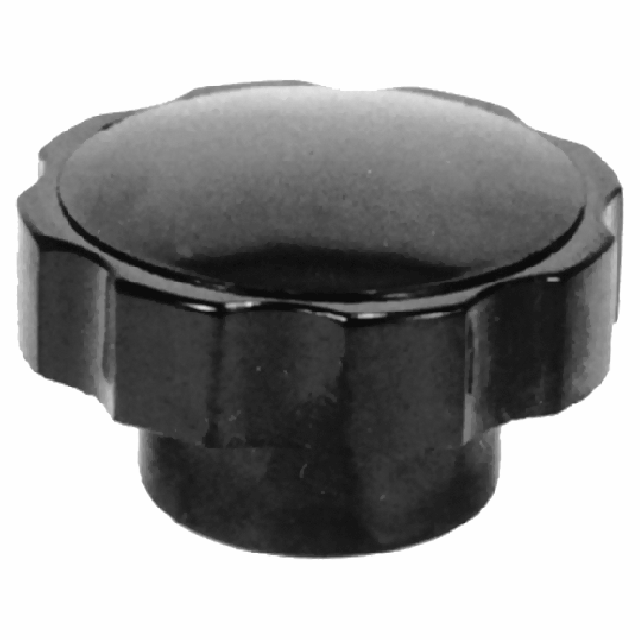

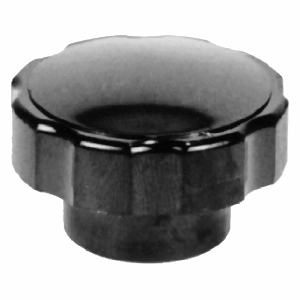

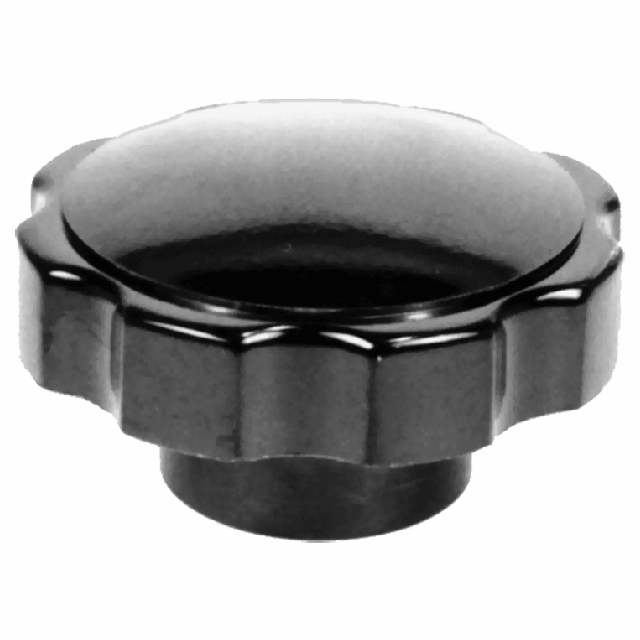

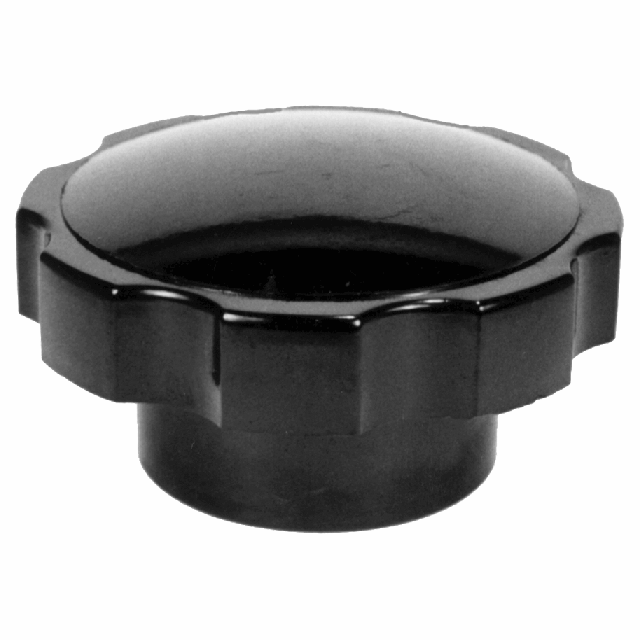

Large easy-grip phenolic knob that is excellent for either fine-adjustment or high-torque applications. Molded-in brass insert provides superior thread strength. Choice of four knob sizes, with tapped-hole sizes from #10-32 to 5/8-11 (M6 to M12 in metric). Non-standard thread sizes, reamed holes, or molded-in studs, are available in quantities of 500 and above. Made in USA.
1/2-135/8-11 3/8-161/2-13M12 1/4-205/16-183/8-16M8M10 #10-321/4-205/16-18M6
| ITEM | MATERIAL | HEAT TREAT | FINISH | DFARS | RoHS |
| Fluted Knobs -Tapped (Phenolic) | Black phenolic plastic (glossy smooth finish, extremely hard, electrical insulator, operating temperatures to 300 Degree, resistant to oils and most common chemicals) | - | Molded-in Brass Insert | ✔ | ✔ |

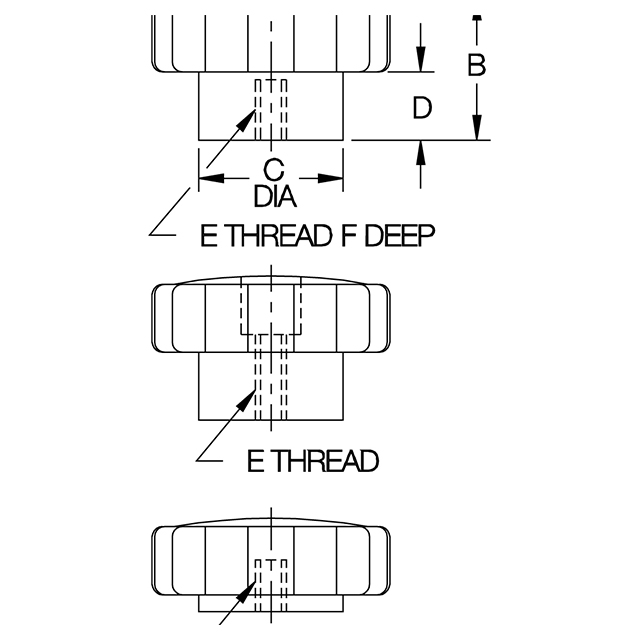

| Part Number | A DIA | B | C DIA | D | E THREAD | F THREAD DEPTH |
| CL-68-PFK-PACKOF2 | 2-3/8 | 1-5/16 | 1-1/4 | 5/8 | 1/2-13 | 5/8 |
