Swivel Screw Clamp
High-quality clamping screw that accepts a wide assortment of swivel feet. Socket head allows applying strong clamping force using a hex wrench. Made in USA.
Swivel Foot

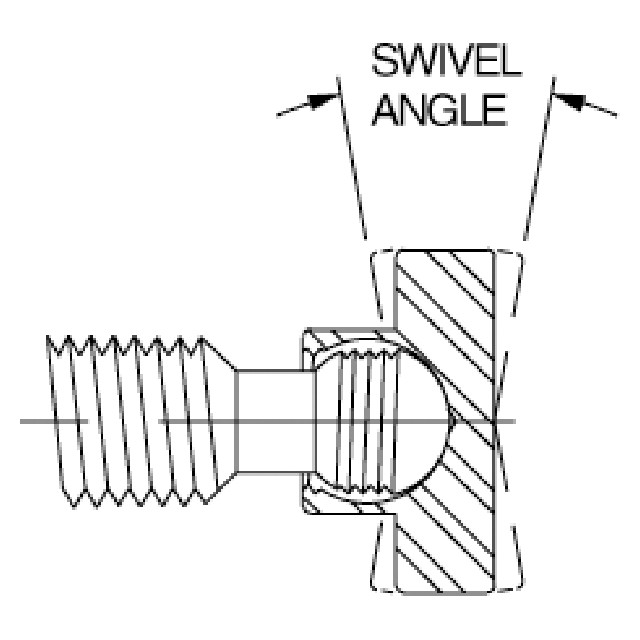

Swivel Head Screws use patented left-hand-thread swivel-foot system. The ball end of the body screws into the foot for easy installation and removal. Once the ball threads pass beyond the foot threads, the foot can rotate and pivot freely (20° total angle). Foot threads are left-hand to positively prevent accidental backout during use.
Design Considerations
For full hex-socket strength, the socket end of the body should be entirely inside its tapped hole during final tightening.
Material
| Steel, Zinc Plated | |||||
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Body | 1215 or 1144 Steel | Heat Treated | Zinc Plated Yellow Chromate | Yes | Yes |
| Steel Foot | 1215 Steel | - | Zinc Plated Yellow Chromate | Yes | Yes |
| Delrin foot | White Delrin 500 | - | - | Yes | Yes |
| Steel, Black Oxide Finish | |||||
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Body | 1215 or 1144 Steel | Heat Treated | Black Oxide | Yes | Yes |
| Steel Foot | 1215 Steel | - | Black Oxide | Yes | Yes |
| Delrin foot | White Delrin 500 | - | - | Yes | Yes |
| Stainless Steel | |||||
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Body and Stainless Foot | 300-Series Stainless Steel | Passivated | - | Yes | Yes |
| Delrin foot | White Delrin 500 | - | - | Yes | Yes |
Parts Specification

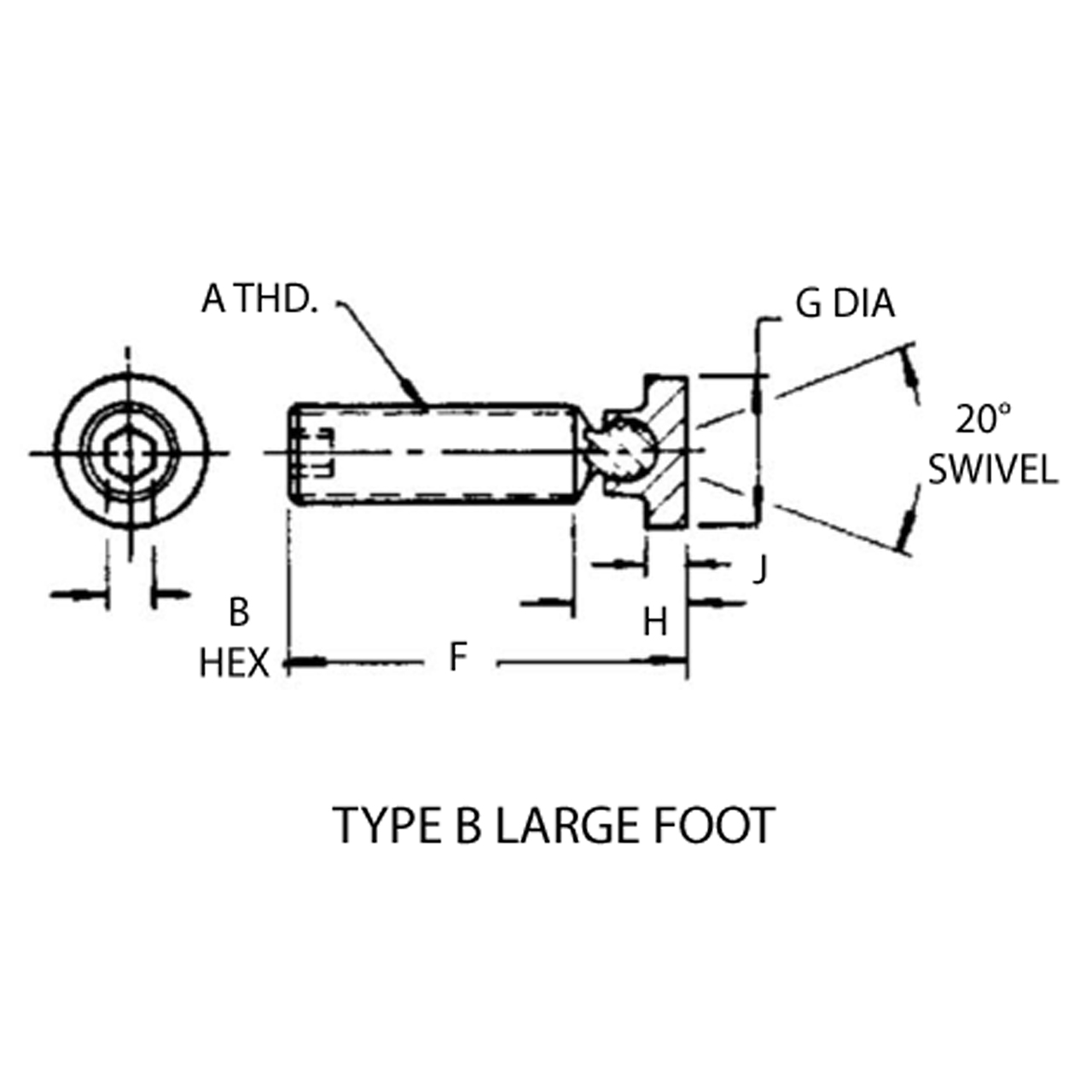

| A Thread (Inch) | B (Inch) | F (Inch) | G Diameter (Inch) | H (Inch) | J (Inch) |
| 3/8-16" | 3/16" | 2-1/8" | 9/16" | 5/8" | 3/16" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
