Detent Pins
Quick-release alignment pin with a solid shank and spring-loaded locking balls. The integral head provides exact grip-length tolerance. Locking balls hold the pin in place by spring force (not positive locking like a Ball Lock Pin). Simply push the pin to insert, and pull to remove. Made in USA.
Technical Information

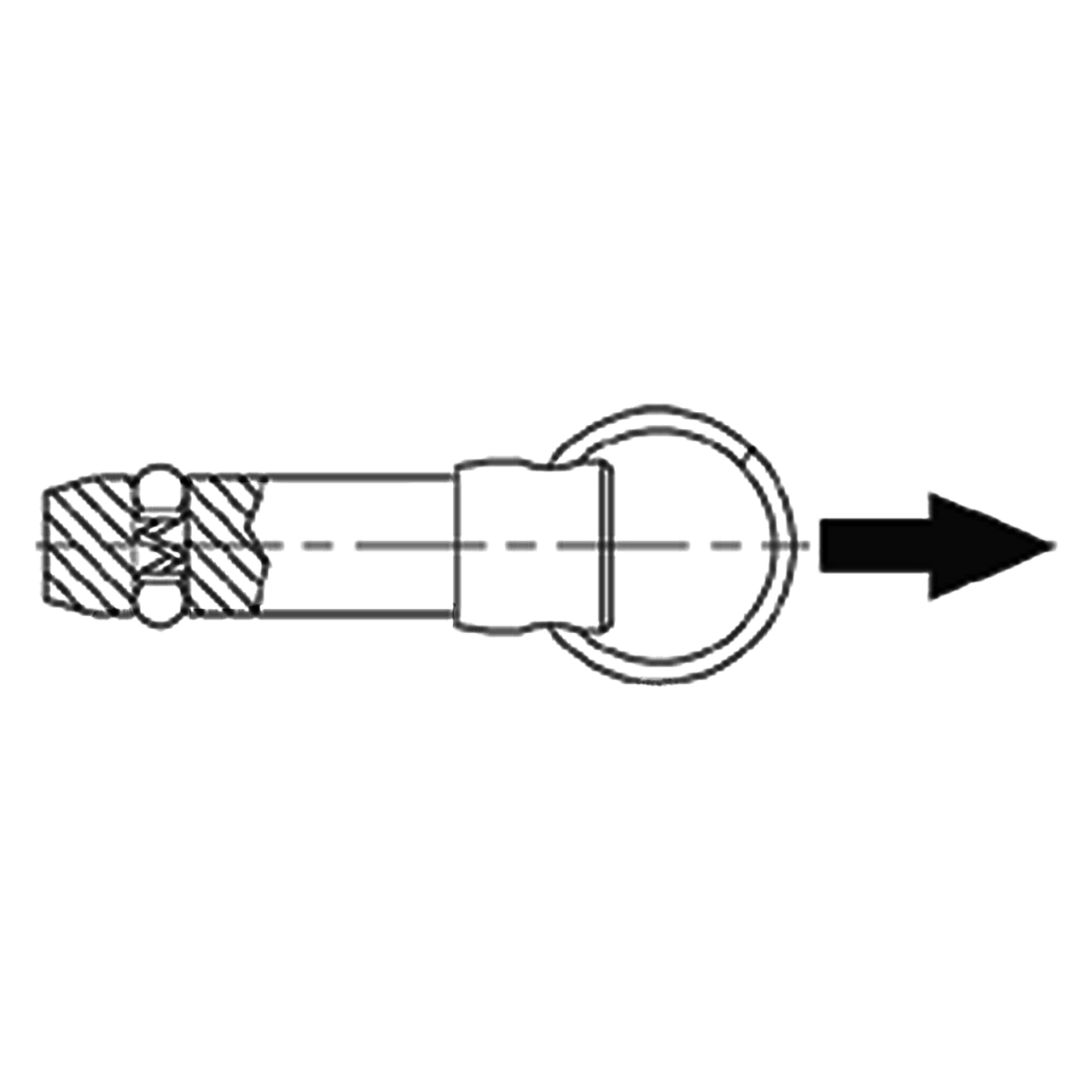

Locking balls hold the pin in place by spring force. Simply push the pin to insert, and pull to remove. 3/16"-diameter pins have only one locking ball instead of two due to their small size.
Material
Stainless Steel: Shank > 300-series stainless steel. Spring > 17-7PH or 302 stainless steel. Ring > 302 stainless steel. Balls > 440C stainless steel. DFARS and RoHS compliant.
Parts Specification
| A Diameter Nominal (Inch) | A Diameter Actual (Inch) | Grip Length (Inch) | B (Inch) | C (Inch) | D Diameter (Inch) | E Diameter (Inch) | F |
| 5/16" | 0.3105" | 2.50" | 0.360" | 0.359" | 0.438" | 1.00" | 0.56 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Diameter (Decimal Inch):
2.5000"
Length (Inch):
1"
Length (Decimal Inch):
2.5000"
Length (mm):
63.50mm
Diameter (Inch):
1"
Diameter (mm):
63.50mm
