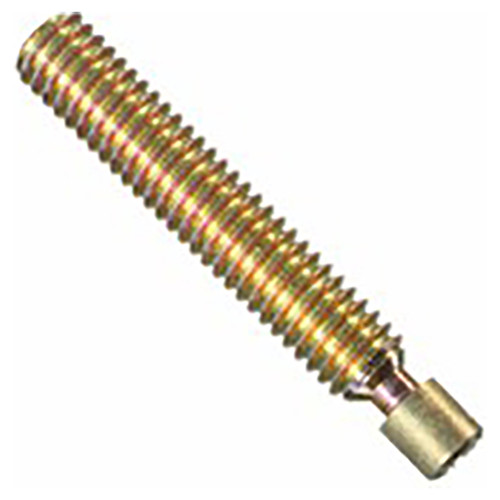

Carr Lane CL-9-SSC-BO | 3/8-16" Thread x 19/64" Diameter Swivel Screw Clamp

Swivel Screw Clamps

High-quality clamping screw that accepts a wide assortment of swivel feet. Made in USA.

Swivel Foot

Swivel Head Screws use the patented left-hand-thread swivel-foot system. The ball end of the body screws into the foot for easy installation and removal. Once the ball threads pass beyond the foot threads, the foot can rotate and pivot freely (20° total angle). Foot threads are left-hand to positively prevent accidental backout during use. Delrin feet are optional for types A and B. To order with a Delrin foot, add "N" to the part number.

Design Considerations

For full hex-socket strength, the socket end of the body should be entirely inside its tapped hole during final tightening.

Material

Parts Specification
