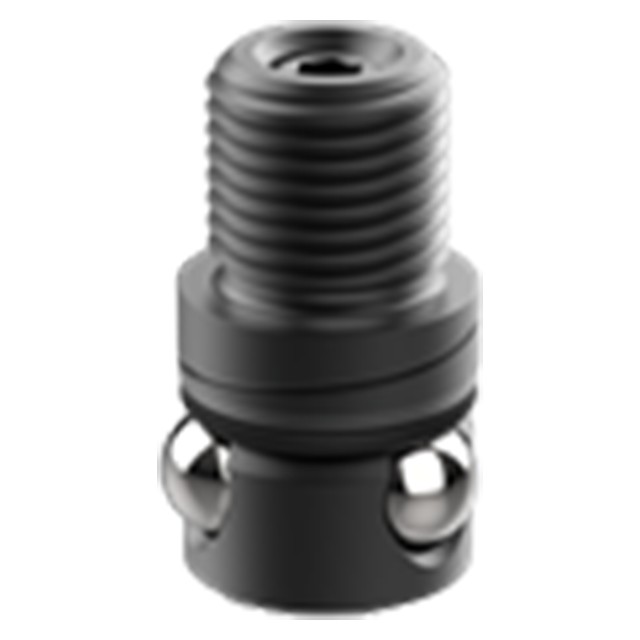

Carr Lane CLM-20-HCLC-1 | M18 X 2.5 Thread Headless Carr Lock Clamp

Headless Carr Lock Clamps

The Headless Carr Lock System allows accurately locating and clamping at the same time, with just the turn of a hex wrench. Ideal for mounting quick-change tooling on a subplate while taking minimal real estate on the top of your fixture. The Headless Carr Lock Clamp comes in two variants, primary (-1) and secondary (-2). The primary clamp is used to accurately locate your plate while the looser fit on the secondary clamp reduces binding. Made in USA.

Application Information

Application 1 (Round-Diamond Assembly): (1) Headless Carr Lock Clamp(1) Round Pin(1) Diamond Pin

Application 2 description (2HCLC Assembly): (2) Headless Carr Lock Clamps

Material

Parts Specification
