Classic, easy-to-grip cast iron clamping knob. Four-prong design provides a firm grip for applications requiring quick tightening and high torque. Choice of five knob sizes, each available blank, tapped, tapped through, or reamed. Made in USA.
Versions Available

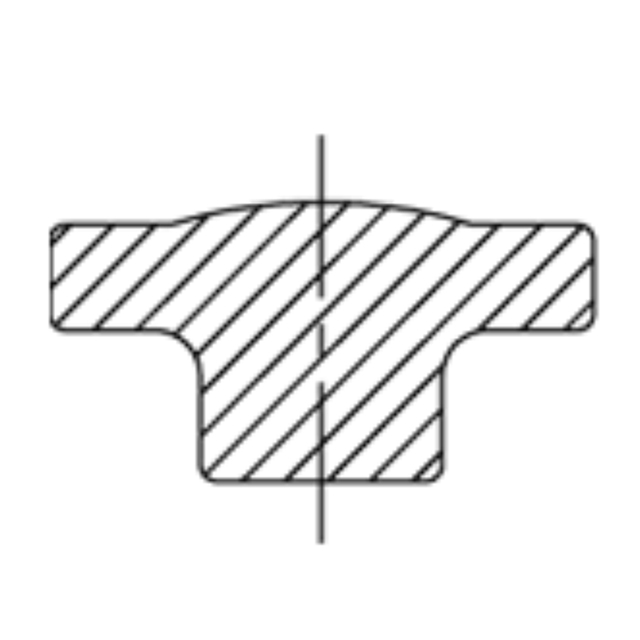

Blank

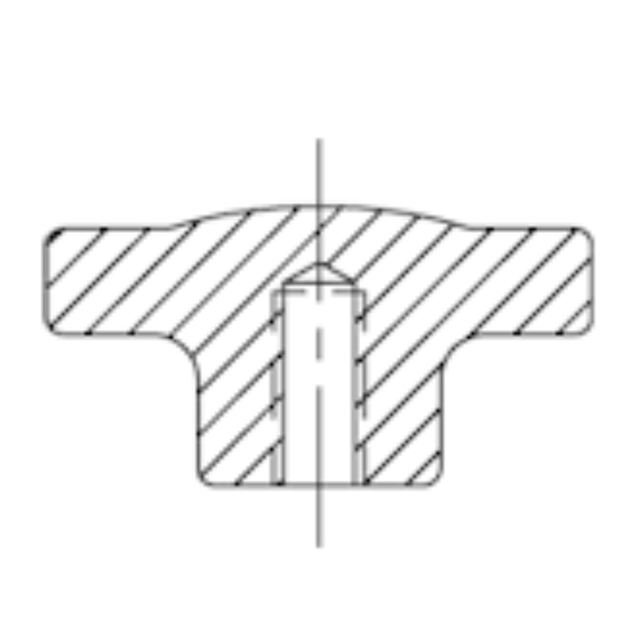

Tapped

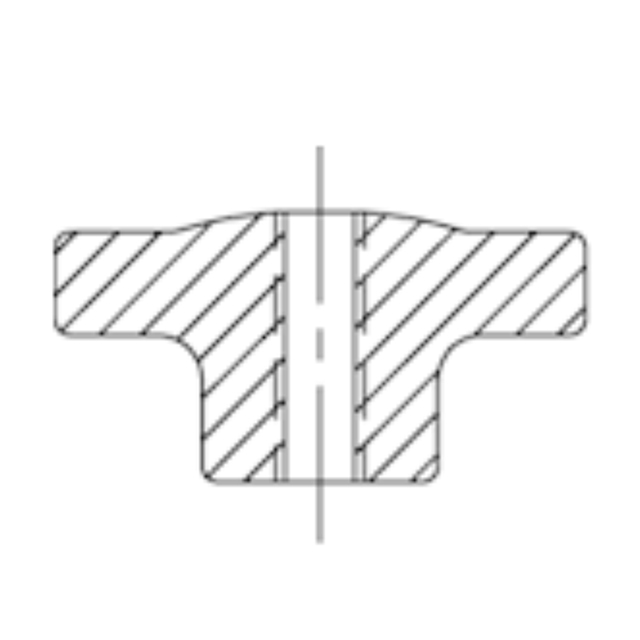

Tapped Through

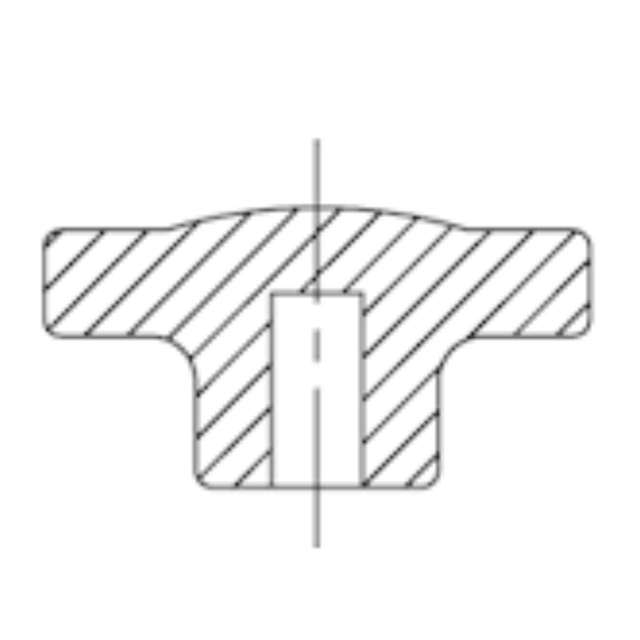

Reamed
Material
| ITEM | MATERIAL | HEAT TREAT | FINISH | DFARS | RoHS |
| Hand Knobs (Cast Iron) | Zinc Plated Clear Chromate | - | - | ✔ | ✔ |
Parts Specification

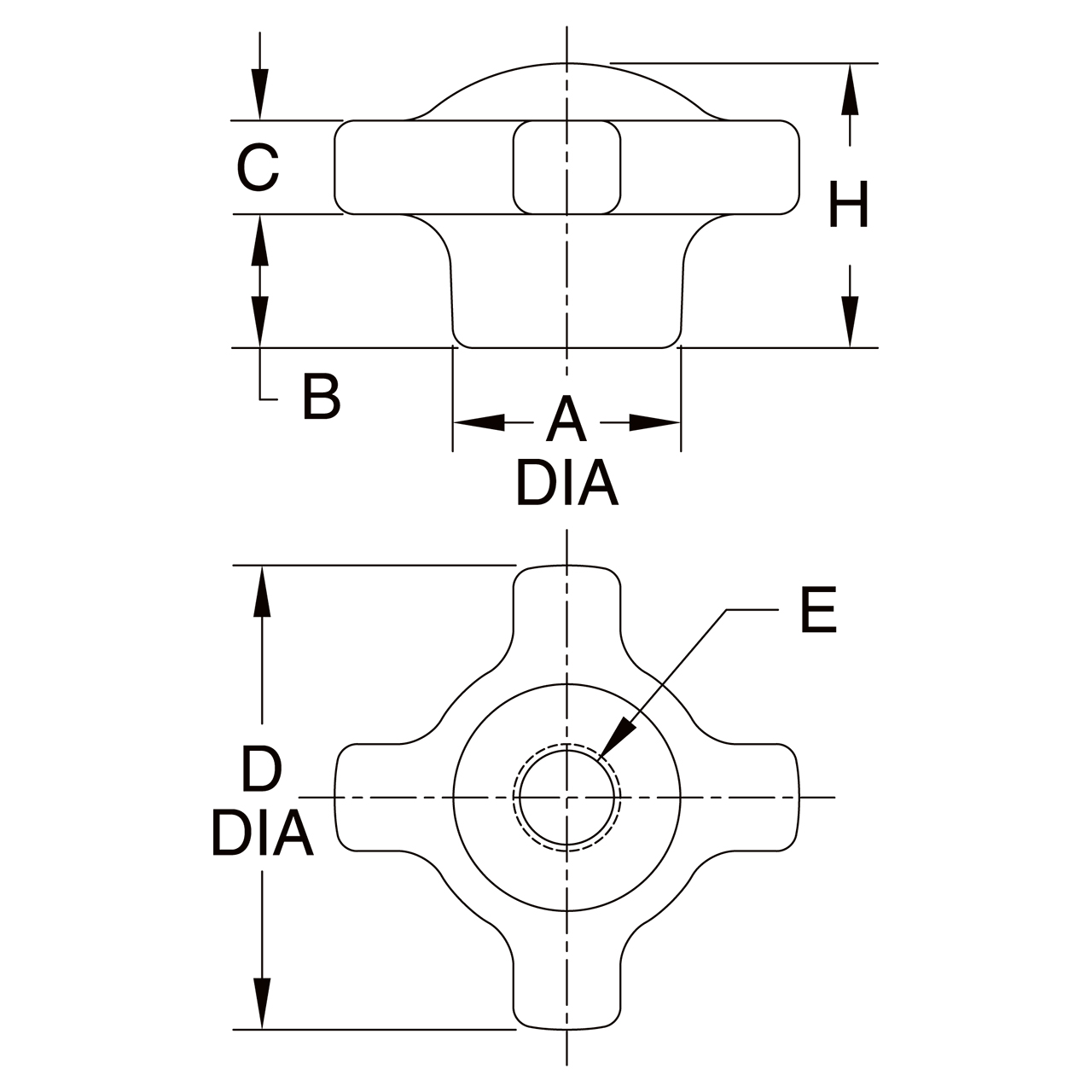

| D Diameter (mm) | A Diameter (mm) | B (mm) | C (mm) | H (mm) | E Thread | Thread Pitch (mm) | E Thread Depth ±1.6 (mm) |
| 64 mm | 29 mm | 25 mm | 13 mm | 42 mm | M12 | 1.75 mm | 32 mm |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Ships:
From Manufacturer
interval quantity:
1
