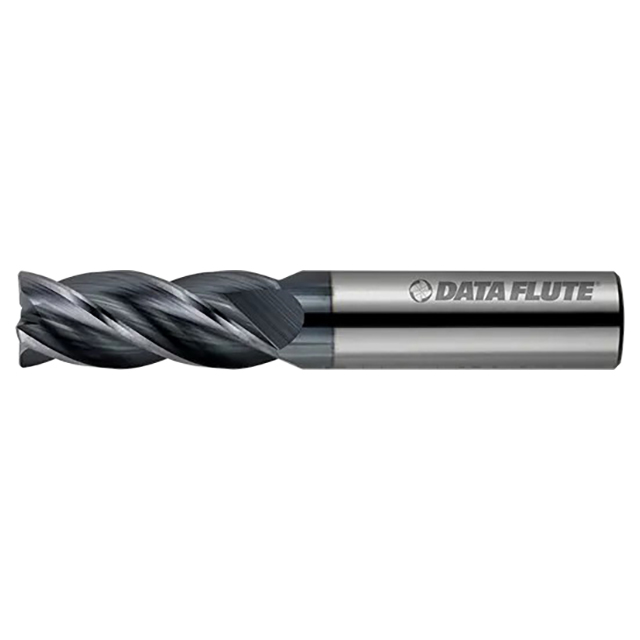

The SS 4 flute has the same proven geometries as the original, but with an additional flute for increased productivity. A standard corner radius protects the tool corner and enhances tool life in aggressive roughing applications. The SS series is offered in stub, standard, medium and reduced neck.
Features:
- Standard Corner Radius to Protect Corners
- Roughing and Finishing Capabilities
Product Specifications
| Manufacturer Part Number | SSM41000C4 |
| Diameter (mm) | 1.00mm |
| Shank Diameter (mm) | 1.00mm |
| Length of Cut (Decimal Inch) | 2.625" |
| Overall Length (Decimal Inch) | 6.000" |
| Radius (mm) | 0.03mm |
| Coating | C4 |
| Product Type | Corner Radius End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
DATA FLUTE
Diameter (mm):
1.00mm
Shank Diameter (mm):
1.00mm
Length of Cut (Decimal Inch):
2.6250"
Overall Length (Decimal Inch):
6.0000"
Radius (mm):
0.03mm
Finish/Coating:
C4
interval quantity:
1
