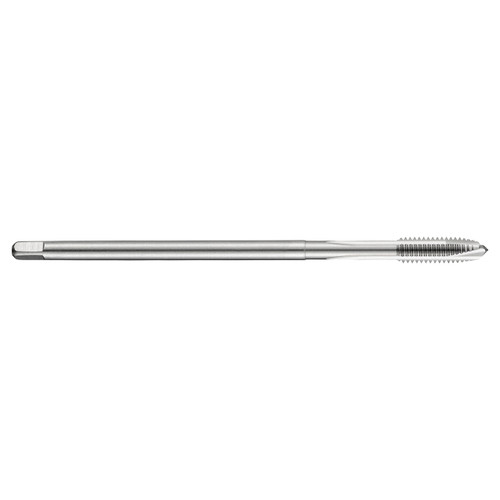

Dormer E606M16 | 0.4921" Diameter x 5.3937" OAL 3 Flute Bright Coated Spiral Point Tap

$175.50
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15023004
Weight:
4.83 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Long shank spiral point tap with chamfer form B with a 3.5-5xP plug lead, for ISO-Metric thread M16 with 2.00mm pitch and 6H class of fit, dimensions according to ISO 2283 standard with 12.5mm shank and 10.0mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel.


Product Specifications
Connection Diameter (Inch)0.4921"
Overall Length (Inch)5.3937"
Clamping Width (mm)10mm
No of Flutes3
Thread Pitch (mm)2mm
Clamping Length13
Thread Diameter Size16
Threading Length (mm)25mm
Material CodeHSS-E-PM
Thread Tolerance Class6H
Cutting DirectionRight Hand
CoatingBright
Tap Chamfer StyleB 3.5-5
Surface ColorBright Silver
Thread FormM-Metric coarse
